2: MODULE SPECIFICATIONS
2-36 « FC4A MICROSMART USER’S MANUAL »

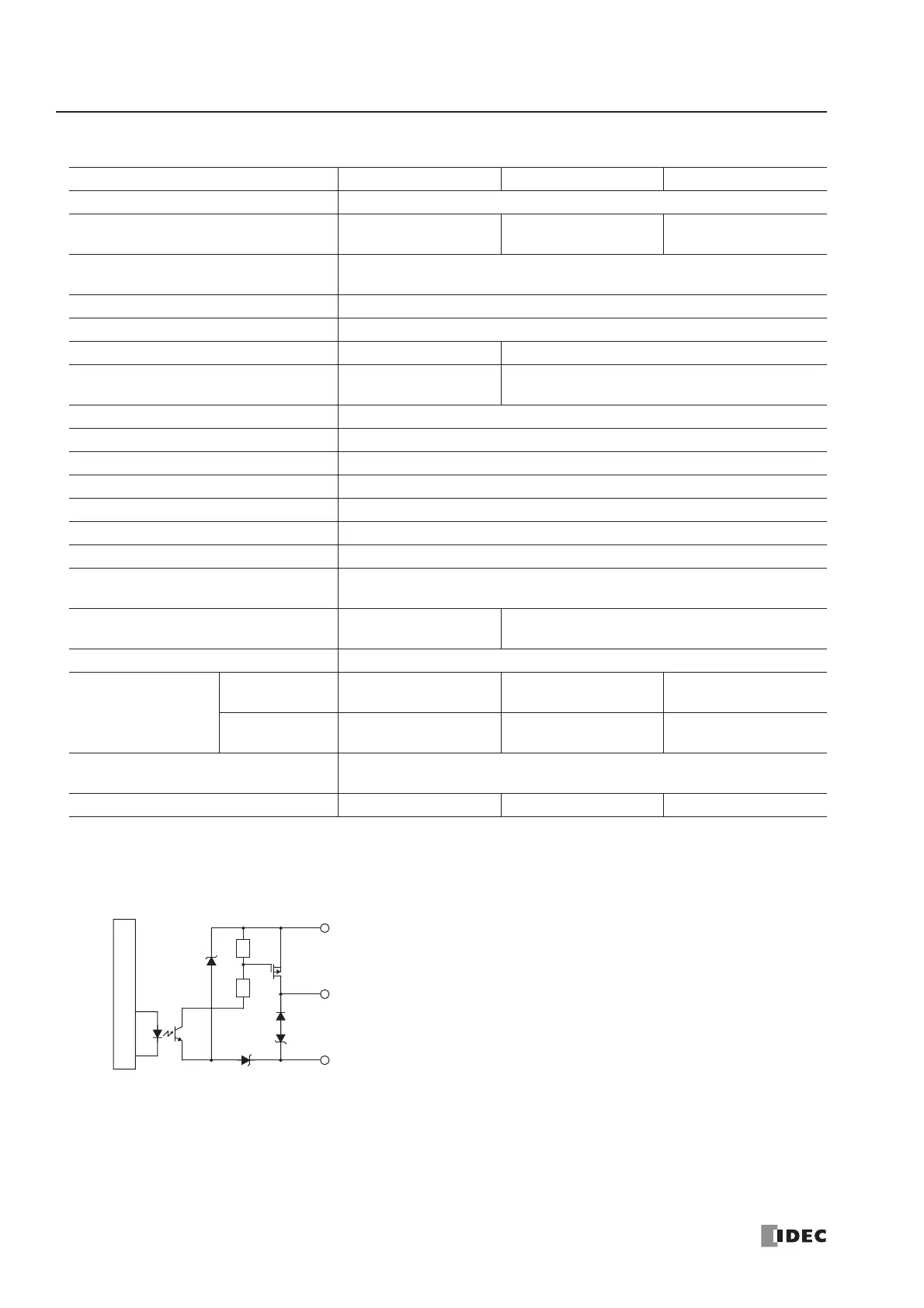

Transistor Source Output Module Specifications
Output Internal Circuit
Type No. FC4A-T08S1 FC4A-T16S3 FC4A-T32S3
Output Type Transistor source output
Output Points and Common Lines
8 points
in 1 common line
16 points
in 1 common line
32 points
in 2 common lines
Terminal Arrangement
See Transistor Source Output Module Terminal Arrangement on pages 2-37
and 2-38.
Rated Load Voltage 24V DC
Operating Load Voltage Range 20.4 to 28.8V DC
Rated Load Current 0.3A per output point 0.1A per output point
Maximum Load Current (at 28.8V DC)
0.3A per output point
3A per common line
0.1A per output point
1A per common line
Voltage Drop (ON Voltage) 1V maximum (voltage between COM and output terminals when output is on)
Inrush Current 1A maximum
Leakage Current 0.1 mA maximum
Clamping Voltage 39V±1V
Maximum Lamp Load 8W
Inductive Load L/R = 10 ms (28.8V DC, 1 Hz)
External Current Draw 100 mA maximum, 24V DC (power voltage at the –V terminal)
Isolation
Between output terminal and internal circuit: Photocoupler isolated
Between output terminals: Not isolated
Connector on Mother Board
MC1.5/10-G-3.81BK
(Phoenix Contact)
FL20A2MA (Oki Electric Cable)
Connector Insertion/Removal Durability 100 times minimum
Internal Current
Draw
All Outputs ON
10 mA (5V DC)
20 mA (24V DC)
10 mA (5V DC)
40 mA (24V DC)
20 mA (5V DC)
70 mA (24V DC)
All Outputs OFF
5 mA (5V DC)
0 mA (24V DC)
5 mA (5V DC)
0 mA (24V DC)
10 mA (5V DC)
0 mA (24V DC)
Output Delay
Turn ON time: 300 µs maximum
Turn OFF time: 300 µs maximum
Weight (approx.) 85g 70g 105g
COM(+)
Output
Internal Circuit
–V
Source Output
