2: MODULE SPECIFICATIONS
2-38 « FC4A MICROSMART USER’S MANUAL »

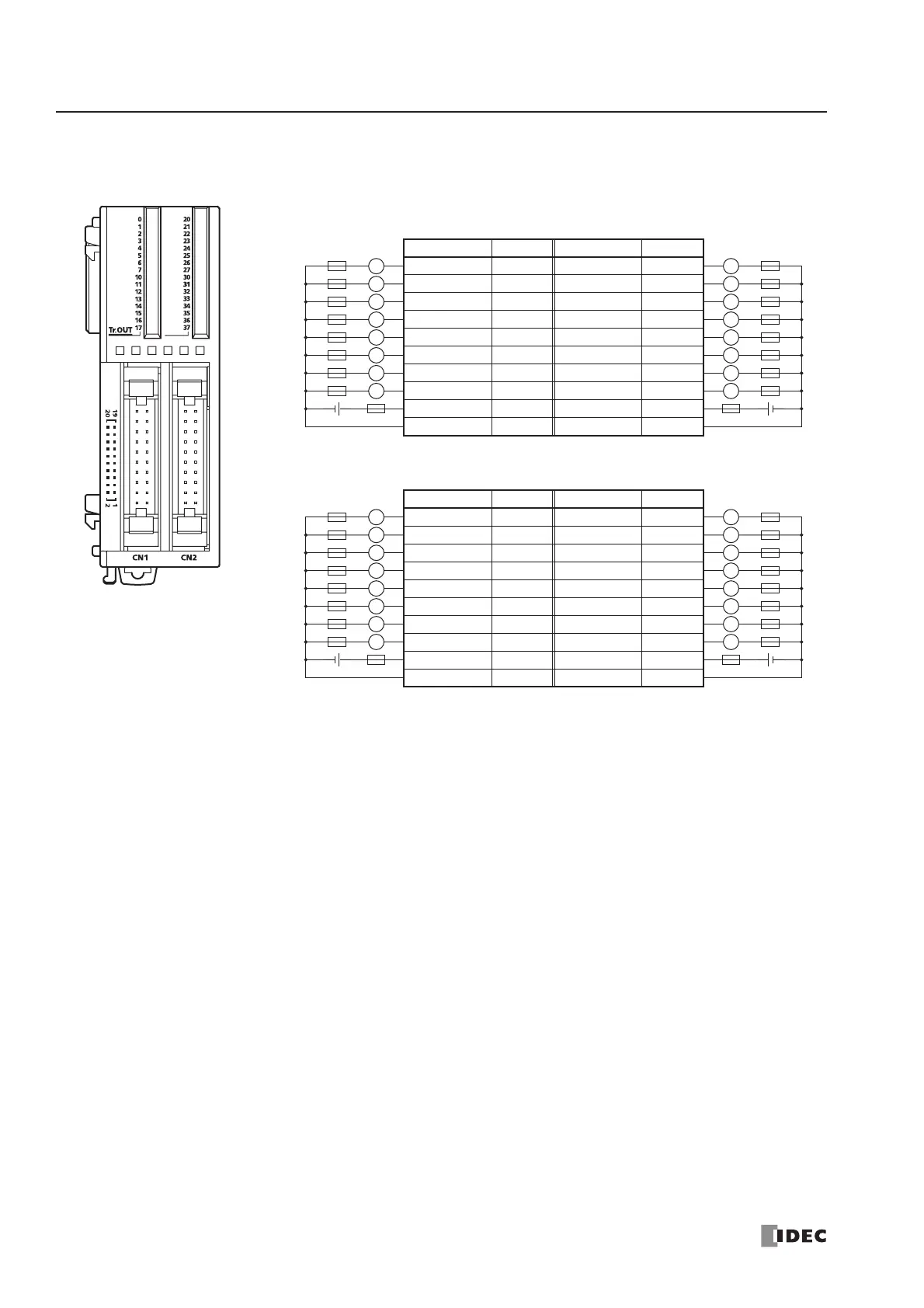

FC4A-T32S3 (32-point Transistor Source Output Module) — Connector Type
Applicable Connector: FC4A-PMC20P (not supplied with the output module)
• Terminals on CN1 and CN2 are not
connected together internally.
• COM0(+) terminals are connected together internally.
• COM1(+) terminals are connected together internally.
• –V0 terminals are connected together internally.
• –V1 terminals are connected together internally.
• Connect a fuse appropriate for the load.
• For output wiring precautions, see page 3-14.
CN1
Terminal No. Output Terminal No. Output
20 Q0 19 Q10
18 Q1 17 Q11
16 Q2 15 Q12
14 Q3 13 Q13
12 Q4 11 Q14
10 Q5 9 Q15
8Q67Q16
6Q75Q17
4 COM0(+) 3 COM0(+)
2 –V0 1 –V0
L
L
L
+–
L
L
L
L
Load
L
Fuse
L
L
L
+–
L
L
L
L
Load
L
Fuse
CN2
Terminal No. Output Terminal No. Output
20 Q20 19 Q30
18 Q21 17 Q31
16 Q22 15 Q32
14 Q23 13 Q33
12 Q24 11 Q34
10 Q25 9 Q35
8 Q26 7 Q36
6 Q27 5 Q37
4 COM1(+) 3 COM1(+)
2 –V1 1 –V1
L
L
L
+–
L
L
L
L
Load
L
Fuse
L
L
L
+–
L
L
L
L
Load
L
Fuse
