FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-183
2: P RODUCT S PECIFICATIONS
*1 9.3 mm when the hook is pulled out.
*1 9.3 mm when the hook is pulled out.
*2 The above drawing is for the screw fastened type. Dimensions for the push-in type are given in [ ].

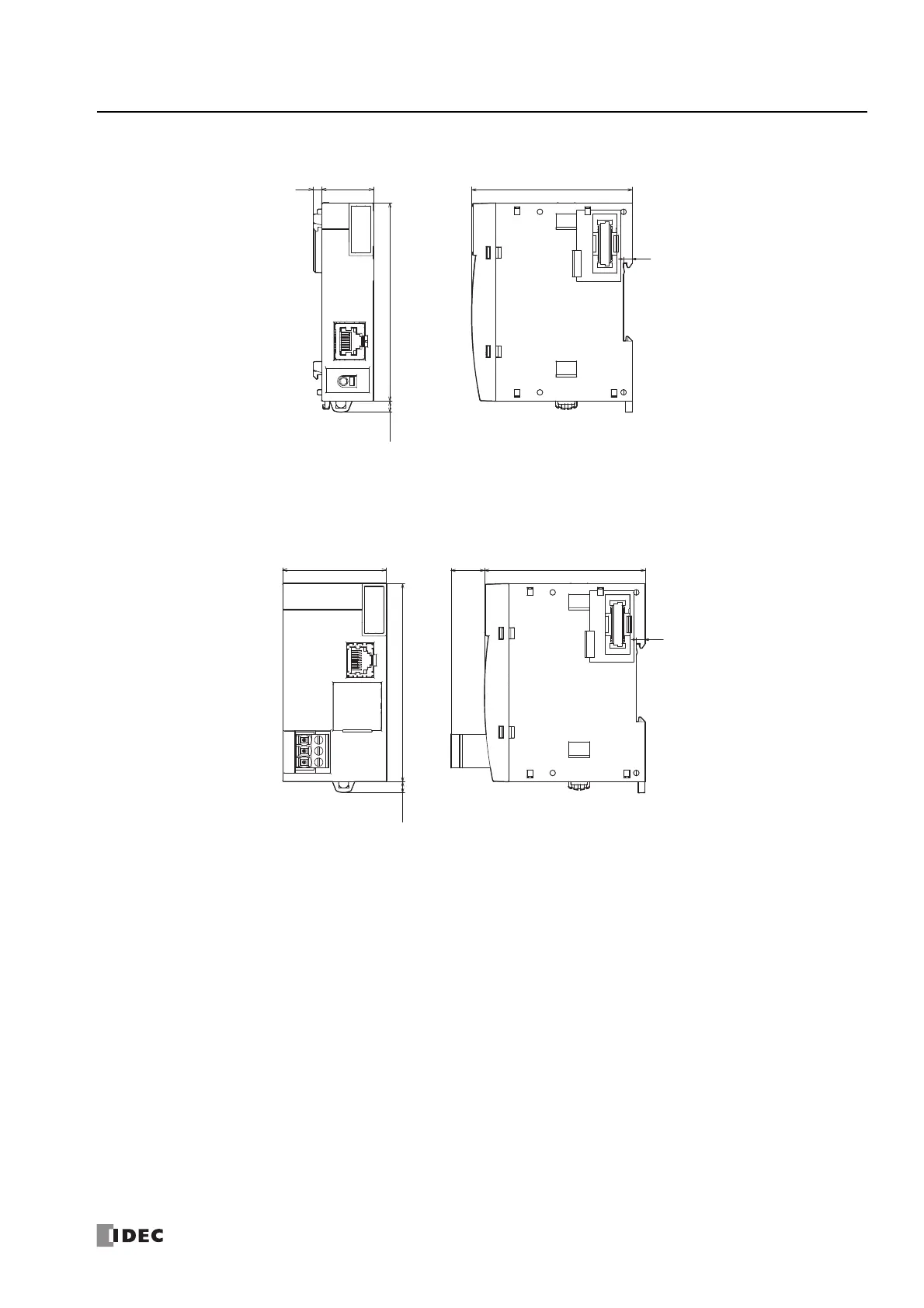

Remote Master: FC6A-EXM1M
Remote Slave: Screw fastened type: FC6A-EXM1S
Push-in type: FC6A-EXM1S4
73.0
5.0
23.63.8
90.0
4.0
*1
All dimensions in mm.
73.015.2
5.0
47.2
90.0
4.0
[13.4]
*2
*1
All dimensions in mm.
