Identiv uTrust TS - Connector Information

uTrust TS Contact Keypad Reader
Page 10 of 15
7.3 Connector Information

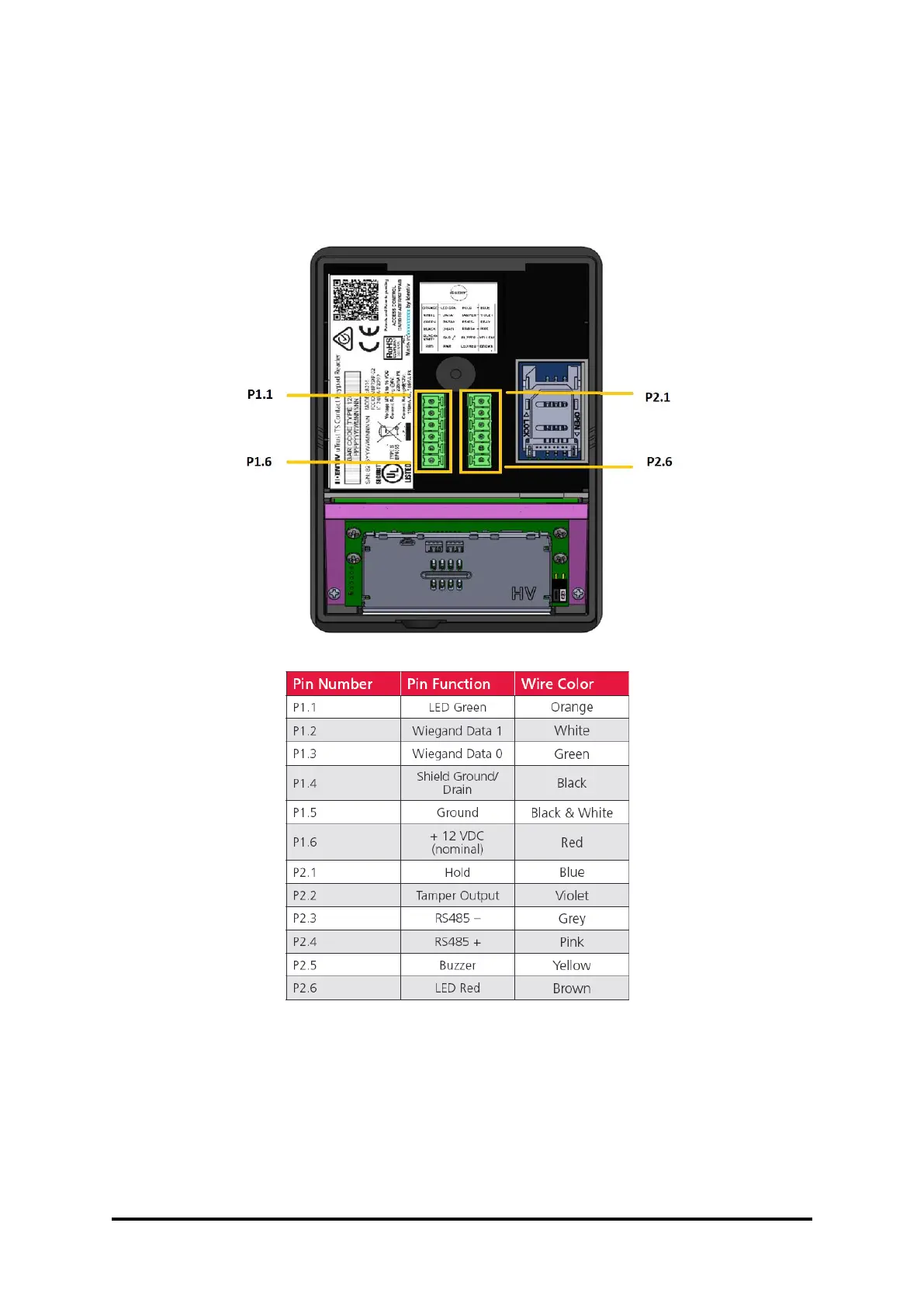

7.3.1 Pinout diagram
- Shield Ground/ Drain – Black wire should be connected to the cable shield.
Caution:
During Wiring make sure that the +VDC lines does not make contact with any other cables, as it might
affect reader functionality/ cause damage to the reader.
