16
DOC No: 8540 REV E
17
DOC No: 8540 REV E
To maintain protection of internal drive controller, your external
potentiometer should be fi tted with appropiate protection.

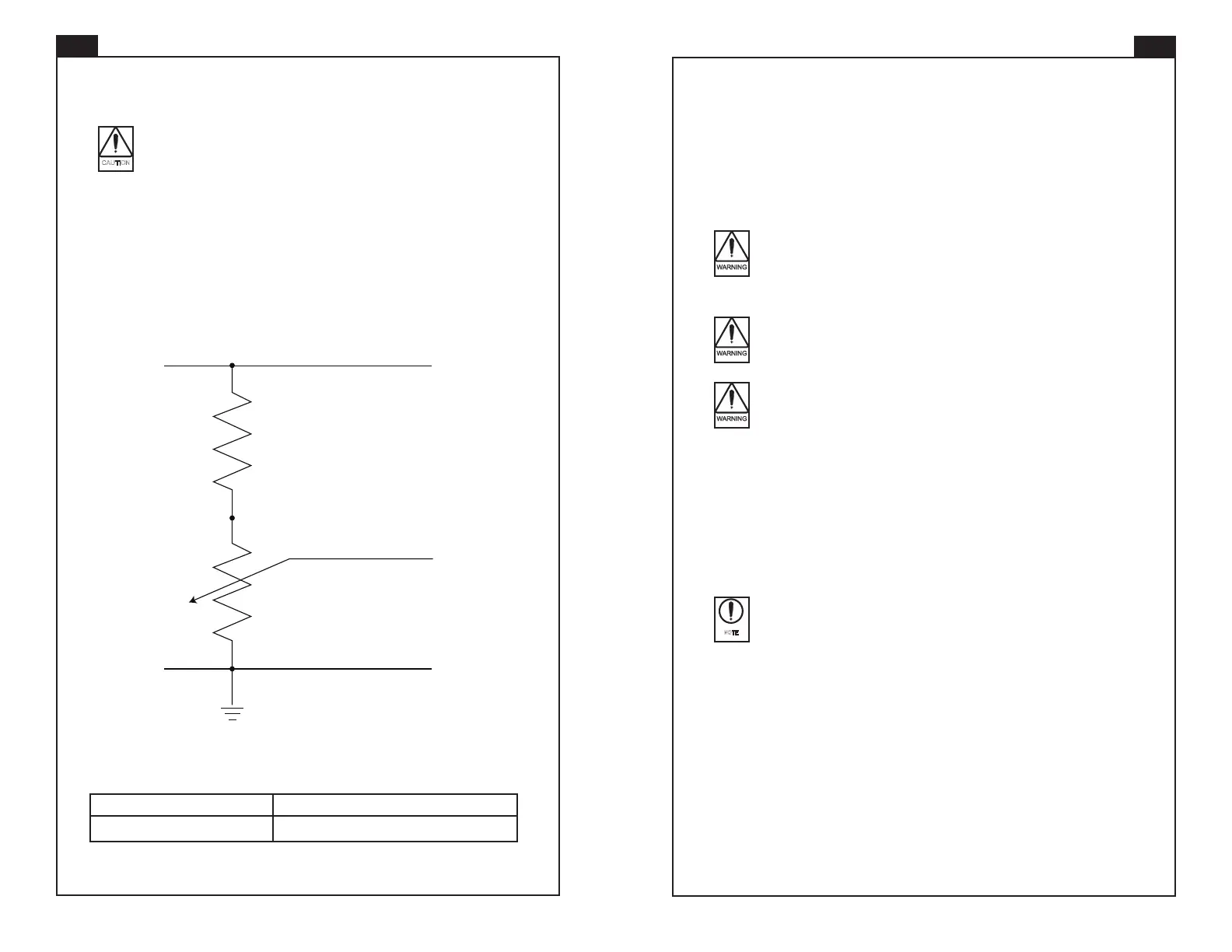

Manual Control Confi guration
Manual Control
Install a resistor (sized according to your voltage supply input) across the red Power
In and black Common lead wires. The potentiometer wiper is connected to the yellow
Speed Input lead wire. To increase speed, rotate the potentiometer to increase voltage to
the control line. To decrease speed, rotate the potentiometer to decrease voltage to the
control line.
CAUTION
Resistor (38 KOHM) VISHAY CMF5038K300FHEB
Potentiometer (10 KOHM) VISHAY P16NP103KAB15
Recommended Parts (24 VDC Mains)
RED
YELLOW
BLACK
Maintenance
Excessive wear to the pump can result in driven magnet rub on the
magnet cup. This can generate high surface temperatures or degrade the
capability of the pressure boundary. Remove the pump from service and
replace or repair if pump performance degrades signifi cantly or the pump
becomes noisy.
Ensure that heavy deposits of dust are not allowed to accumulate. Clean
the pump periodically.
The pump cannot be drained completely, a certain amount of liquid will
remain in the magnet cup area. Ensure that the pump is either fl ushed
with a suitable fl ushing agent or precautions are taken against the effect
of any remaining liquid during servicing. When the pump has been
handling fl ammable, toxic or hazardous fl uid, the pump internals must
be properly decontaminated by suitably qualifi ed personnel. The Material
Safety Data Sheet for the pumped liquid must be referred to for correct
procedures and precautions to be followed when handling the liquid.
Micropump EagleDrive motors are designed to be maintenance free and require no
adjustments. To ensure the motor or pump/motor assembly retains optimum performance
maintain the fl uid circuit to keep fi lters clean and prevent abrasive solids from passing
through the pump.
A program that includes periodic monitoring of your Micropump product is
recommended to provide timely detection and assessment of any problem.
NOTE
Magnet Decoupling
The EagleDrive pump/motor combinations do not decouple. If pump load becomes
excessive, current limiting in the controller prevents motor overload. Additional protection
is provided by a thermal sensor which shuts down the drive if the internal temperature
exceeds a preset value.
