Lifting the lip under the mushroom shaped Panhandle releases
the brakes that stop all lateral and longitudinal motion of the
Tabletop. Holding the ring up with fingertips allows the
Tabletop to be manually repositioned. The Switch Lockout
Pushbutton only disables Elevate, Trendelenburg, and ISO-
Centric Roll (ISR only) motions to prevent accidental
activation.

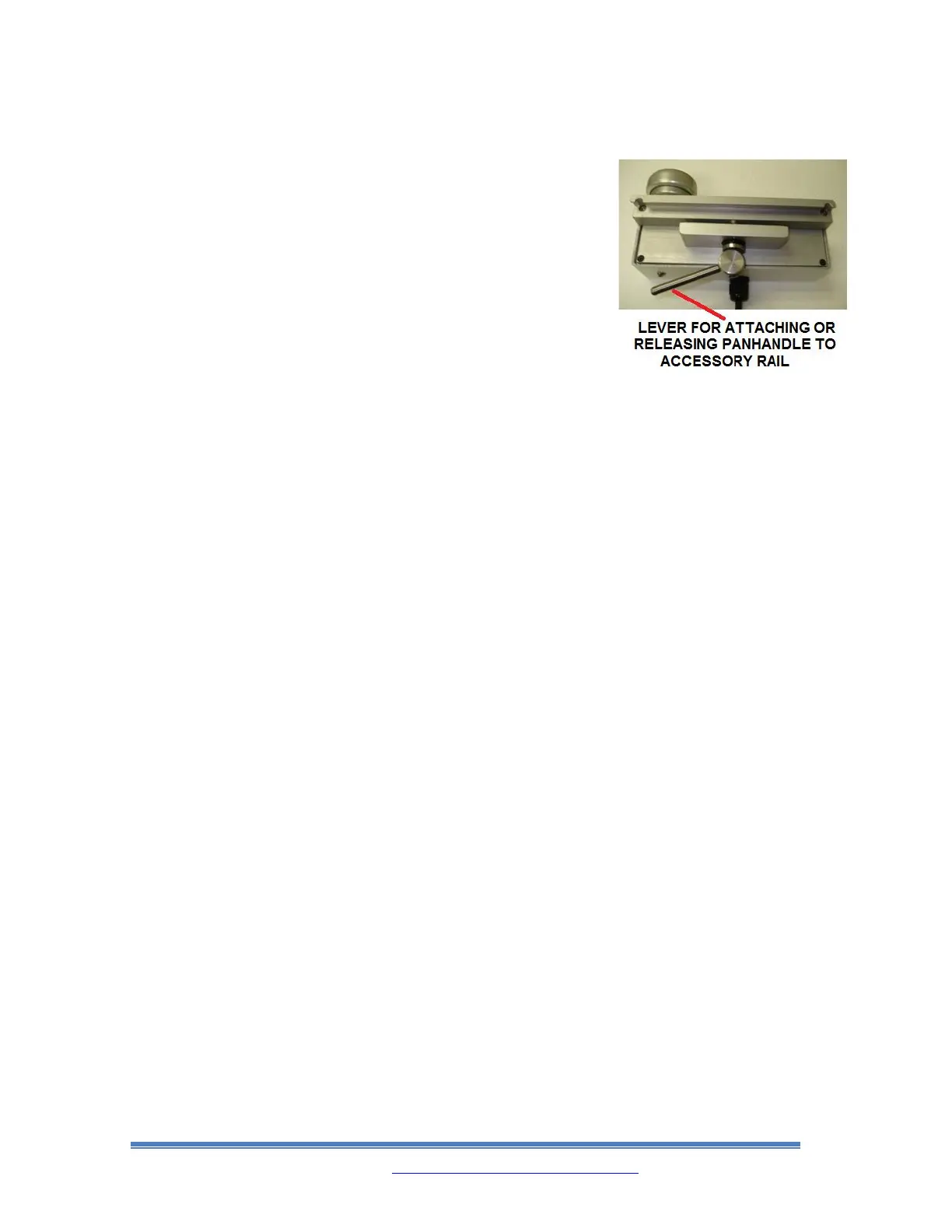

The Tabletop Motion Control Unit clamps onto either the left
or right Accessory Rail on the Tabletop and can be moved
along the length of the rails by rotating the lever down on the
bottom of the Motion Control Unit until the clamp releases
tension on the Accessory Rail. Then the Unit can be slid along the rail or removed.
