7.1 Pin assignment GigE connector (M12)
8-pin M12 socket (M12 connector: MMT361A315)
Pin
Description
Designation 1000BASE-
T
Designation 100BASE-
TX

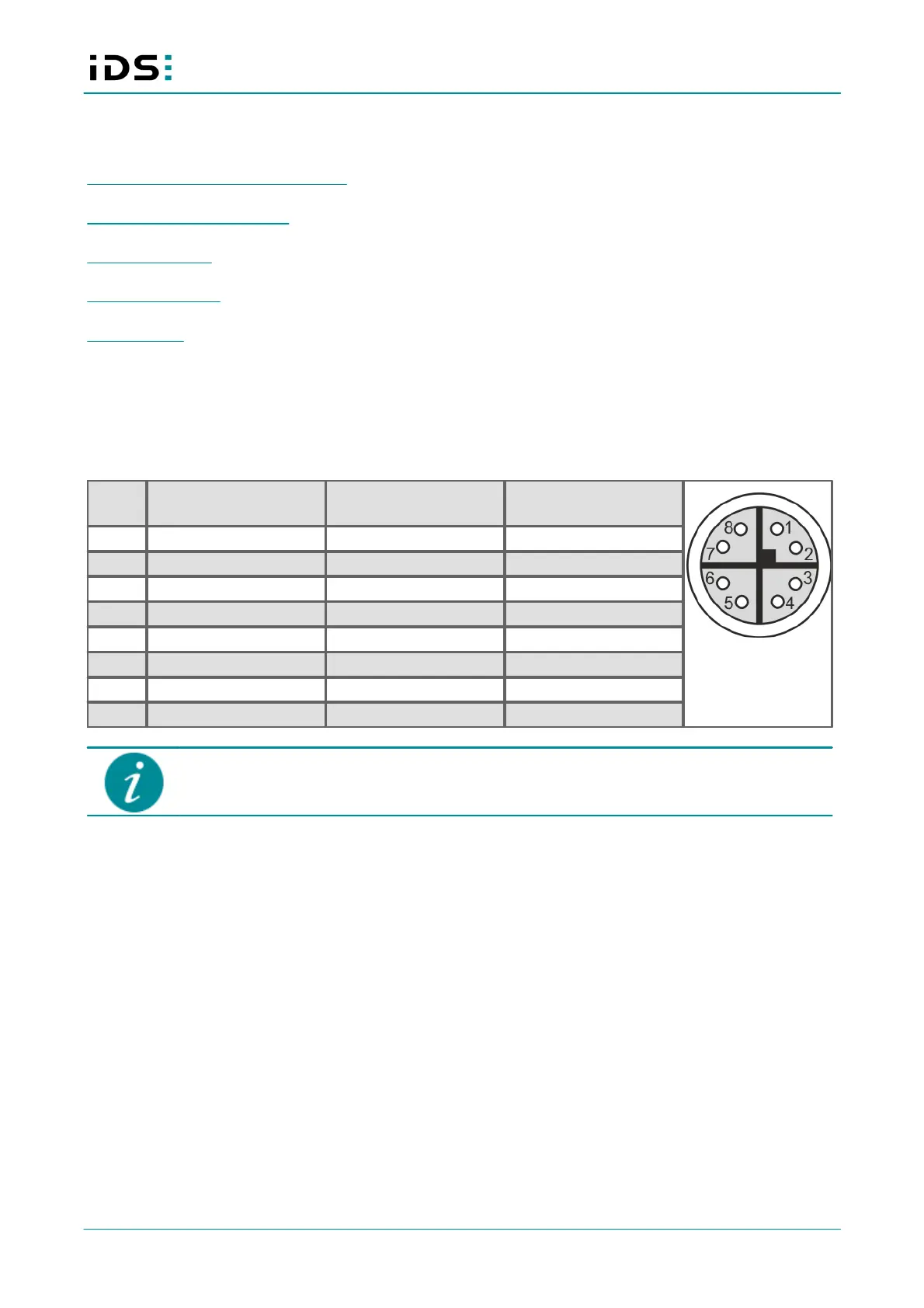

Fig. 3: M12 socket,
camera rear view
1
MDX0+
BI_DA+
TX+
2
MDX0-
BI_DA-
TX-
3
MDX1+
BI_DB+
RX+
4
MDX1-
BI_DB-
RX-
5
MDX3+
BI_DD+
-
6
MDX3-
BI_DD-
-
7
MDX2-
BI-DC-
-
8
MDX2+
BI_DC+
-
The M12 connector of the IDS NXT rome complies with the IEC/PAS 61076-2-109 standard.
