Open collector wiring

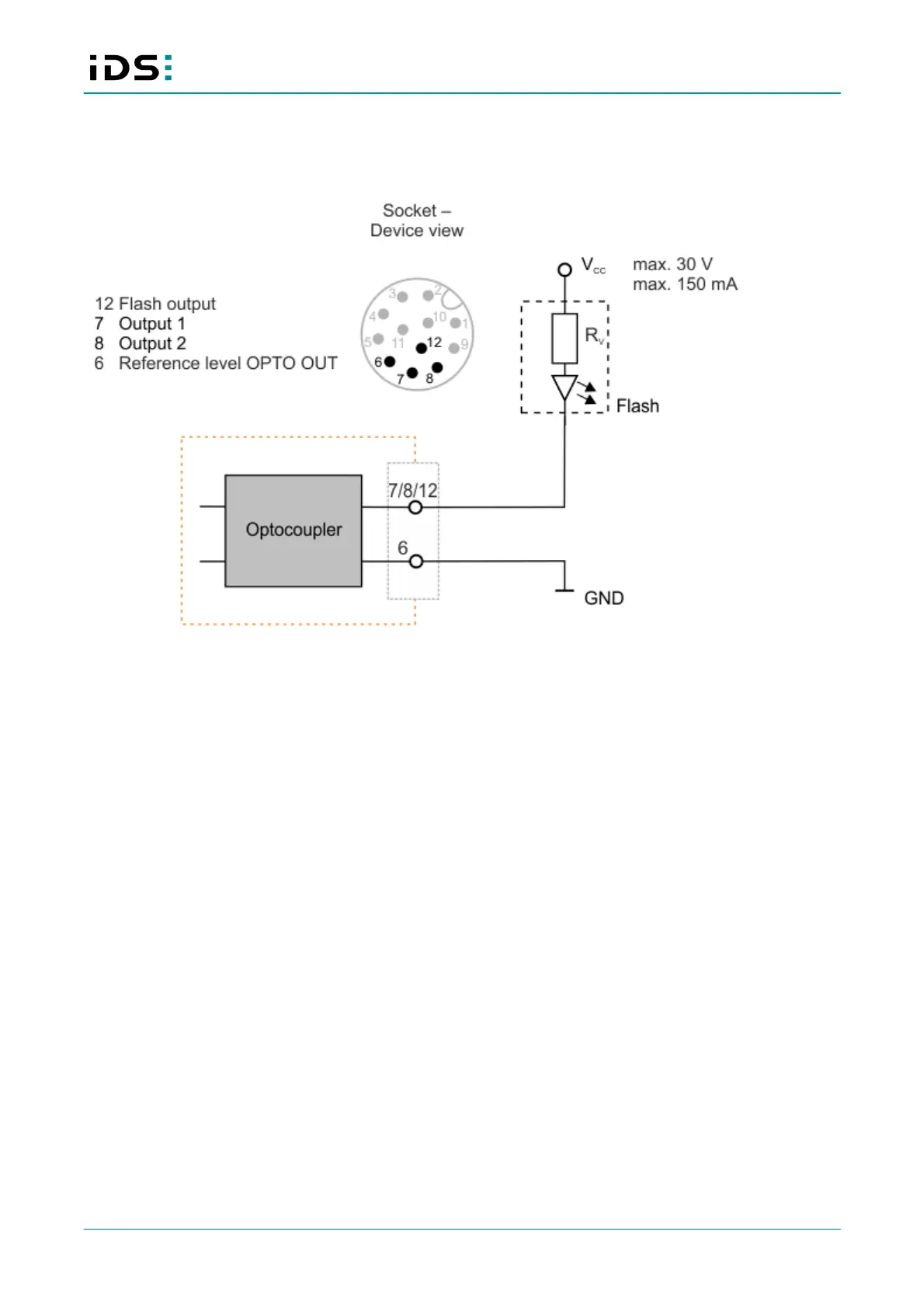

Fig. 6: Wiring as open collector
Pin 6 is the reference level (GND) for all outputs. All three outputs can be connected simultaneously as open
collector.
