IDS NXT: Technical manual IDS NXT rome

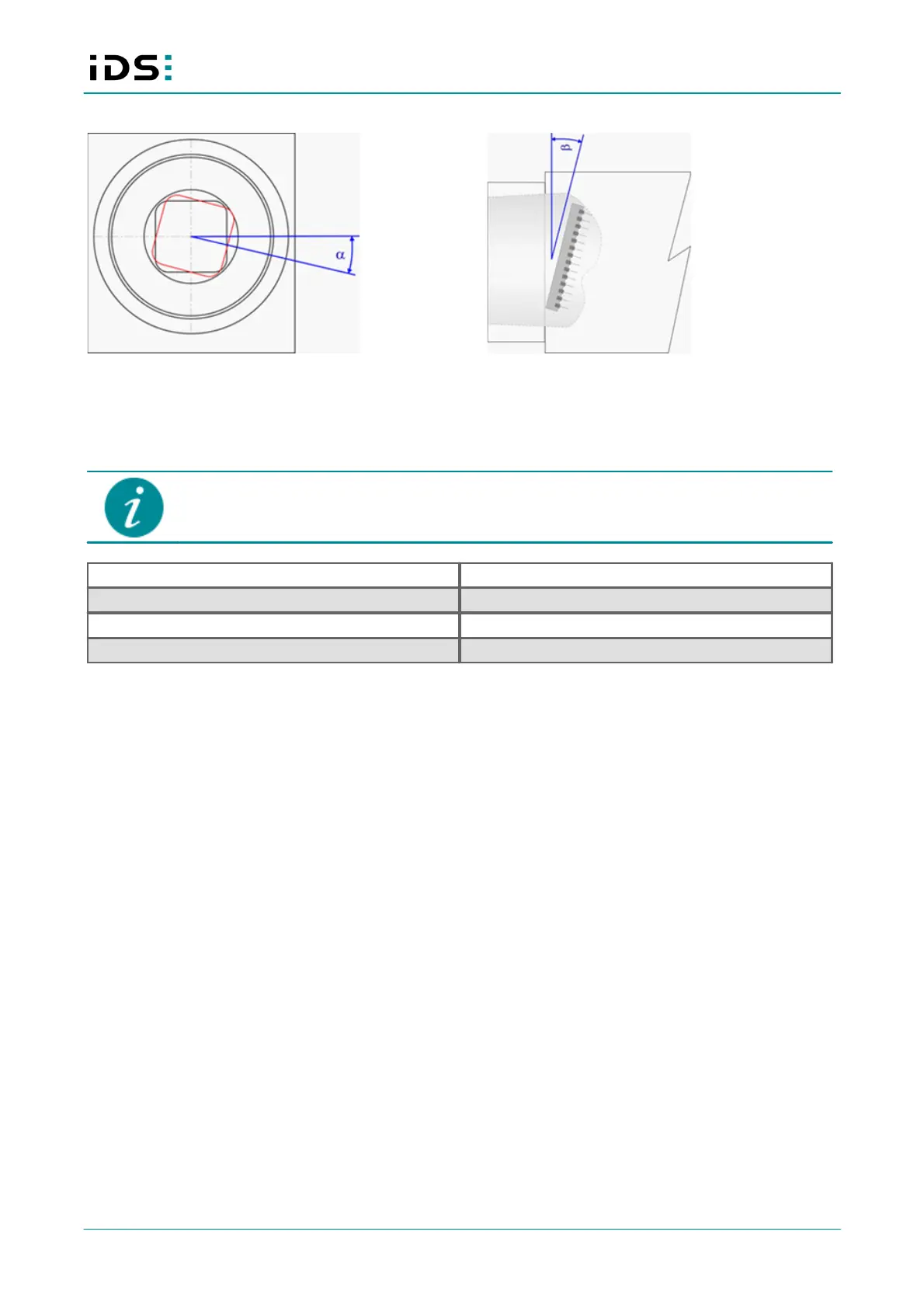

Fig. 10: Position accuracy of the sensor (1)
Fig. 11: Position accuracy of the
sensor (2)
It cannot be guaranteed that the sensor cover glass or filter glass are absolutely parallel to each other.
C-mount lenses can also be subject to inaccuracies of the flange back distance. The
tolerance usually is ±0.05 mm. In some cases, however, the inaccuracies of camera and lens
might add up, resulting in a total error > 0.05 mm.
Position accuracy, in each direction
±0.3 mm
Horizontal/vertical rotation (α)
±1.0°
Translational rotation (β)
±1.0°
Flange back distance
±0.05 mm
