8. Output Format
8-1. Wiegand Output Format
Data Format (34-bit /26-bit)
Bit 1 / Bit 1 : Even Parity Bit of Bit 2 to Bit 17 / Bit 2 to Bit 13
Bit 2 to Bit 33 / Bit 2 to Bit 25 : 4-byte ID number / 3-byte ID number
Bit 34 / Bit 26 : Odd Parity Bit of Bit18 to Bit 33 / Bit 14 to Bit 25

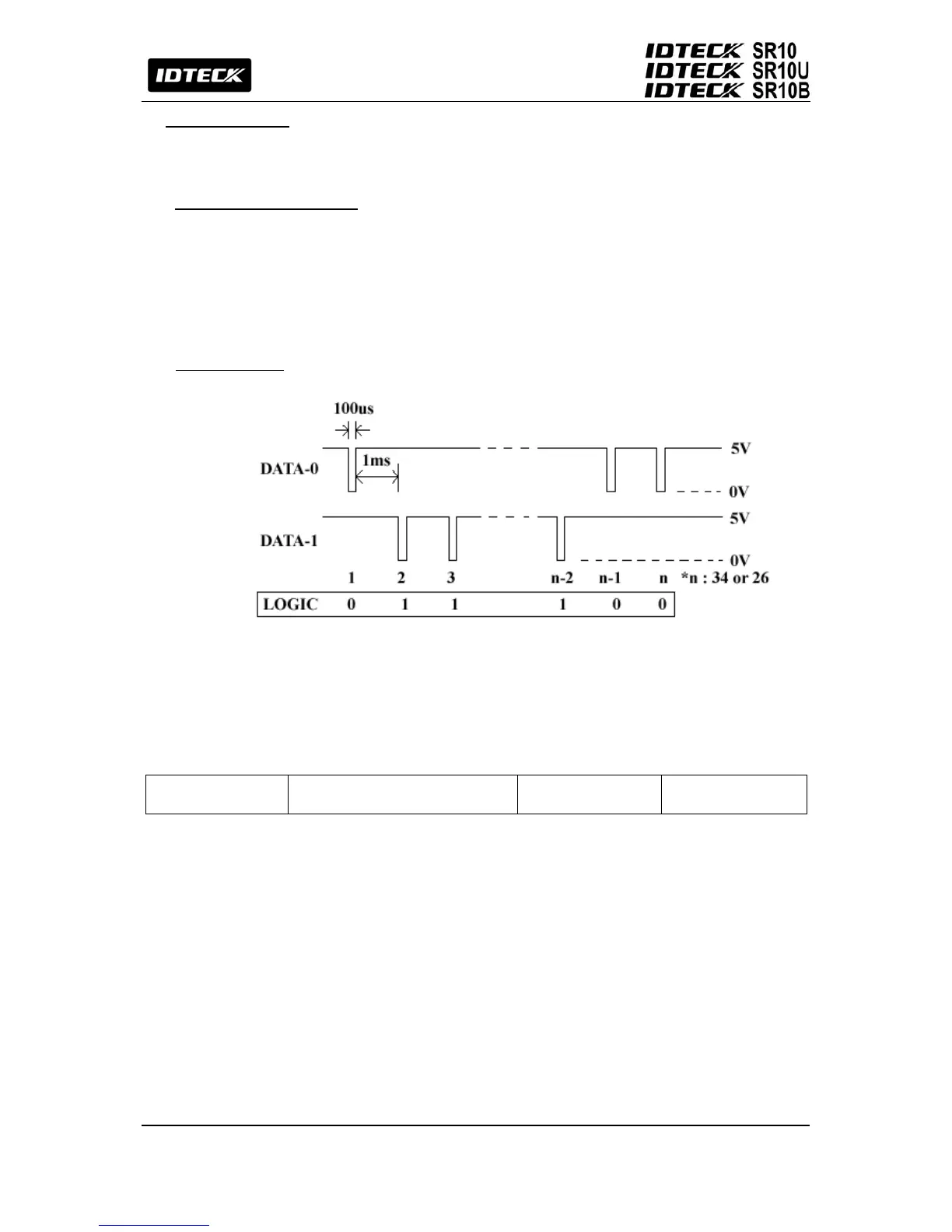

Timing Diagram
8-2 RS-232C(Option) Data Format
START(0x02H) DATA(10 or 8 char’s) END(0x03H) LRC
Baud Rate: 9600bps
DATA: With 4 bytes(34bits), 10 characters,
With 3 bytes(26bits), 8 characters.
LRC: One single value of XOR from ‘START’ to ‘END’.
