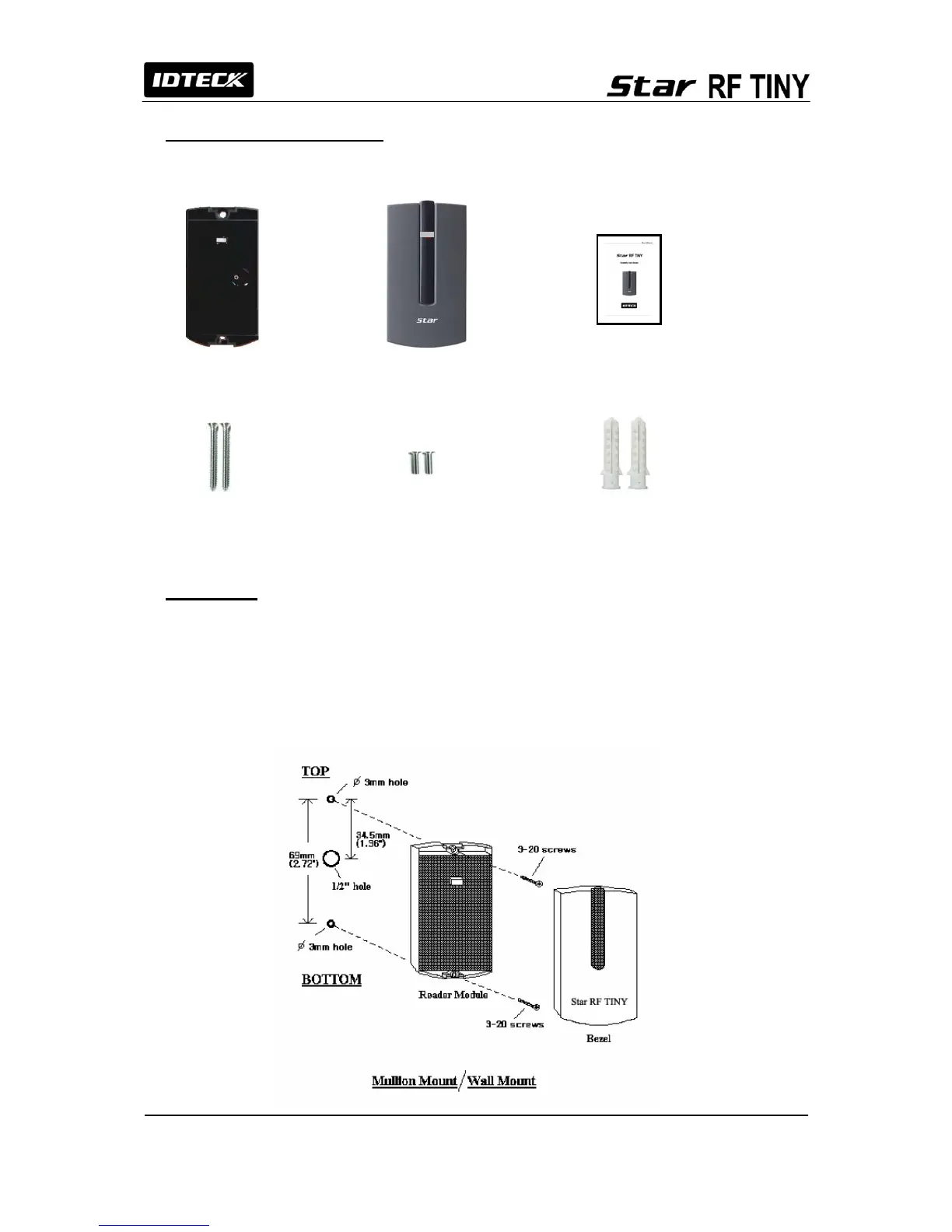

5. Identifying Supplied Parts
Please unpack and check the contents of the box.
Reader Module RF TINY Bezel User’s Manual
(1ea) (1ea) (1copy)
3.0*40 Screw 3.0*12 Screw Anchor Bolt
(2ea) (2ea) (2ea)
4. Installation
4-1. Mullion/Wall Mount
Drill two 3mm holes 2.72"(69mm) apart in vertical and drill one 1/2" hole for the controller cable
1.36"(34.5mm) apart from the top hole.
4-2. Put reader cable into the center hole and install the reader module by using two 3-20 screws.
4-3. Put bezel into the reader module then push bezel until you hear the locking sound.
