IDW G-10F User Manual

Instruction Manual

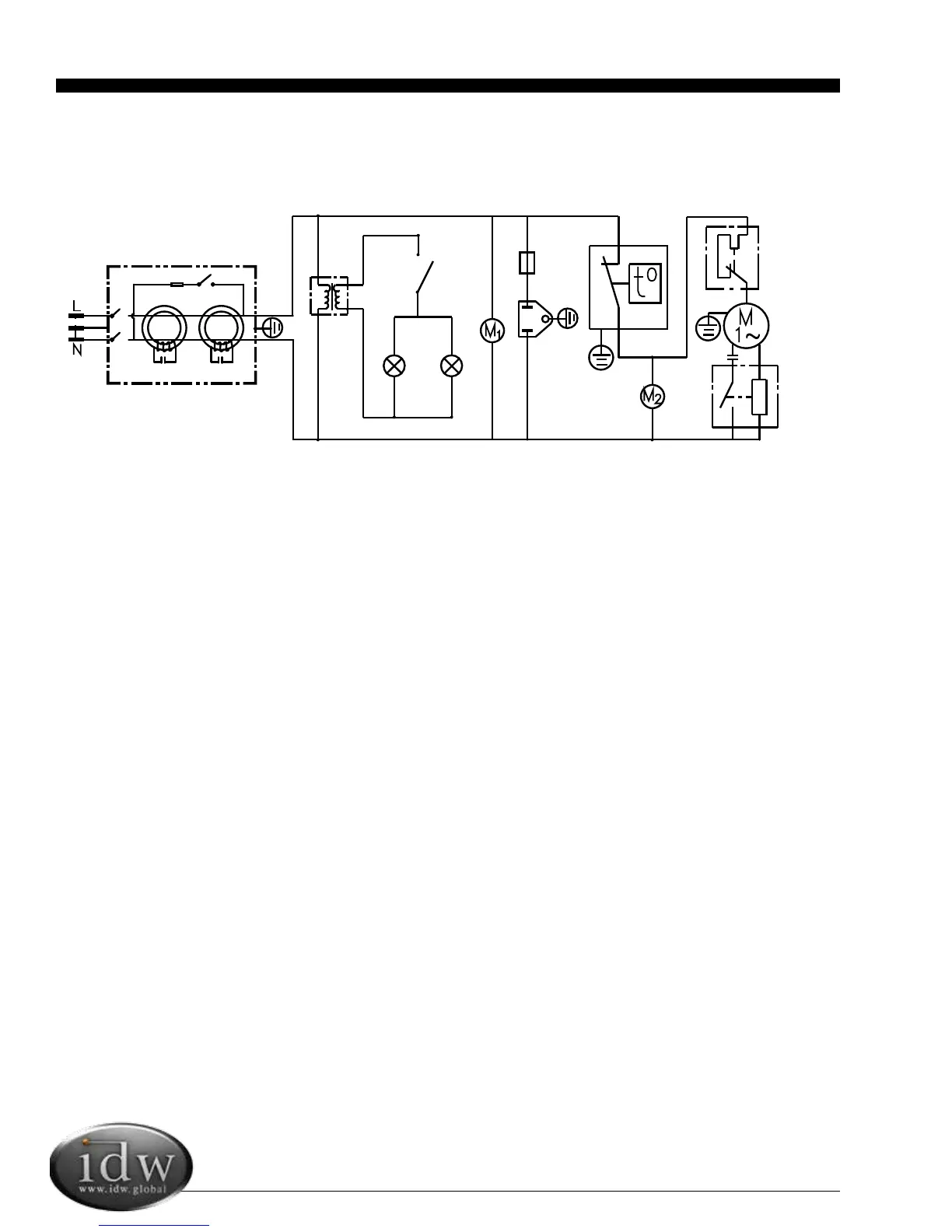

G-10f CIRCUIT DIAGRAM
15
A
B
C
D1
D2
E
F
E
G
H
I
J
K
L
M
A: Electric leakage protector
B: Power supply for LED lights
C: On/Off switch for interior and door side light
D1: Interior top LED light
D2: Door side LED light
E: Evaporator Fan
F: Fuse
G: Socket
H: Thermostat
I: Condenser fan
J: Overload for compressor
K: Compressor
L: Compressor starting capacitor
M: Compressor relay

IDW G-10F Specifications

General

Brand	IDW
Model	G-10F
Category	Freezer
Language	English
