Instruction Manual
17

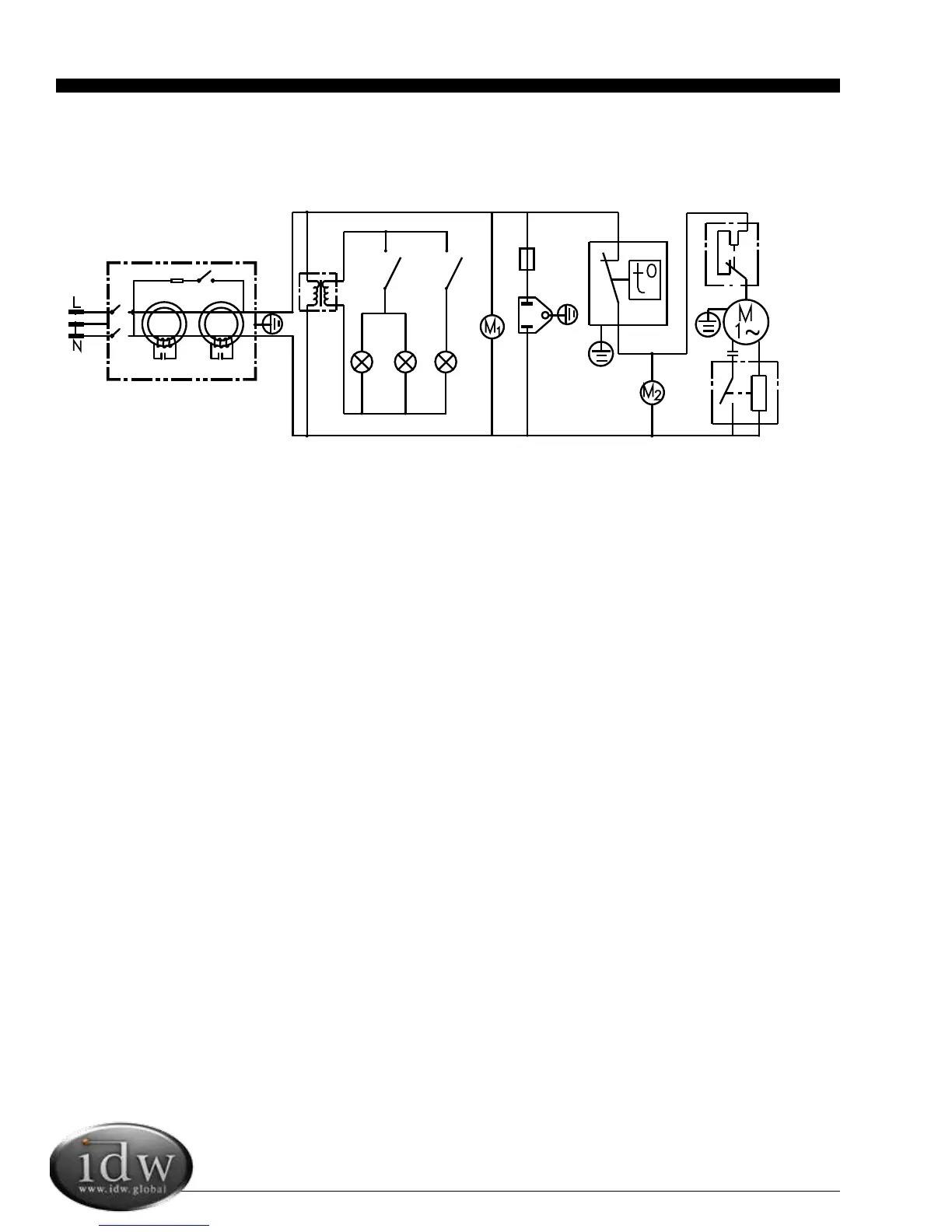

GCG-10f CIRCUIT DIAGRAM
A
B
C1 C2
D1
D2
D3
E
F
E
G
H
I
J
K
L
M
D3: Door LED Logo Light
E: Evaporator fan
F: Fuse
G: Socket
H: Thermostat
I: Condenser fan
A: Electric leakage protector
B: Power supply for LED lights
C1: On/Off switch for Interior light
C2: On/Off switch for lit door logo light
D1: Interior top LED light
D2: Door side LED light
J: Overload for Compressor
K: Compressor
L: Conpressor starting capacitor
M: Compressor relay
