IEC E055-71520301 Installation Instructions

IEC E055-71520301
19 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Page #10 background imageLoading...
Page #10 background image
COM
G3/(Y)
G2/(W)
G
LO
MED
HI
(HEAT)
(COOL)
(VALVE)
FAN
R
C

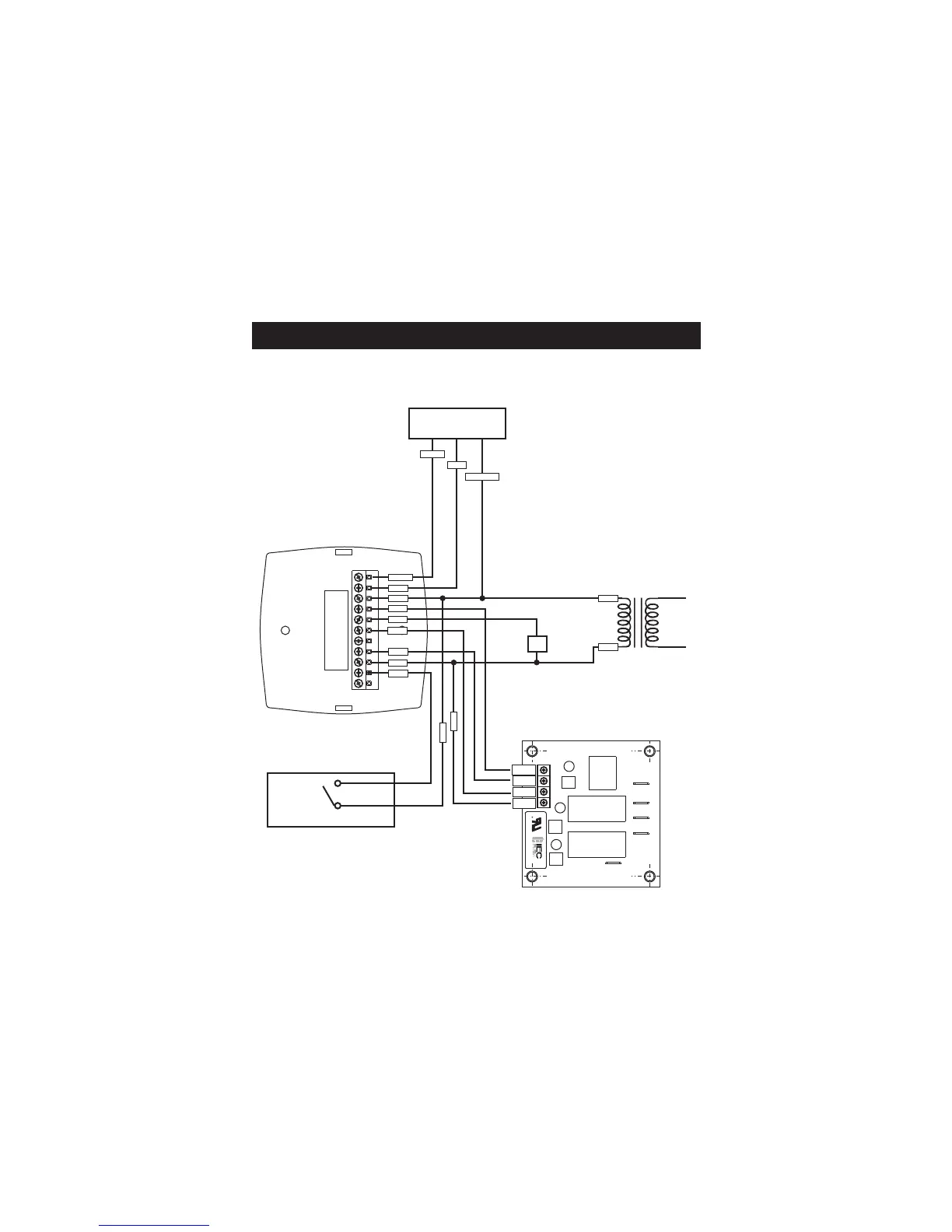

Sample Wiring Diagram
2-Pipe, Low Voltage Valve, H2O Changeover Sensor
COM
G
G3(Y)
G2(W)
RS+5
RS GND
RS
R
C
R
C
G2
G3
G
RS+5
RS
H2O
V
Y1
Duct Sensor
G100-71520307
H O Changeover Sensor
G100-71520306
2
E025-71520303
24 Volt Water
Valve
24vac
Important Note: If a
Duct sensor is conn-
ected to this thermostat
it is suggested that the
fan be programmed for
continuous operation
(step #5, page 11 of the
Owner’s Manual).
Thermostat
E025-71520303
Page 9
