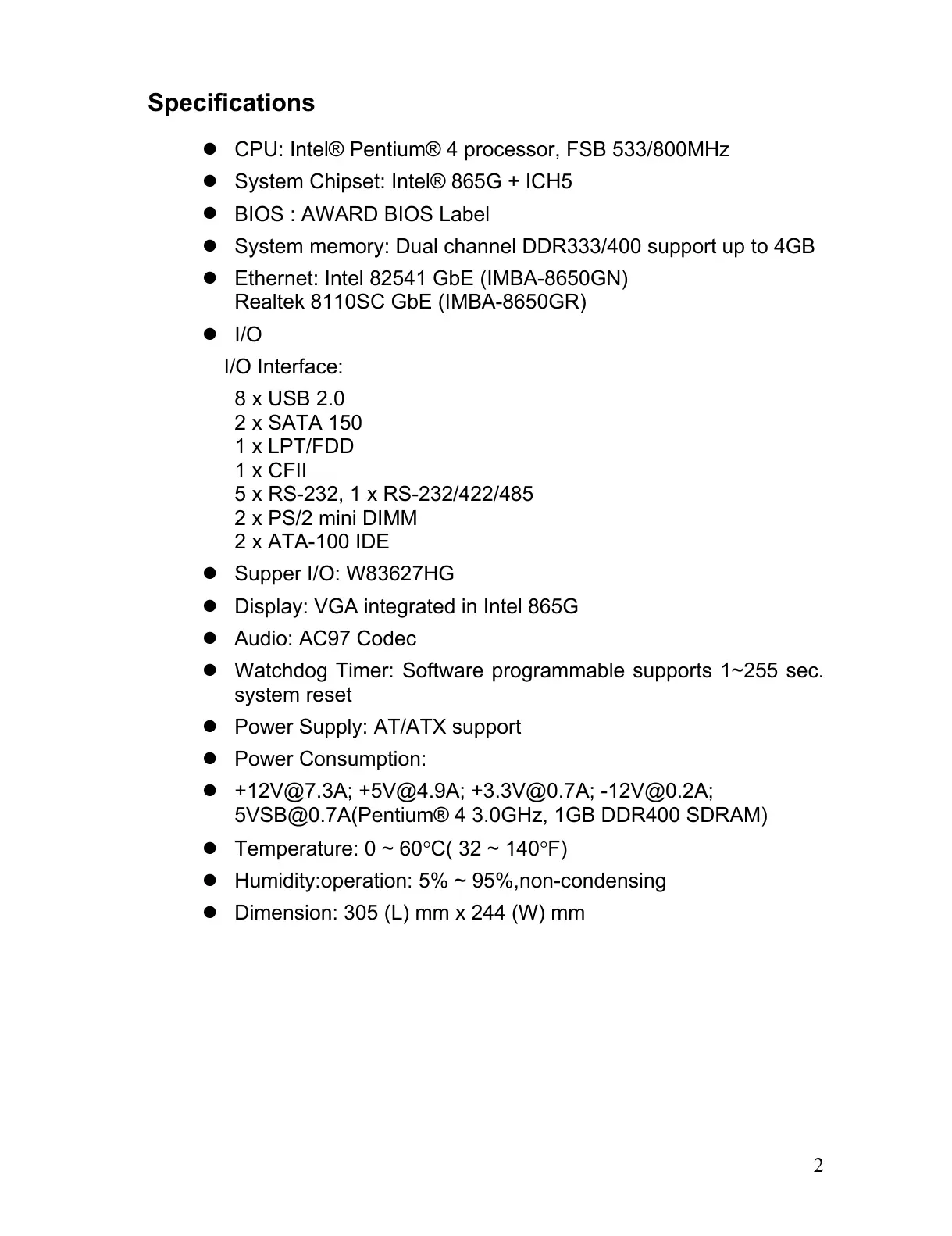

Specifications
CPU: Intel® Pentium® 4 processor, FSB 533/800MHz
System Chipset: Intel® 865G + ICH5
BIOS : AWARD BIOS Label
System memory: Dual channel DDR333/400 support up to 4GB
Ethernet: Intel 82541 GbE (IMBA-8650GN)
Realtek 8110SC GbE (IMBA-8650GR)
I/O
I/O Interface:
8 x USB 2.0
2 x SATA 150
1 x LPT/FDD
1 x CFII
5 x RS-232, 1 x RS-232/422/485
2 x PS/2 mini DIMM
2 x ATA-100 IDE
Supper I/O: W83627HG
Display: VGA integrated in Intel 865G
Audio: AC97 Codec
Watchdog Timer: Software programmable supports 1~255 sec.
system reset
Power Supply: AT/ATX support
Power Consumption:
+12V@7.3A; +5V@4.9A; +3.3V@0.7A; -12V@0.2A;
5VSB@0.7A(Pentium® 4 3.0GHz, 1GB DDR400 SDRAM)
Temperature: 0 ~ 60
°
C( 32 ~ 140
°
F)
Humidity:operation: 5% ~ 95%,non-condensing
Dimension: 305 (L) mm x 244 (W) mm
