IEI Technology IMBA-8650 Quick Installation Guide

3

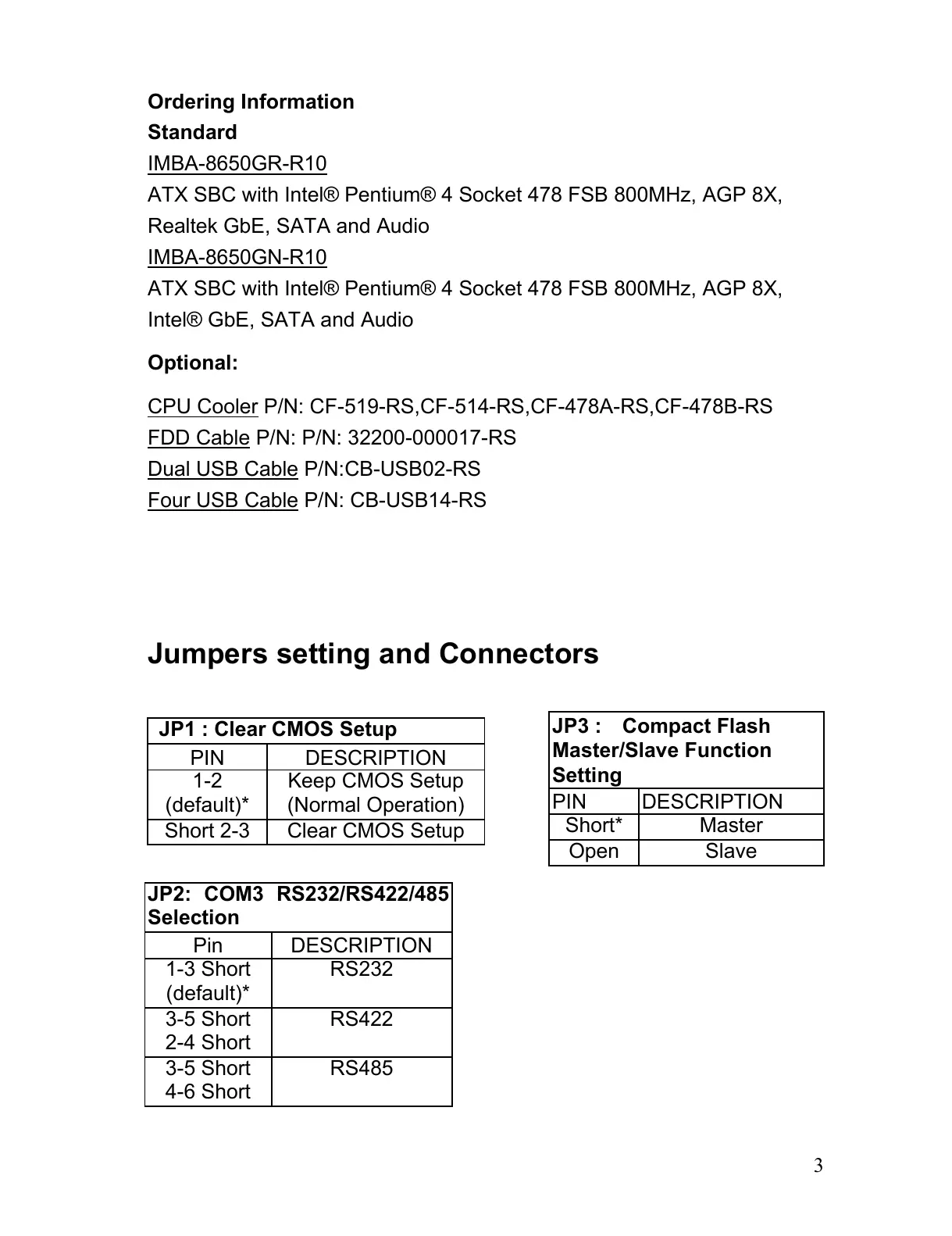

Ordering Information
Standard
IMBA-8650GR-R10
ATX SBC with Intel® Pentium® 4 Socket 478 FSB 800MHz, AGP 8X,
Realtek GbE, SATA and Audio
IMBA-8650GN-R10
ATX SBC with Intel® Pentium® 4 Socket 478 FSB 800MHz, AGP 8X,
Intel® GbE, SATA and Audio
Optional:
CPU Cooler
P/N: CF-519-RS,CF-514-RS,CF-478A-RS,CF-478B-RS
FDD Cable
P/N: P/N: 32200-000017-RS
Dual USB Cable
P/N:CB-USB02-RS
Four USB Cable
P/N: CB-USB14-RS
Jumpers setting and Connectors
JP1 : Clear CMOS Setup
PIN DESCRIPTION
1-2
(default)*
Keep CMOS Setup
(Normal Operation)
Short 2-3 Clear CMOS Setup
JP2: COM3 RS232
/
RS422/485
Selection
Pin DESCRIPTION
1-3 Short
(default)*
RS232
3-5 Short
2-4 Short
RS422
3-5 Short
4-6 Short
RS485
JP3 : Compact Flash
Master/Slave Function
Setting
PIN DESCRIPTION
Short* Master
Open Slave
