IEI Technology IMBA-8650 Quick Installation Guide

5

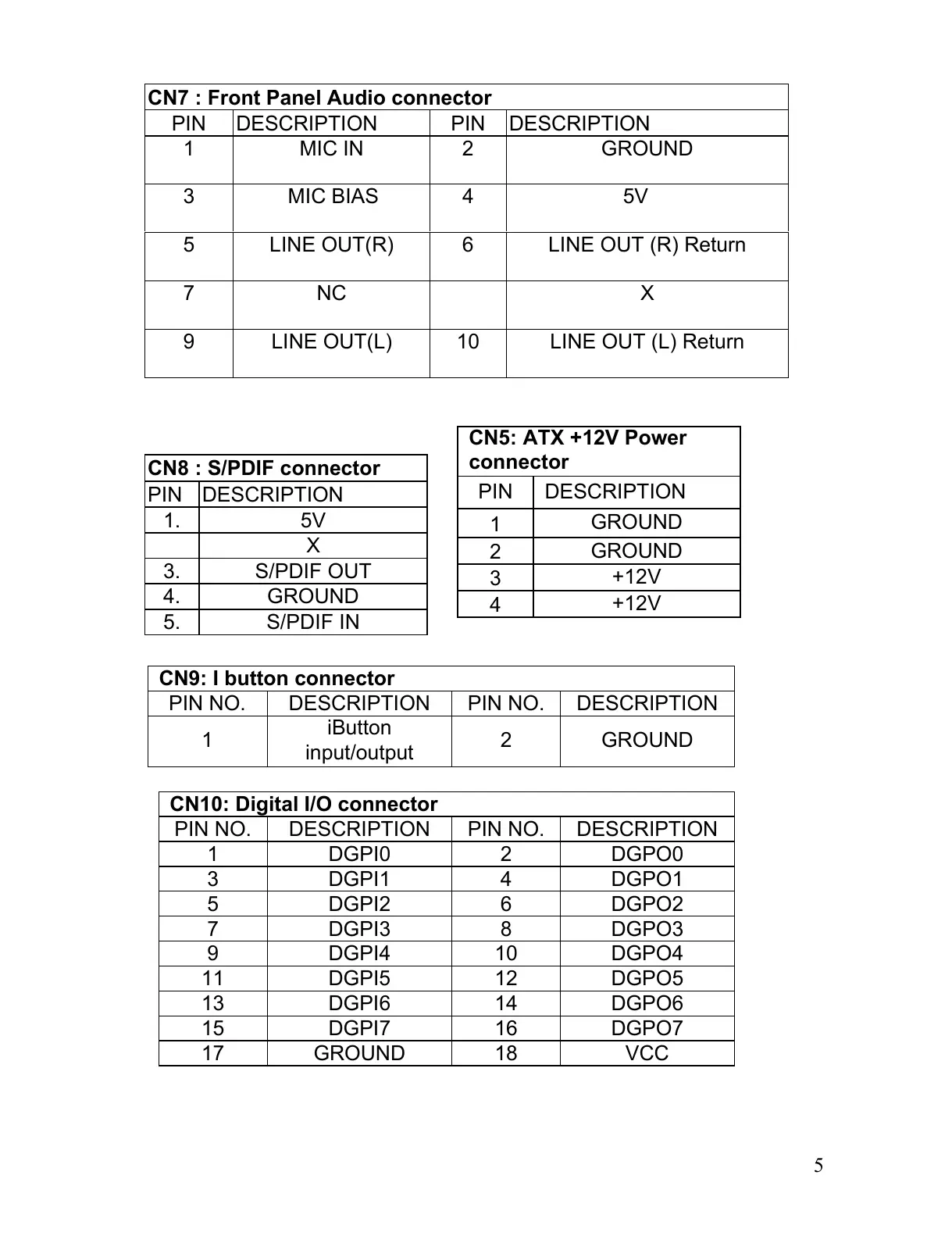

CN5: ATX +12V Power
connector
PIN DESCRIPTION
1
GROUND
2
GROUND
3
+12V
4
+12V
CN9: I button connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1
iButton
input/output
2 GROUND
CN10: Digital I/O connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 DGPI0 2 DGPO0
3 DGPI1 4 DGPO1
5 DGPI2 6 DGPO2
7 DGPI3 8 DGPO3
9 DGPI4 10 DGPO4
11 DGPI5 12 DGPO5
13 DGPI6 14 DGPO6
15 DGPI7 16 DGPO7
17 GROUND 18 VCC
CN7 : Front Panel Audio connector
PIN DESCRIPTION PIN DESCRIPTION
1 MIC IN 2 GROUND
3 MIC BIAS 4 5V
5 LINE OUT(R) 6 LINE OUT (R) Return
7 NC X
9 LINE OUT(L) 10 LINE OUT (L) Return
CN8 : S/PDIF connector
PIN DESCRIPTION
1. 5V
X
3. S/PDIF OUT
4. GROUND
5. S/PDIF IN
