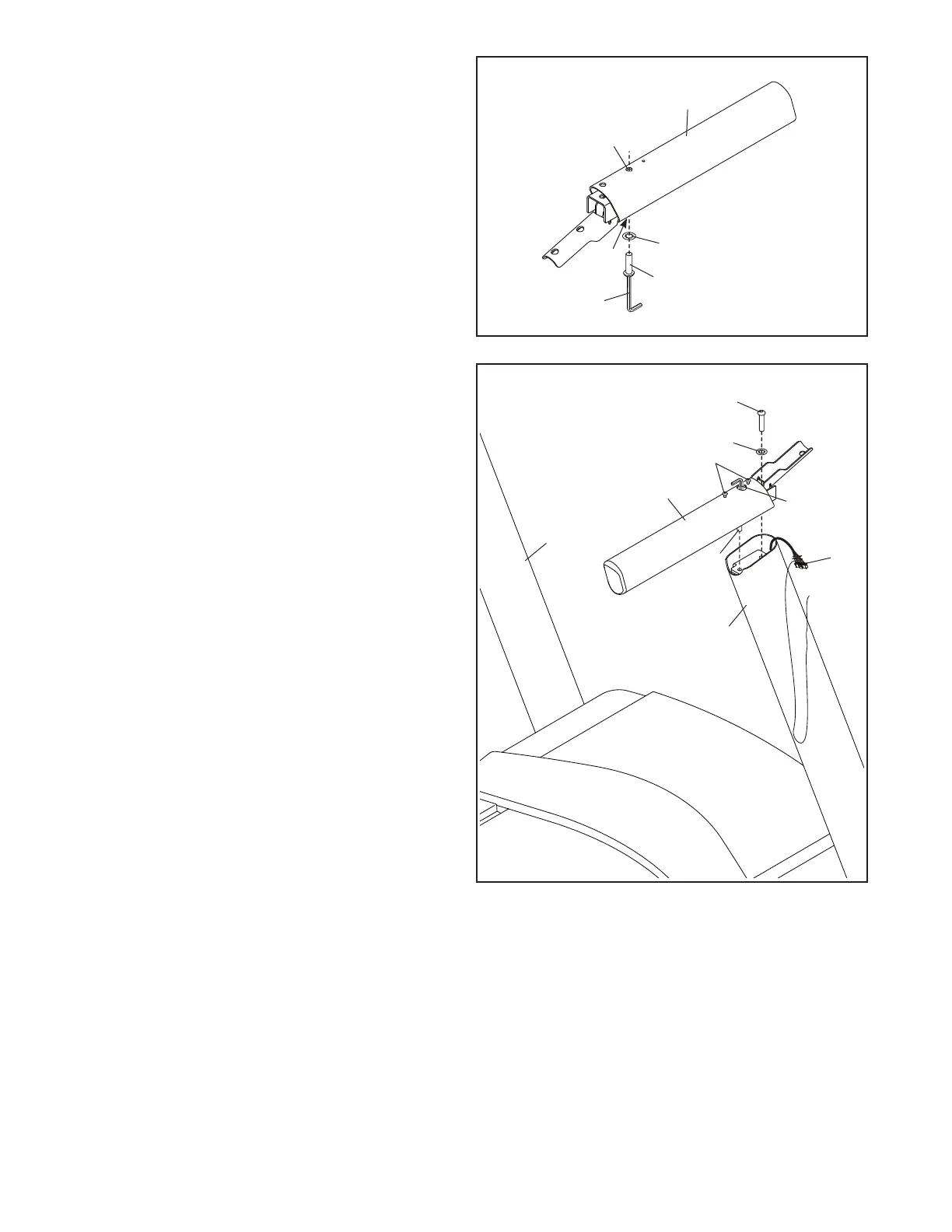

6. Turn one of the Handrails (72) upside down.
Insert a 5/16" x 1 1/2" Screw (5) with a 5/16" Star
Washer (7) into the indicated large hole (F) and
out of the indicated small hole (G).
Next, hold the 5/16" x 1 1/2" Screw (5) with the
hex key (H) and turn the Handrail (72) upright.
Continue to hold the Screw in place as you
complete the next assembly step.
7
72
6
5
F
G
H
7. Set the Handrail (72) on the Right Upright (79).
Using the inserted the hex key (H), partially
tighten the 5/16" x 1 1/2" Screw (5); do not fully
tighten the Screw yet.
Next, start another 5/16" x 1 1/2" Screw (5) with
a 5/16" Star Washer (7) into the Handrail (72)
and the Right Upright (79); then, tighten both
Screws. Do not pinch the Upright Wire (80).
Then, remove and discard the two indicated
screws (I).
Attach the other Handrail (not shown) to the
Left Upright (78) as shown in steps 6 and 7.
Note: There are no wires on the left side.
