chip has been damaged. In fact just to test instead of on a computer with high configuration and
fast system then it can be read and write normally.
Advice for the fresh man to read and write S3F9454 at the first time : First buy some new
S3F9454,then use the attachment in this post link(http://www.ifix.net.cn/thread-12370-1-1.html),
write the program file : “奔腾 PC21N-8 S3F9454BZZ-DK94 主板”,if it verified successfully it shows
the function to read and write S3F is normal;if it verified wrongly please make a clean system again
or change to a faster computer to test until write in and verify successfully,at last read and write
the S3F series MCU of client.
4.12.4 Connection diagram and connection definition

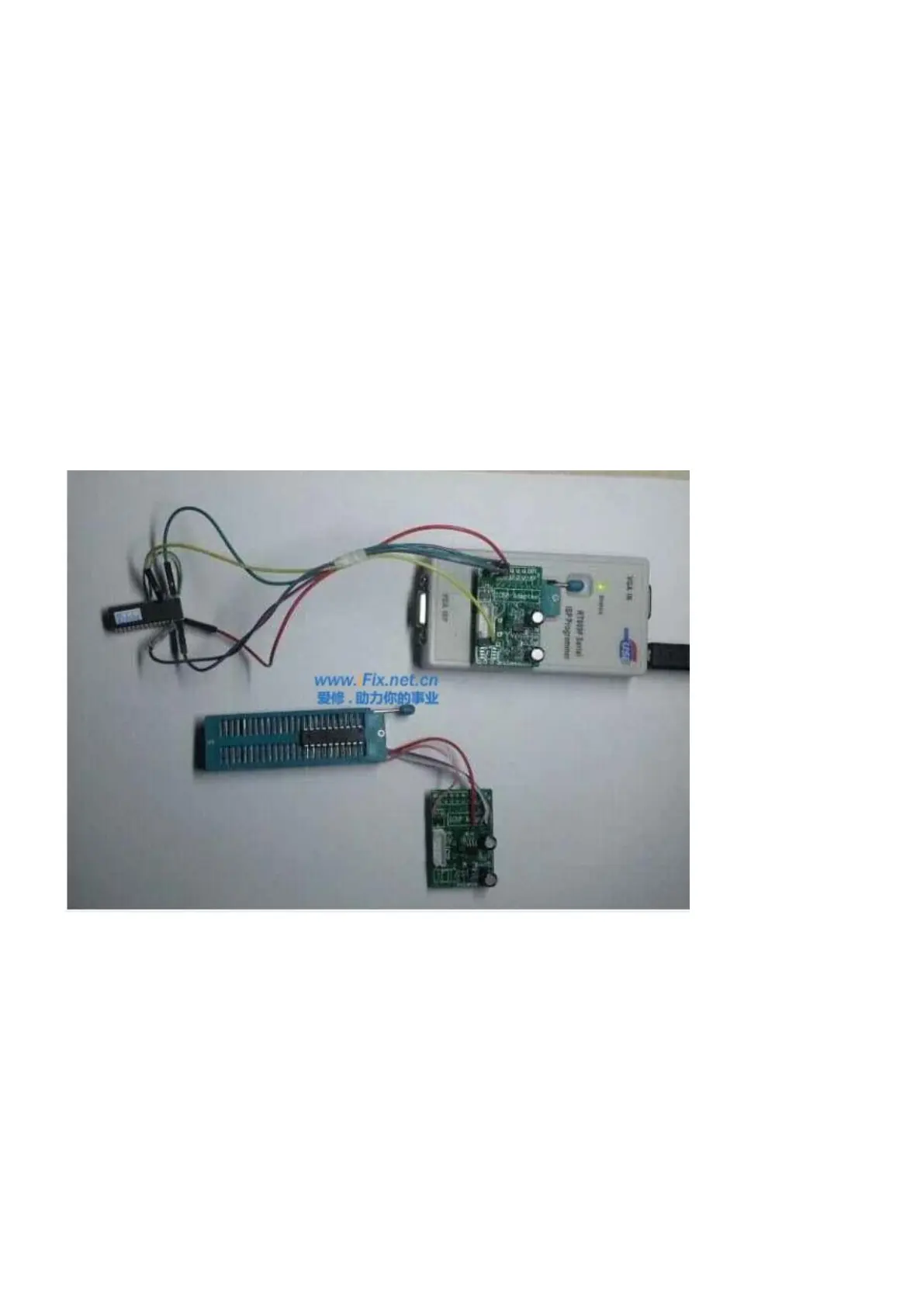

The material connection picture of S3F9454/S3F9498 with RT809F
The connection definition of S3F series with ICSP port board
