ifm Operating Instructions IO-Link Master with Profinet interface PowerLine 8 Ports IP 65 / IP 67 (AL1202) 2017-06-02
Configuration
3 Add IO-Link ports

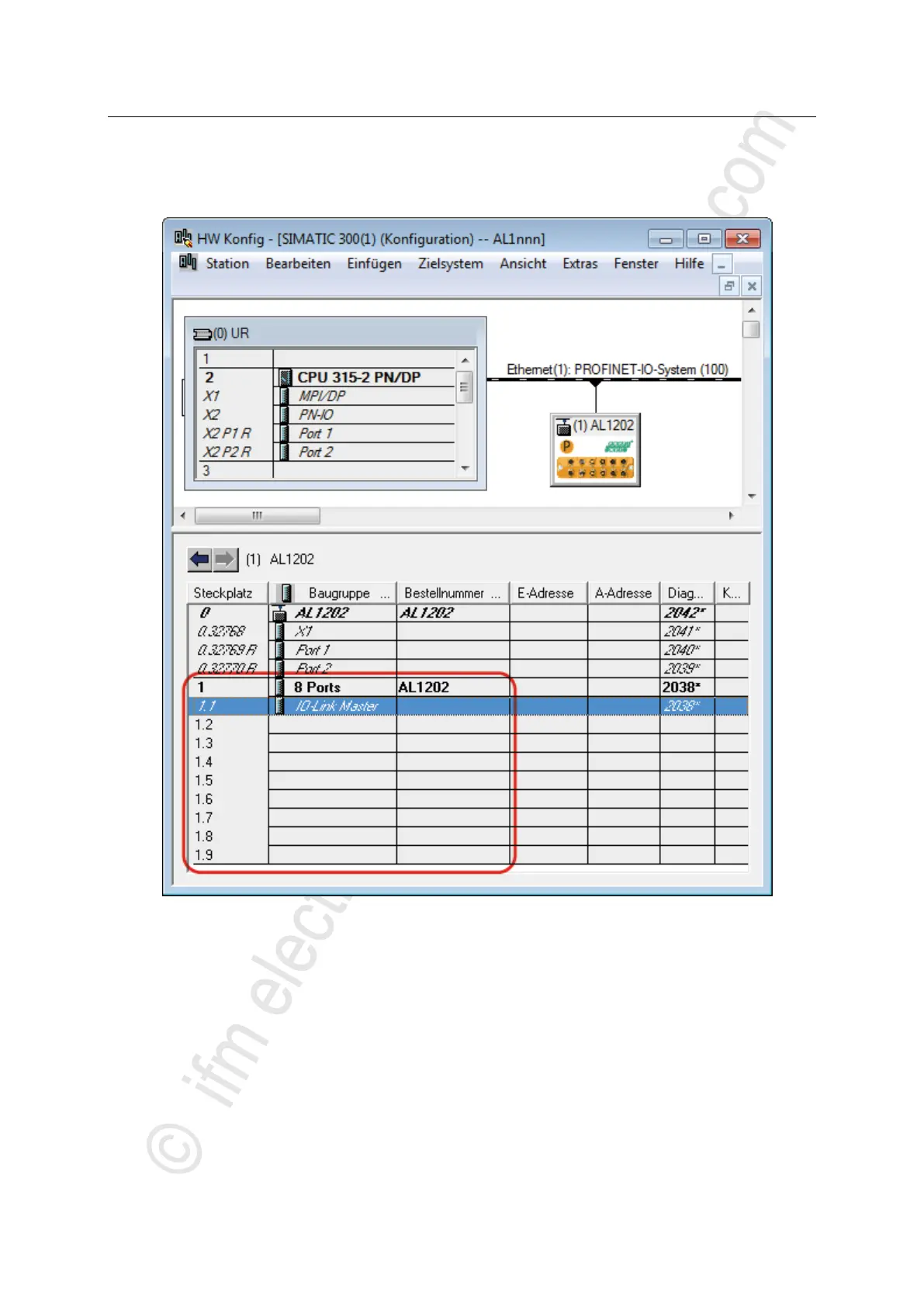

► Move the [8 Ports] node via drag&drop from the hardware catalogue to slot 1 of the AL1202.
> Step 7 shows available IO-Link interfaces.
► Save the project.
