Response of the outputs in case of a parameter setting fault [PARA]:
OUT1 OUT2
Invalid setting [OU1] / [OU2] OFF OFF
Invalid setting [FOU1] / [FOU2] OFF OFF
Invalid setting [P-n] OFF OFF
Invalid setting of other parameters acc. to setting [FOU1] acc. to setting [FOU2]

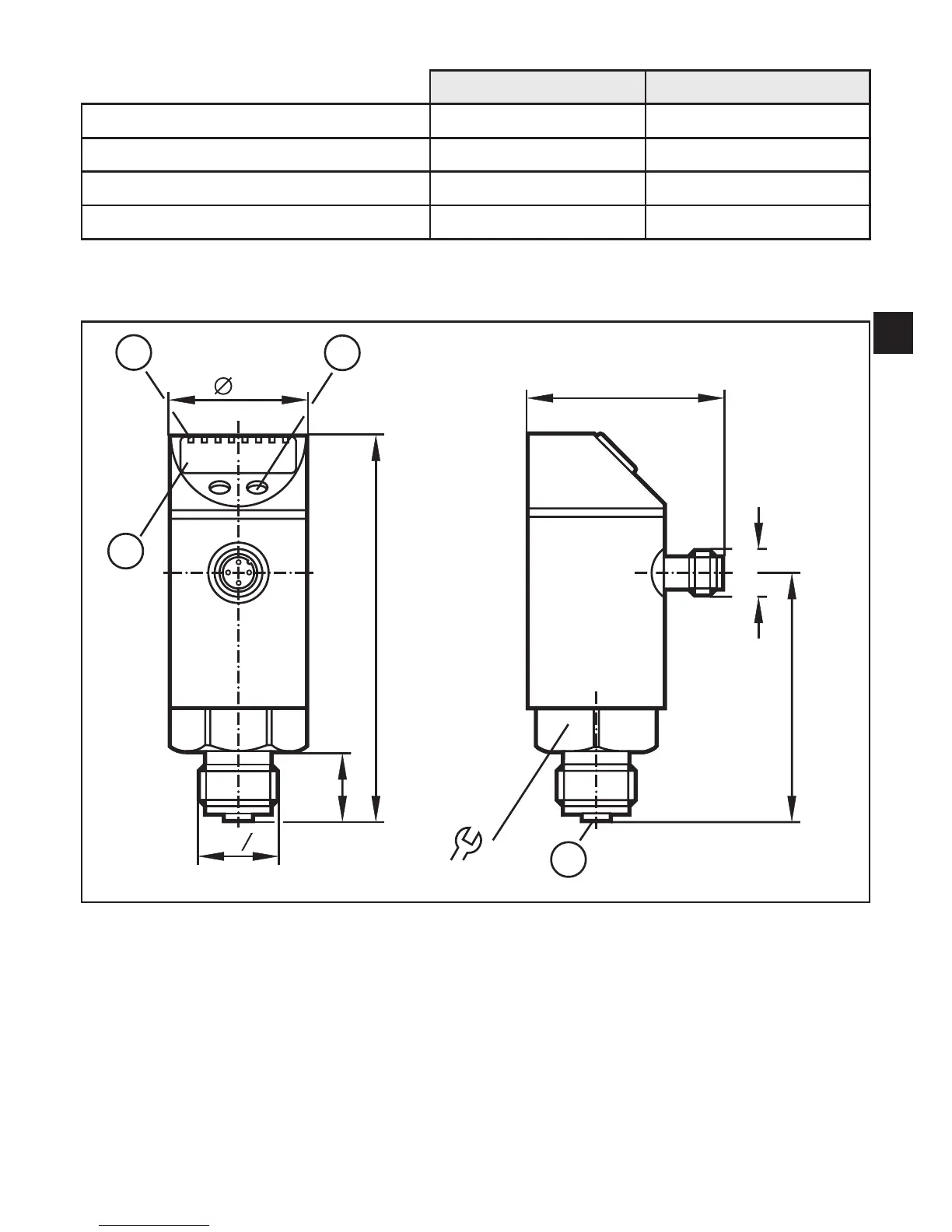

11 Scale drawing












 

Dimensions in mm
1: Display
2: LEDs
3: Programming button
4: Connector for temperature sensor (M12x1)
