Ifor Williams Trailers HBX - 5 Operation of Internal Fitments; 5.1 Understanding Your Stalls

25
5 OPERATION OF
INTERNAL FITMENTS
The HBX uses a system of longitudinal
partitions mounted on a central column.
They are fixed into place with the breast
bars. The partitions can be easily moved and
removed with the help of an assistant.
NOTE. It is illegal to carry two or more horses
in an un-partitioned trailer.
INNER HANDLE
OUTER HANDLE

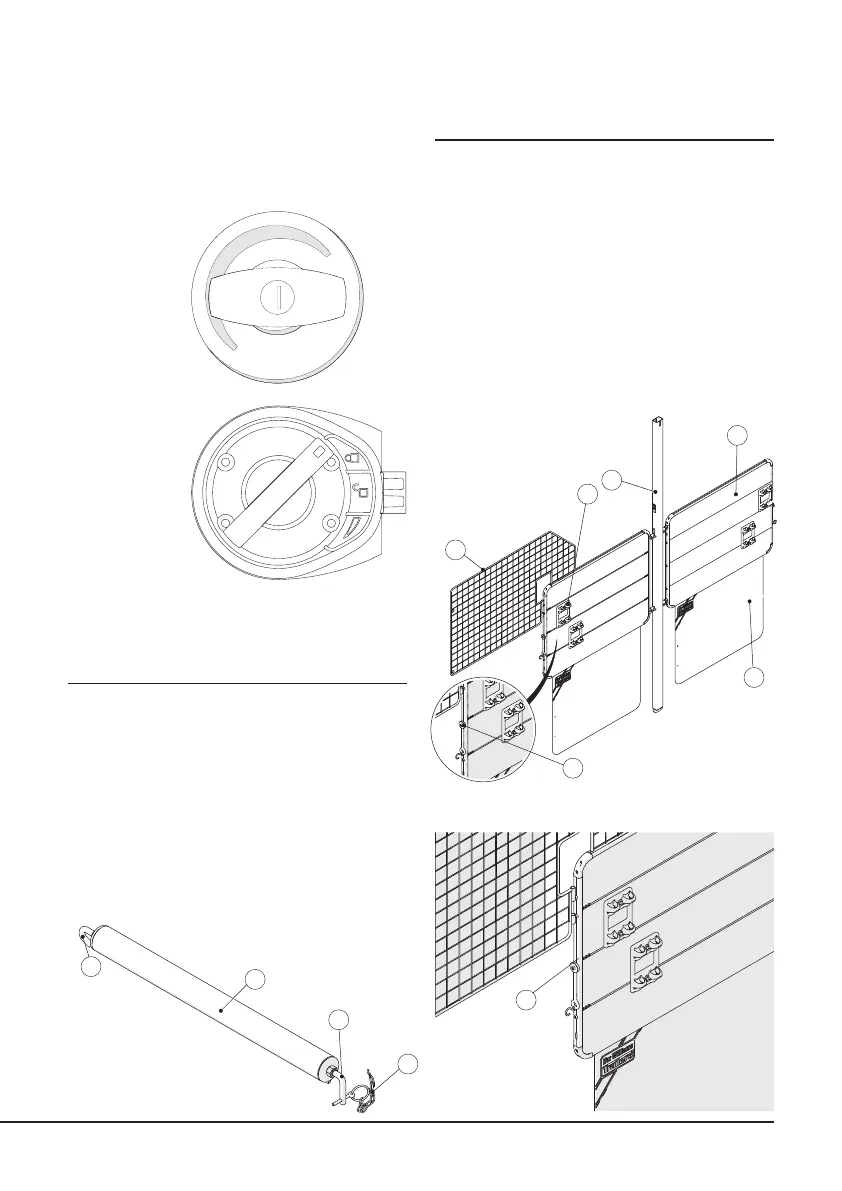

5.1 UNDERSTANDING
YOUR STALLS
1. Rear partition leaf.
2. Centre Pole.
3. Head partition (optional).
4. Skirt.
5. Rubber banjo.
6. Breast bar bracket.
7. Breeching/breast bar.
8. Hook end fitting.
9. Pin end fitting.
10. Linch pin & chain.
BREECHING/BREAST BAR
BREAST BAR BRACKETS
6
1
6
2
3
4
5
7
8
9
10
4
6
1
2
3
7. To close from the inside, pull the inner
handle towards you ensuring your fingers
are clear of the door and pull firmly.
8. Lock the door from the inside, by turning the
rotary handle anti-clockwise to the closed
padlock symbol.
