3. Insert breast/breeching bar pin end into
wall mounted bracket, ensuring that the
breast/breeching bar is level and at right
angles to the wall and partition.
4. Insert linch pin through the hole in breast/
breeching bar pin end.
5. Repeat for the other side.
6. When the optional head partition is
fitted only. For the front partition, secure
the front head partition using the two
rubber straps.
5.2.3 REMOVING THE
PARTITION LEAVES

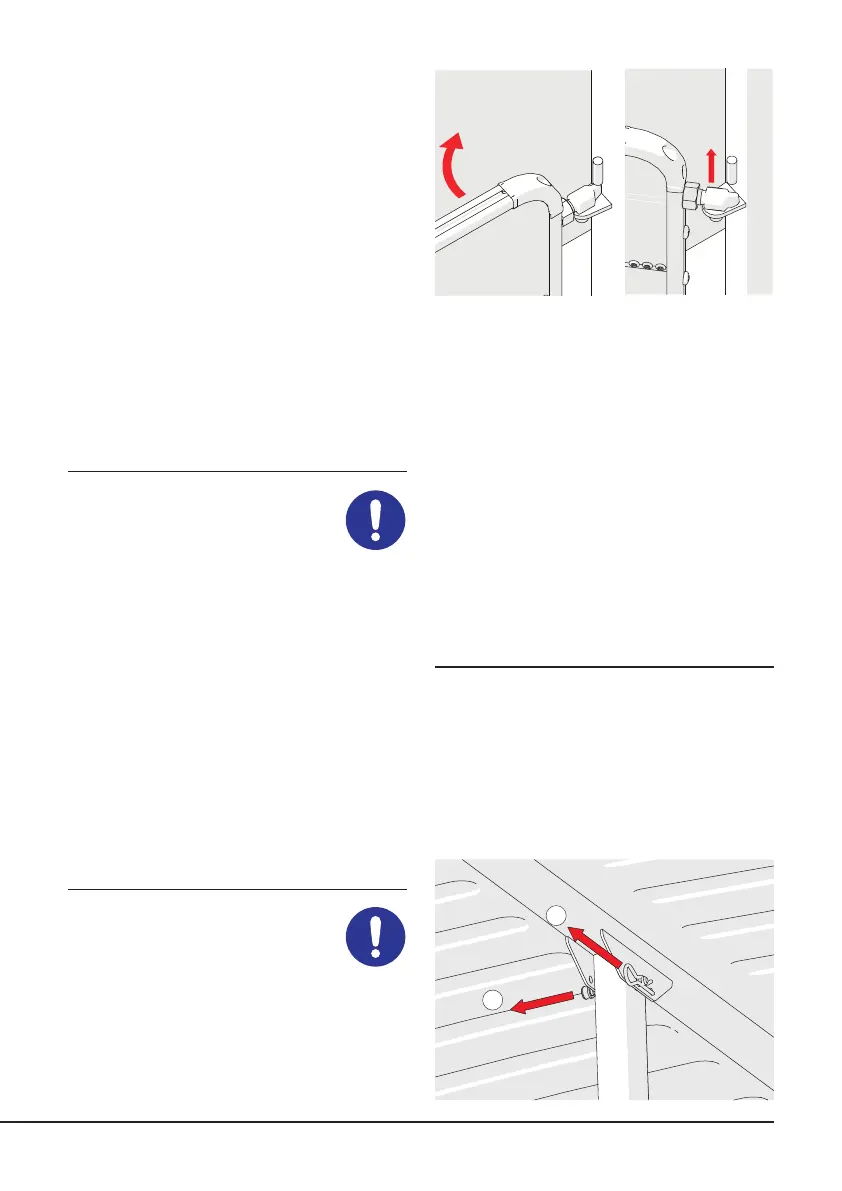

The partition can only be removed
when it is open and the breast/
breeching bars have been removed.
1. Rotate the partition as the
partition cannot be removed until the
shaped hinge can pass the lug on the
central pole.
2. Once rotated, and with a helper, the
partition can be lifted upwards which
releases the hinges from the central pole.
3. Move the partition to a safe location.
5.2.4 INSTALLING THE
PARTITION LEAVES
The partition can only be hooked
into position when it is in the
open position, employ the use of a
helper to carry out this task.
1. Angle the partition relative to the centre
of the trailer as the partition cannot be
installed until the shaped hinge can pass
the lug on the central pole.
2. Once angled correctly, hook the top and
bottom hinges onto the central pillar and
lower until fully engaged.
3. Double check that both hinges are located
correctly before releasing the weight of
the partition.
5.3 REMOVING AND
INSTALLING THE
PARTITION CENTRE
POLE
5.3.1 REMOVING THE PARTITION
CENTRE POLE
1. Ensure all partition leaves are removed
from the trailer.
2. Remove R-clip from the pin at the top
of the centre pole.
