Page | 17
3.4.2.1 – Tipping the Trailer Body.
• Connect remote control to socket
• Insert key into isolator switch and turn clockwise 90° to switch on the system.
• Ensure pressure release valve is closed (turned fully clockwise).

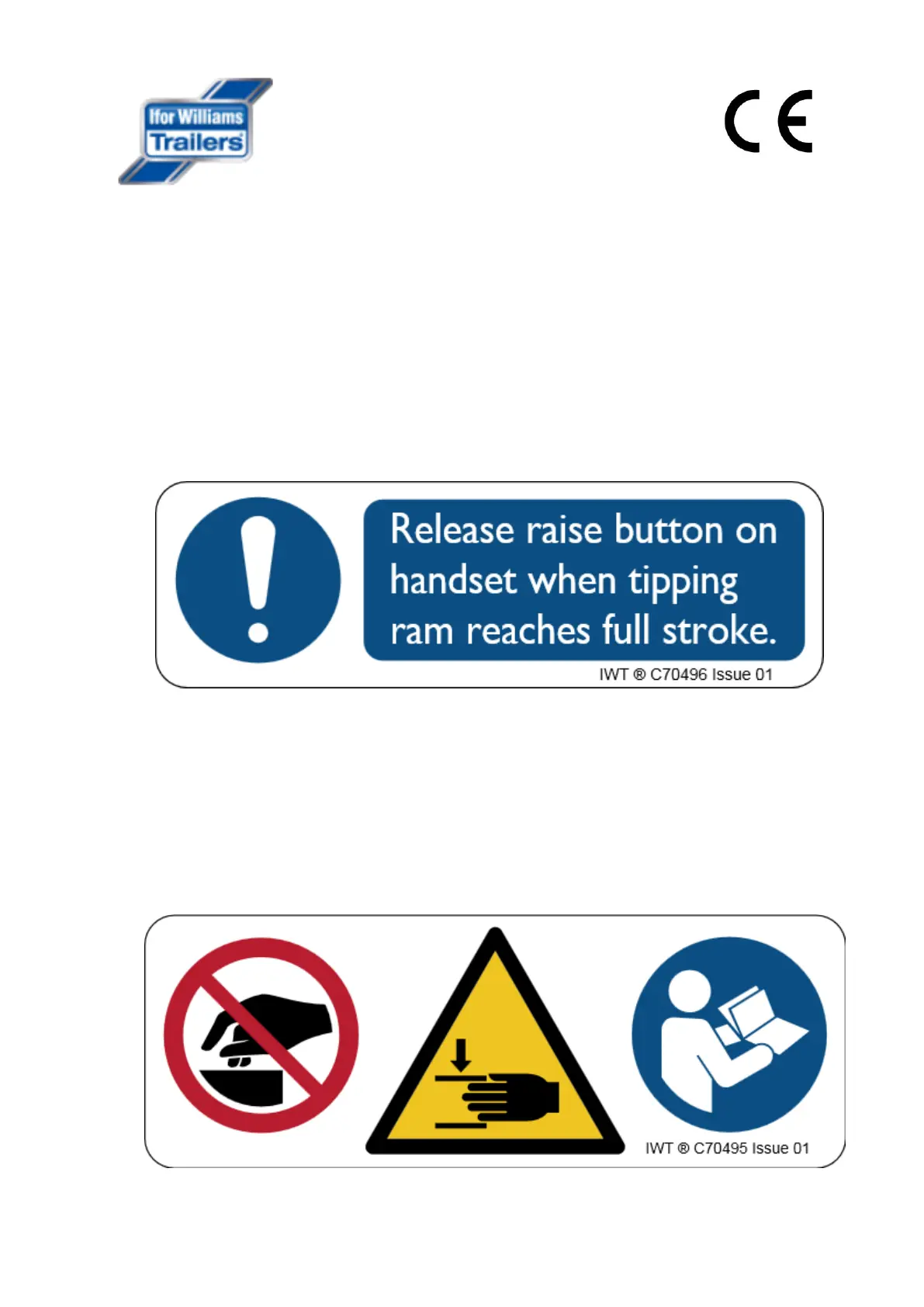

• Using the remote control, press the ‘up button’ to raise the trailer body, release to stop. It is
important to release the raise (up) button on the handset as soon as the ram reaches full
stroke.
•
When using the remote control, note the battery indicator lights. Green indicates battery
charge is sufficient. If the red light is showing, this indicates the battery needs charging. Use
the manual override until the battery has been charged.
3.4.2.2 – Lowering the trailer bed/body.
• Ensure that the area between the chassis and platform is clear of obstruction.
• Do not rest a hand on the control box lid.
