3.5.1- Removing skids

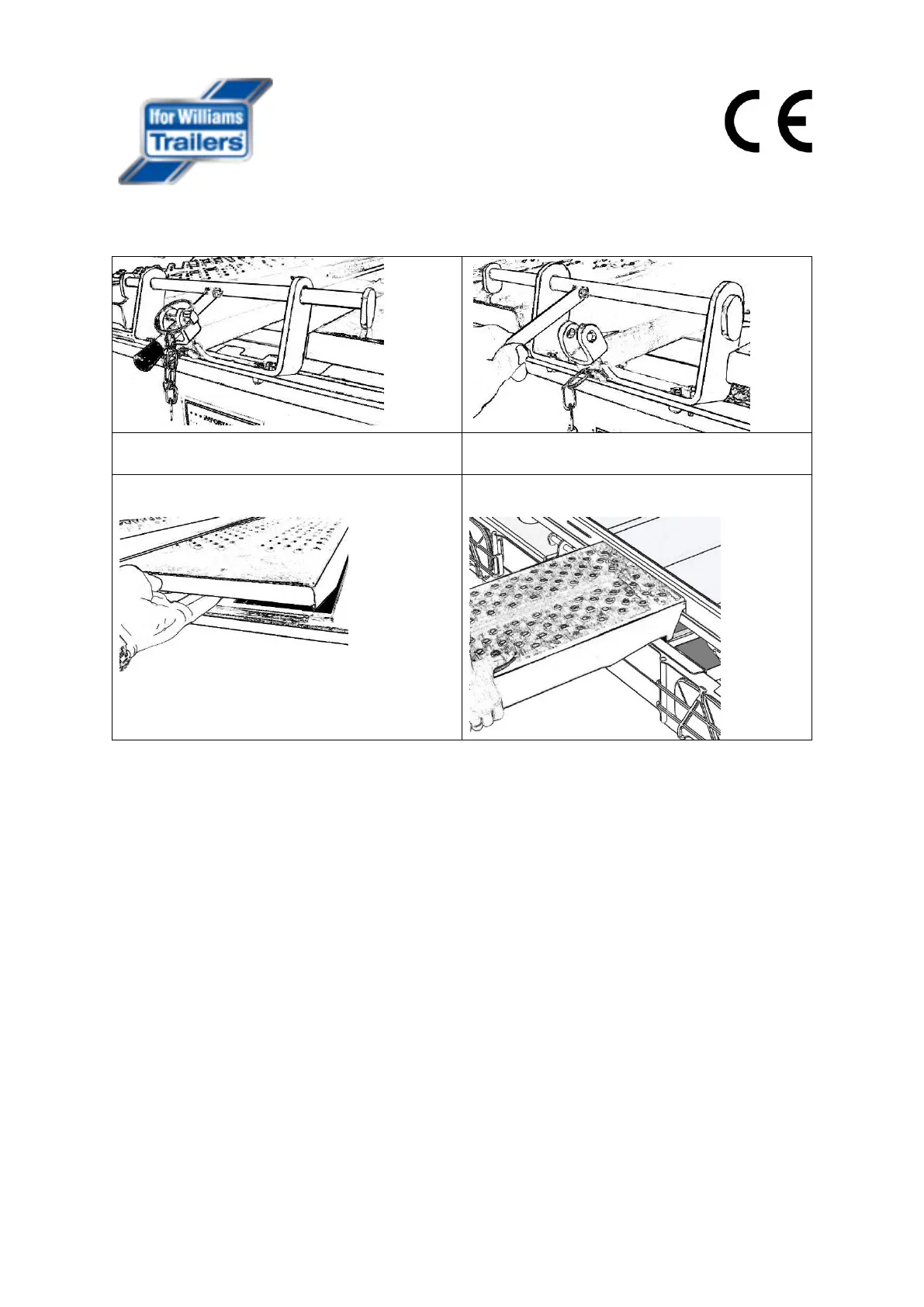

Figure 11 (Above) / Figure 13 (Below)
Figure 12 (Above) / Figure 14 (Below)
• The skids are stowed under the trailer body and are removed from the rear of the trailer. It is
strongly recommended that any lifting or positioning of the skids is carried out by two
persons. (Each skid weighs approximately 40kg).
• Lift the spring ring and withdraw the linchpin. Lift the handle to release the skid retainer
clamp (fig 11).
• Move the handle to the left to remove the right skid or to the right to remove the left skid
(fig 12).
• Lift the rear of the skid and slide out slightly (fig 13).
• Slide the skid out. It is prevented from sliding all the way out by a stop. Lift the front end of
the skid clear of the stop and slide out slowly.
• Hook the skid onto the skid bar in the required position (fig 14)
