IGBT MIG-270 - MIG-S2 Series Panel Introduction; Panel Components and Functions; Gas vs. Gasless Welding Setup

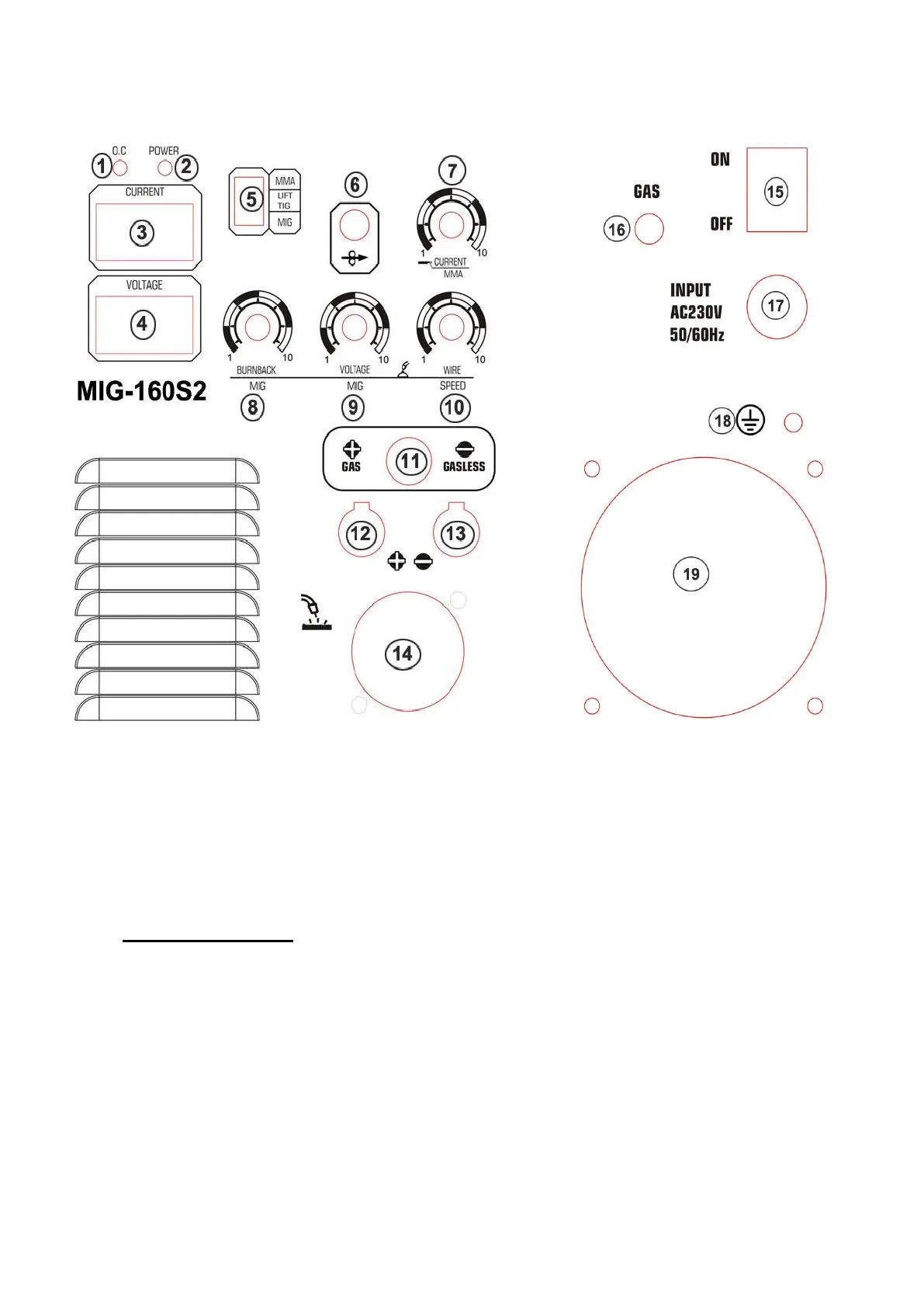

MIG-S2 SERIES PANEL INTRODUCTION
○
1 , Over-Heat Alarm
○
2 , Power Indicator
○
3 ,Welding Current Display
○
4
, MIG Welding Voltage Display
○
5
, Switch for mode of MMA/LIFT-TIG/MIG
○
6 , Welding Wire Inching
○
7 , MMA Welding Current Adjustment
○
8 , MIG Burnback Function
○
9 , MIG Voltage Adjustment
○
10 ,MIG Wire Speed Adjustment
○
11
, Polarity Conversion Cable Connector,
Note: VERY IMPORTANT!
A), When use gas welding (solid wire), Install
○
11 into
○
12 , and install earth clamp with
cable into
○
13
.
A), When use gasless welding (Flux wire), Install
○
11 into
○
13 , and install earth clamp
with cable into
○
12 .
○
12
, Positive Polarity Connector (+)
○
13
, Negative Polarity Connector(-)
○
14
, MIG Welding Torch
○
15
, Power Switch for ON/OFF.
○
16
, Gas Hose Inlet Connector
○
17
, Power Cable with Plug.
○
18
, Ground Nut.
○
19
built-in cooling fan and ventilation.
