7

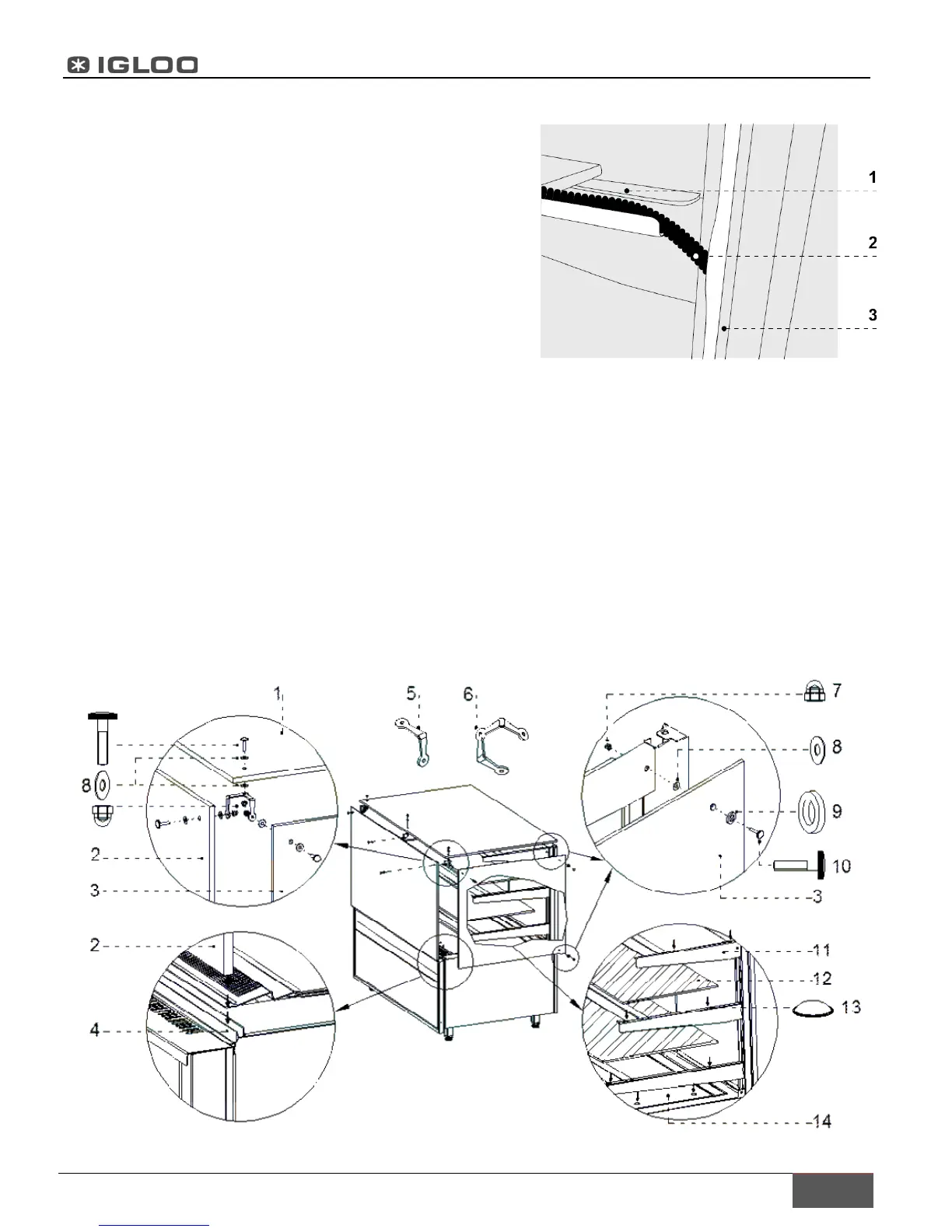

Figure 3 Hook height control
1 – Hook
2 – Protective pipe covering lamp cord
3 – PVC profile hiding the vertical frame post
When changing the height position of the hook, draw the PVC
profile aside slightly and pull the protective pipe to the desired
position. Next remove the hook from the rack and place it in the
suitable position and at the suitable angle.
7 – Acorn nut of the screw
8
– Silicon pad
9
– Plasticizer pad
10
– Screw
11
– Inner frame
12
– Display glass shelves (of the frame)
13
– Bumper pads
14
– Inner surface
Figure
4 Assemble of glass elements
1
– Upper glass shelf
2
– Front glass pane
3
– Glass side
4
– Front glass pane grip
5
– Two sided angle for mounting of glass panes (to
CURP4
– connecting the middle part of the front glass
with the upper glass shelf)
6
– Three-sided angle for mounting of glasses (for
connecting the front glass with the glass side)
