2.3. Technical data
Table 1 Technical data
Data Type of the device
ELBA
Power supply [V/Hz] 230/50
Rated current [A] 2,9
Rated lighting power [W] 51
Electric energy consumption [kWh/24h] 10
Usable volume [dm3] 500
Number of shelves [items] 6
Shelf dimension [mm] 470 x510
Maximal load of 1 shelf [kg] 30
3. PREPARING THE DEVICE FOR EXPLOITATION
3.1. Requirements concerning the place of installation
• Verify whether the cross-section of feeding conduits is proper for the power consumption of the installed device
• It is forbidden to connect the device by means of extension cords or dividers
• The device should be connected to the separate, properly made electric circuit with plug-in socket with protecting
pin (according to PBUE /Regulations concerning Electric Equipment Construction/)
• The socket should be protected with time delay cut out of proper value
ELBA C10
The device may be actuated solely after confi rmation of the fi re protection effi ciency with results of
measures performed according to binding regulations!
1 – Illuminated advertisement panel
(lifted)
2 – Cabinet control panel (switches/
temperature regulator panel)
3 – Glazed door (divided)
4 – Feet used for levelling the device
5 – Evaporator (removing the con-
densate)
6 – Data plate
7 – Cooling aggregate
8 – Door grip
9 – Price strip of the shelf
10 – Plastifi ed grid shelves with layout
regulation

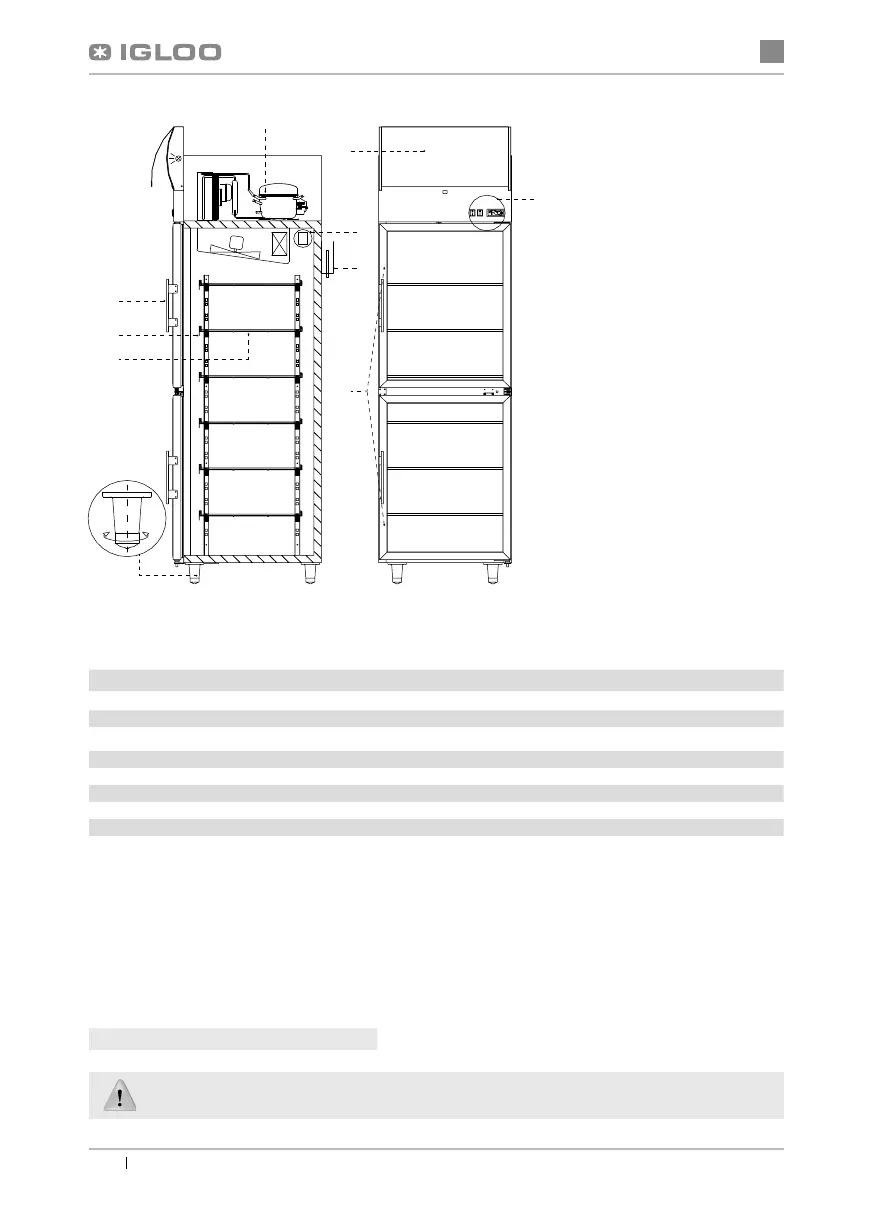

Fig.1 Construction of the device
NS-069 XXX
MASA xxx
NAPIECIE ZNAM. xxx
MOC ZN. OŒW. xxx
MOC GRZA£EK. xxx
NAPIECIE ZNAM. xxx
KLASA URZADZ. xxx
Typ NAZWA URZ¥DZENIA
PR¥D ZNAM. xxx
1
8
9
10
4
3
6
2
5
7
