SAMOS DEEP LINE ASSEMBLY INSTRUCTIONS
IGLOO Stary Wiśnicz 289, 32-720 Nowy Wiśnicz, Tel. 14 662 19 10 / Fax: 14 662 19 12 info@igloo.pl / www.igloo.pl
en
LINE ASSEMBLY INSTRUCTIONS REVISION
PAGE: 4/10TYPE: SAMOS DEEP NO. DATE NO. DATE
DOCUMENTATION NO.: A D
NO: 5,6,7 B E
DATE of 1st issue:
26.05.2019
C F

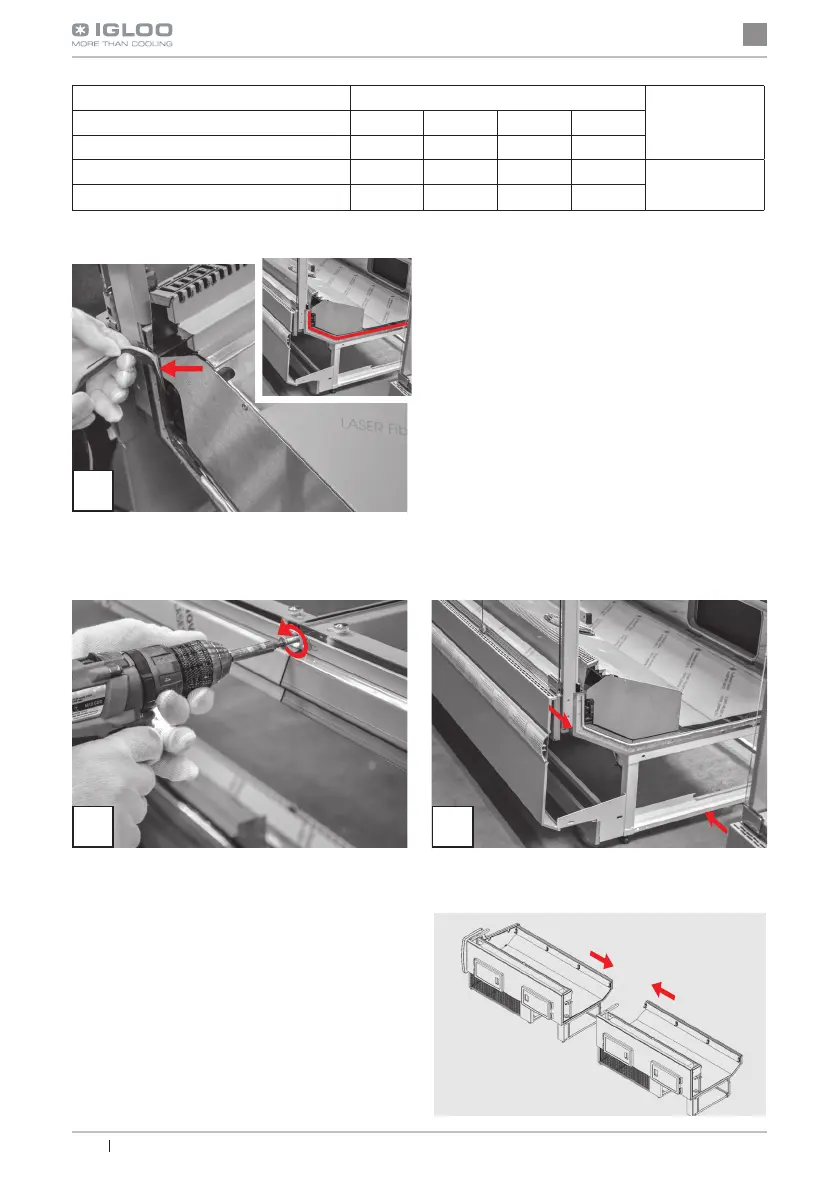

Apply the sealant mastic
The space betweenb the counters is sealed by means
of mastic formed into rolls placed on the tape. Apply
the sealant mastic on one counter only.
• Gently tear o󰀨 one roll from the tape, remove the
paper cover and glue in the place shown in the
photograph. In order to glue, press the mastic with
your ngers to the counter body via the tape, and
later tear o󰀨 the tape. Apply the sealant mastic only
on the lateral prole of the sheet which is the body
interior. Do not apply the sealant mastic on the
wooden body reinforcements.
ATTENTION! Imprecise sealing of the counters will not
ensure tightness of the line.
Place the modules (single counters)
in line
Remove the socket head cap screw near
the top lamp
5
6 7
