SAMOS DEEP LINE ASSEMBLY INSTRUCTIONS
IGLOO Stary Wiśnicz 289, 32-720 Nowy Wiśnicz, Tel. 14 662 19 10 / Fax: 14 662 19 12 info@igloo.pl / www.igloo.pl
en
LINE ASSEMBLY INSTRUCTIONS REVISION
PAGE: 8/10TYPE: SAMOS DEEP NO. DATE NO. DATE
DOCUMENTATION NO.: G003_01PG A D
NO: 15,16,17 B E
DATE of 1st issue:
26.05.2019
C F

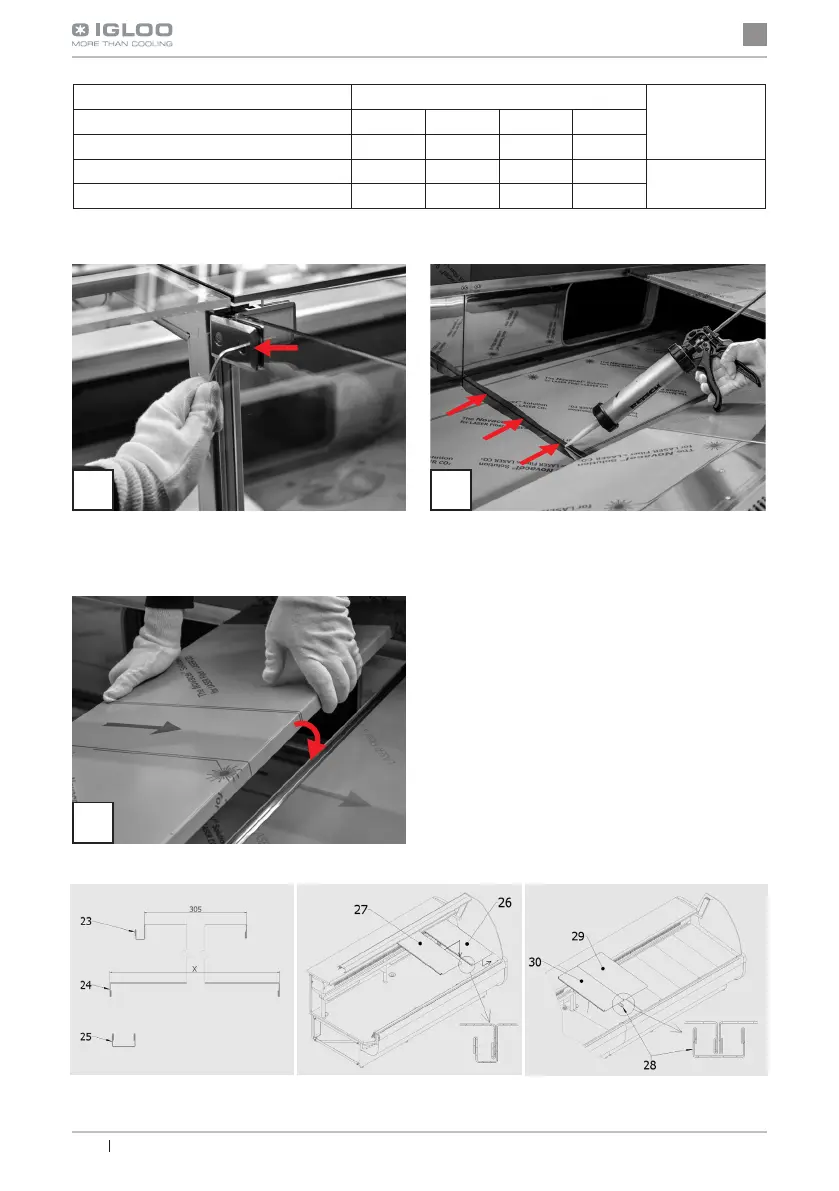

Adjust front glass panels
Place the shelves
Apply sealant on the modules joints
Display shelves consist of three part types:
- Display shelve 305 [detail 23]
- Fit part [detail 24]
- Connector [detail 25]
• Start installing the shelves on the right-hand side.
• First install the shelve 305 [detail 26]. Install the
next shelves 305 on the so-called n of the previous
shelf [detail 27]. Finally install the t part suitable
for the module length.
• Place the connector [detail 28] under the t part of
the previous module [detail 29] and shelf 305 of the
next module [detail 30]
15
17
16
