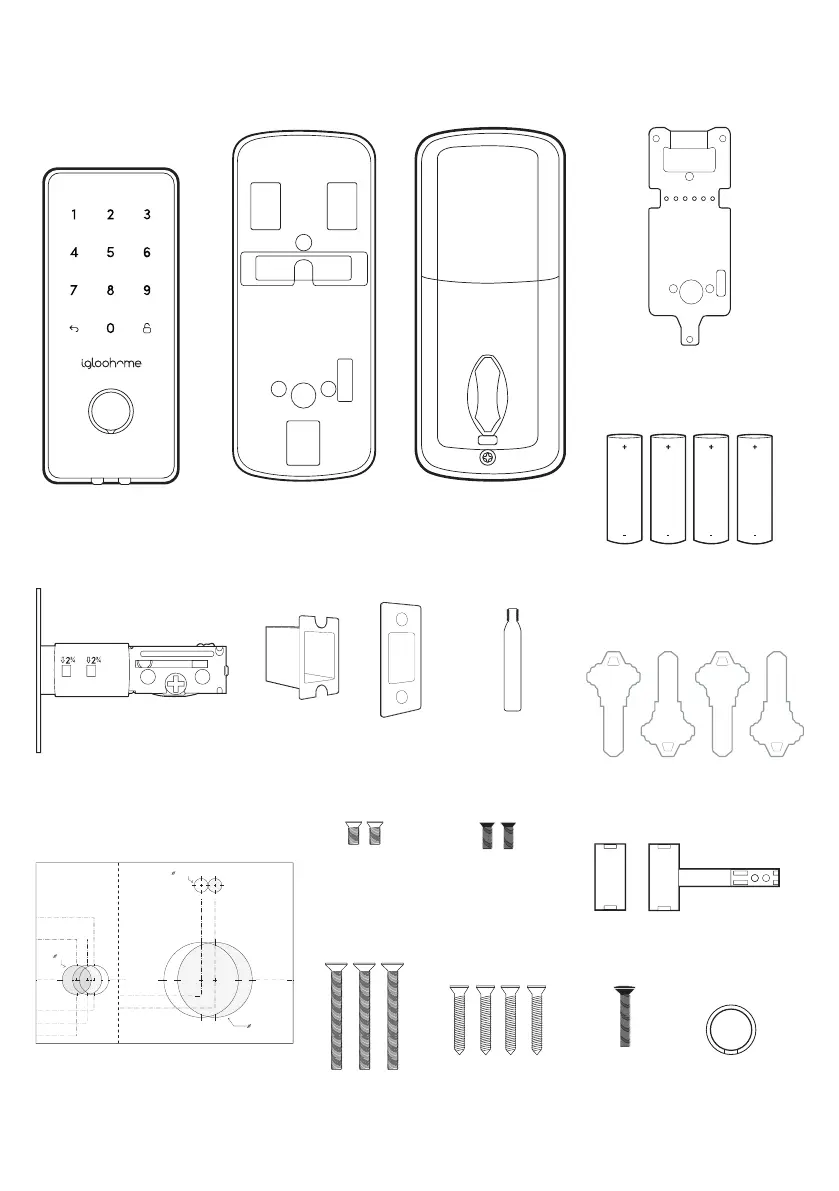

What’s Included
Front Assembly
& Rubber Gasket
Back Assembly
Rubber Gasket
Back Assembly
AA Alkaline Batteries x4
Bolt Assembly
Keys x4
Screw Holder
Back Plate
Strike Plate Housing &
Strike Plate
Drill Sheet 43mm (1.69”)
Bolt Screw x3
5mm (0.019”)
Bolt Screw x2
22mm (0.87”)
Wood Screw x4
8mm (0.03”)
Bolt Screw x2
20mm (0.78”)
Bolt Screw
Keyhole
Cover x1
Door Sensor & Magnet
Edge of the door
Face of the door
Fold this line
60mm (2-3/8”) backset
70mm (2-3/4”) backset
Centerline
10mm (Optional)
54mm
Door Thickness
Drill for:
Drill for:
35mm (1-3/8”)
Drill for:
45mm (1-3/4”)
Drill for:
60mm (2-3/8”)
Drill for:
70mm (2-3/4”) backset60mm (2-3/8”) backset
Drill for: Drill for:
Drill a 25mm (1”) hole at the center
of door edge based on your
Door Thickness measurements
25mm
Drill Sheet
Version 0.2 03/18
