Ikco SAMAND Service Manual

Samand
8

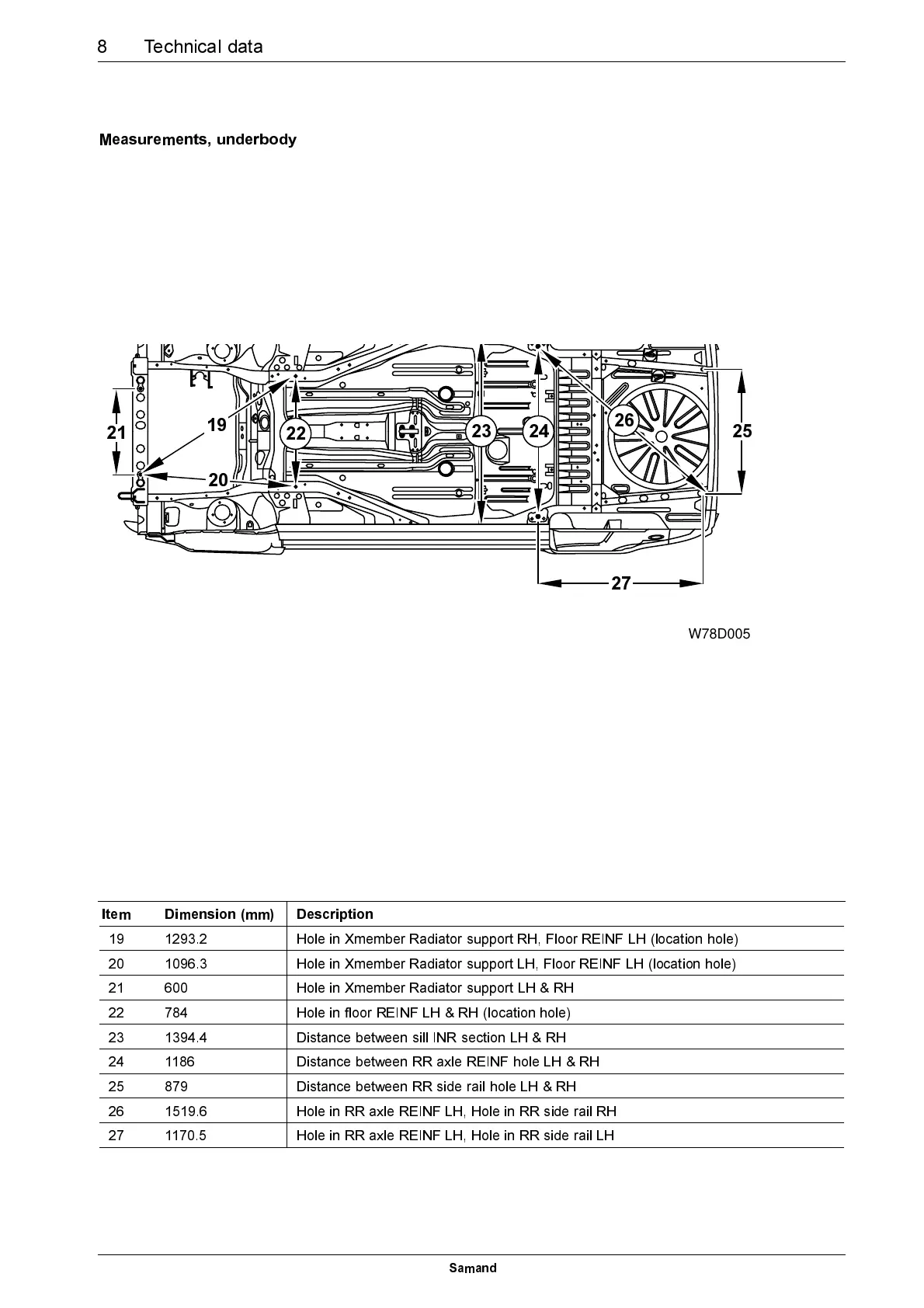

Technical data
Measurements, underbody
W78D005
23
22
19
21
20
26
24
25
27
Item Dimension (mm) Description
19 1293.2 Hole in Xmember Radiator support RH, Floor REINF LH (location hole)
20 1096.3 Hole in Xmember Radiator support LH, Floor REINF LH (location hole)
21 600 Hole in Xmember Radiator support LH & RH
22 784 Hole in floor REINF LH & RH (location hole)
23 1394.4 Distance between sill INR section LH & RH
24 1186 Distance between RR axle REINF hole LH & RH
25 879 Distance between RR side rail hole LH & RH
26 1519.6 Hole in RR axle REINF LH, Hole in RR side rail RH
27 1170.5 Hole in RR axle REINF LH, Hole in RR side rail LH
