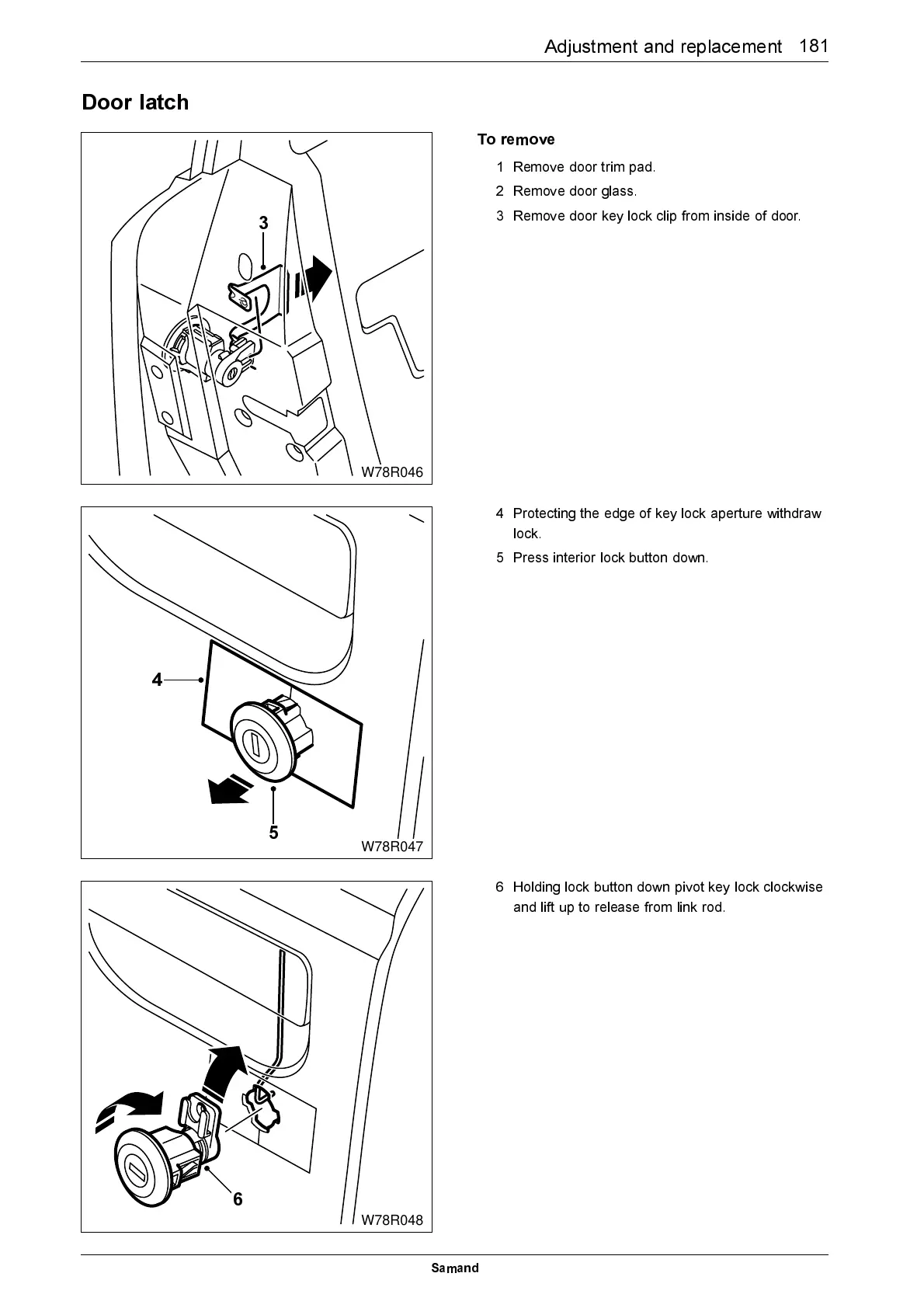

181
Samand
Adjustment
and
replacement
W78R046
3
W78R047
4
5
W78R048
6
Door
latch
T
o
remove
1
Remove
door
trim
pad.
2
Remove
door
glass.
3
Remove
door
key
lock
clip
from
inside
of
door
.
4
Protecting
the
edge
of
key
lock
aperture
withdraw
lock.
5
Press
interior
lock
button
down.
6
Holding
lock
button
down
pivot
key
lock
clockwise
and
lift
up
to
release
from
link
rod.
