8 AA-2194876-2
NOTE TO ELECTRICIAN: The armored cable leads
supplied with the appliance are UL-recognized for
connection to larger gauge household wiring. The
insulation of the leads is rated at temperatures
much higher than temperature rating of household
wiring. The current carrying capacity of the
conductor is governed by the temperature rating
of the insulation around the wire, rather than the
wire gauge alone.

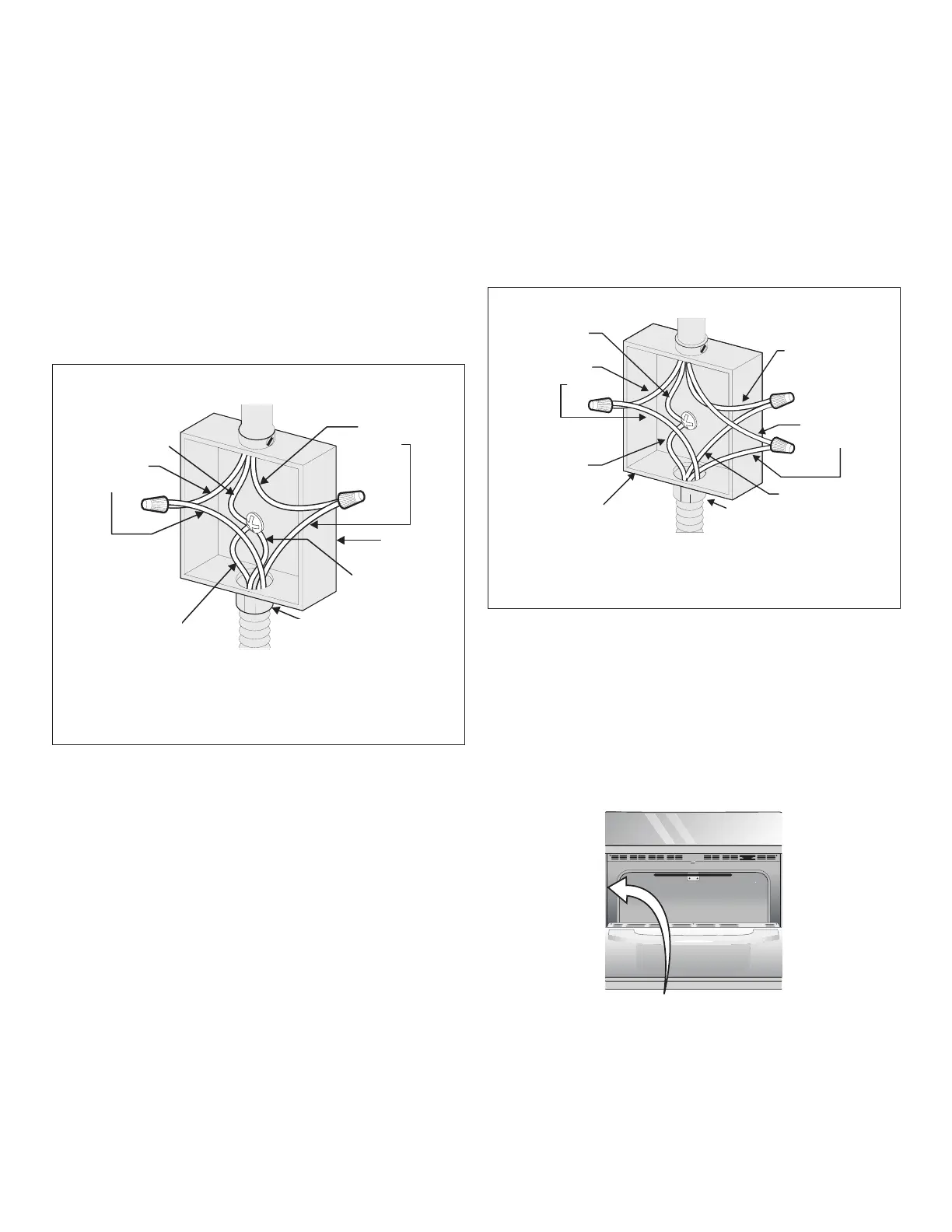

Figure 3
3-WIRE GROUNDED JUNCTION BOX
Cable from Power Supply
Black
Wires
Junction
Box
Ground Wire
(Bare or Green
Wire)
White Wire
(Neutral)
U.L.-Listed Conduit
Connector (or CSA
listed)
Red
Wires
White Wire
(Neutral)
Cable from appliance
Where local codes permit connecting the
appliance-grounding conductor to the neutral
(white) wire (US Only) (see gure 3):
1. Disconnect the power supply.
2. In the junction box:
connect appliance and power supply cable wires
as shown in Figure 3.
Model and Serial Number Location
The rating plate is located along the interior side
trim of the oven and visible when the door is
opened.
When ordering parts for or making inquires about
your oven, always be sure to include the model
and serial numbers and a lot number or letter
from the rating plate on your oven.
Single Wall Oven
Rating Plate Location
If oven is used in a new branch circuit installation
(1996 NEC), mobile home, recreational vehicle,
or where local codes DO NOT permit grounding
through the neutral (white) wire, the appliance
frame MUST NOT be connected to the neutral wire
of the 4-wire electrical system. (see gure 4):
1. Disconnect the power supply.
2. Separate the green (or bare copper) and white
appliance cable wires.
3. In the junction box:
connect appliance and power supply cable wires
as shown in Figure 4.
Cable from Power Supply
White Wire
Junction Box
White Wire
Black
Wires
Red
Wires
Ground Wire
Ground Wire
(Bare or Green
Wire)
U.L.-Listed Conduit
Connector (or CSA
listed)
Figure 4
4-WIRE GROUNDED JUNCTION BOX
Cable from appliance
