10
7. Place the assembled air deflector and duct over the exhaust
outlet from the hood.
8. Reassemble the air deflector to the duct cover bracket with
2 assembly screws.
9. Seal connections with vent clamps.

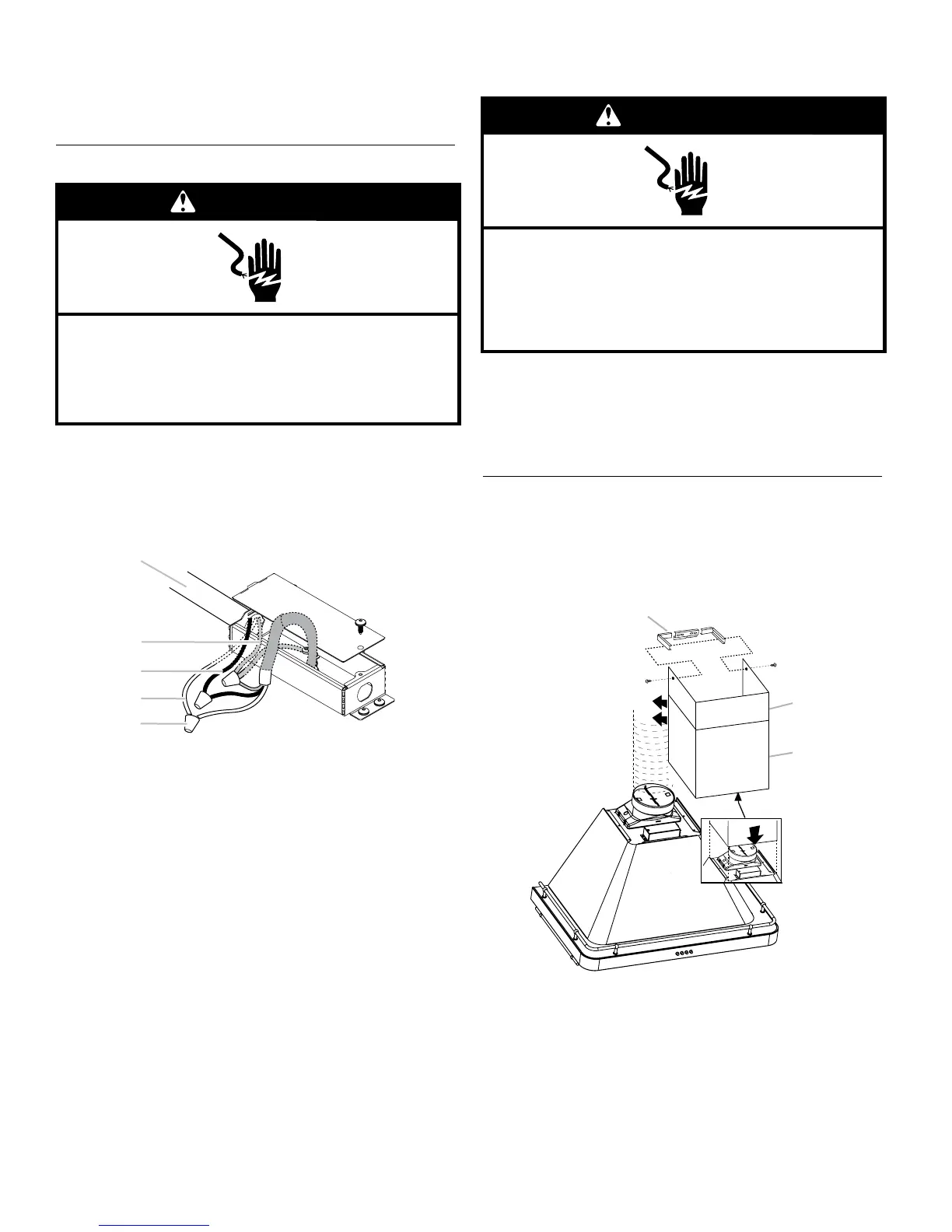

Make Electrical Connection
1. Disconnect power.
2. Remove terminal box cover.
3. Remove the knockout in the terminal box and install a UL
listed or CSA approved ¹⁄
2" strain relief.
4. Run home power supply wiring through ¹⁄
2" strain relief into
terminal box.
A. UL listed wire connectors
B. White wires
C. Black wires
D. Green (or bare) wire connected to
yellow-green wires
E. Home power supply
5. Use UL listed wire connectors and connect white
wires (B) together.
6. Use UL listed wire connectors and connect black wires (C)
together.
7. Connect green (or bare) ground wire from home power
supply to the 2 yellow-green ground wires (D) in terminal
box using UL listed wire connectors.
8. Tighten strain relief screw.
9. Install terminal box cover.
10. Reconnect power.
Install Vent Covers
1. When using both upper and lower vent covers, push lower
cover down onto hood and lift upper cover to ceiling and
install with two 2.9 x 6.5 mm screws.
NOTE: For vented installations, the upper vent cover may be
reversed to hide slots.
A. Upper vent cover
B. Lower vent cover
C. 2.9 x 6.5 mm screws
D. Bracket
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
A
B
C
D
E
WARNING
Electrical Shock Hazard
Electrically ground blower.
Connect ground wire to green and yellow ground wire
in terminal box.
Failure to do so can result in death or electrical shock.
A
B
C
C
D
To Next Page
