IKEA DATID Installation Instructions And Use & Care Guide

9
Install Range Hood
Complete Preparation
1. Determine and make all necessary cuts in the wall for the
vent system. Install the vent system before installing the
hood. See “Venting Requirements” section.
2. Determine the required height for the home power supply
cable and drill a 1¼" (3.2 cm) hole at this location.
3. Run the home power supply cable according to the
National Electrical Code or CSA Standards and local codes
and ordinances. There must be enough ½" conduit and
wires from the fused disconnect (or circuit breaker) box to
make the connection in the hood’s electrical terminal box.
NOTE: Do not reconnect power until installation is complete.
4. Use caulk to seal all openings.

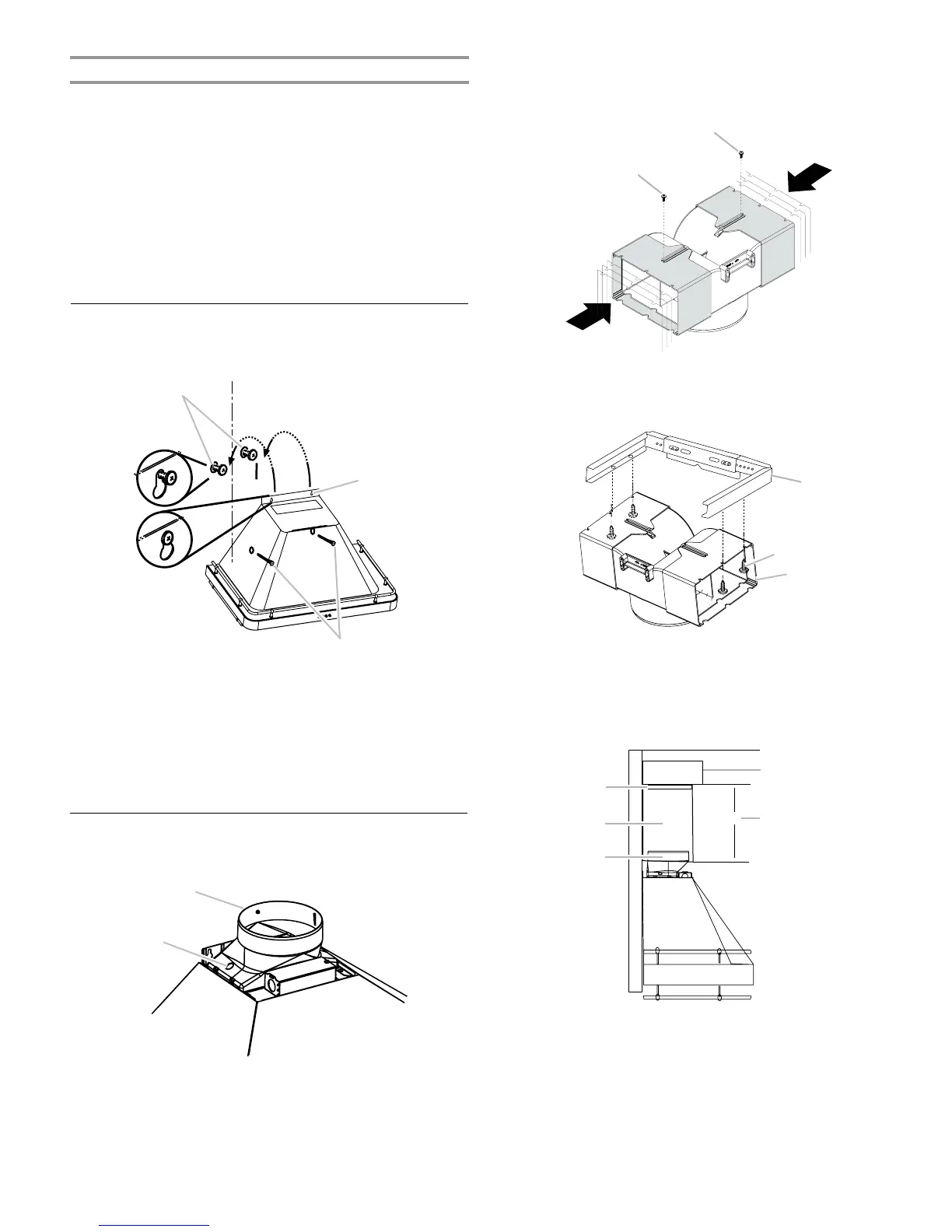

1. Using 2 or more people, hang range hood on 2 mounting
screws through the mounting slots on back of hood.
A. Mounting screws
B. Mounting slots
C. Lower mounting screws with flat washers
2. Remove the grease filter. See “Range Hood Care” section.
3. Level the range hood and tighten upper mounting screws.
4. Install 2 - 5 x 45 mm lower mounting screws with flat
washers and tighten. Use the optional wall anchors if
needed.
Connect Vent System
1. Install transition on top of hood (if removed for shipping) with
2 - 3.5 x 9.5 mm sheet metal screws.
A. Vent transition
B. 3.5 x 9.5 mm screw
For vented installations only:
1. Fit vent system over transition piece.
2. Seal connection with clamps.
3. Check that back draft dampers work properly.
For non-vented (recirculating) installation only:
1. Assemble the air deflector with the two extensions with
2 - 3.5 x 6.5 mm screws provided.
A. 3.5 x 6.5 mm screws
2. Assemble the air deflector with the duct cover bracket with
4 - 3.5 x 6.5 mm screws provided.
A. Vent cover bracket
B. 3.5 x 6.5 mm screws
C. Air deflector
3. Measure from the bottom of the air deflector to the bottom
of the hood outlet.
A. Air deflector
B. Vent clamp
C. X = length to cut vent duct
D. Vent duct
E. Exhaust outlet
4. Cut the duct to the measured size (X).
5. Remove the air deflector.
6. Slide the duct onto the bottom of the air deflector.
A
B
C
A
B
A
A
A
C
X
D
B
E
A
B
C

IKEA DATID Specifications

General

Width	60 cm
Number of speeds	3
Grease filter	Yes
Material	Stainless steel
Voltage	220-240 V
Frequency	50 Hz
Type	Wall-mounted
