5
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
Tools needed
■ Level
■ Drill with 1¼" (3.0 cm), ³⁄
8" (9.5 mm), and ³⁄16" (4.8 mm) drill bits
■ Pencil
■ Wire stripper or utility knife
■ Tape measure or ruler
■ Pliers
■ Caulking gun and weatherproof caulking compound
■ Vent clamps
■ Jigsaw or keyhole saw
■ Flat-blade screwdriver
■ Metal snips
■ Phillips screwdriver
■ Metric hex key set
Parts needed
■ Home power supply cable
■ ½" (12.7 mm) UL listed or CSA approved strain relief
■ 3 UL listed wire connectors
For vented installations, you will also need:
■ 1 wall or roof cap
■ Metal vent system
For non-vented (recirculating) installations, you will also need:
■ Charcoal Filter Kit Part Number W10412939 for non-vented
(recirculating) installations only. See “Assistance or Service”
section to order.
■ 6" (15.2 cm) dia. round metal vent duct - length required is
determined by ceiling height.
Parts supplied
Remove parts from packages. Check that all parts are included.
■ Hood canopy assembly with ventilator and light bulbs installed
■ Vent transition with back draft dampers installed
■ Metal grease filter(s)
■ Vent cover support bracket
■ Mounting template
■ Air deflector with extensions (for non-vented installations)
■ 2-piece vent cover
■ 6 - 3.5 x 6.5 mm screws
■ 2 - 2.9 x 6.5 mm screws
■ 6 - 5 x 45 mm mounting screws
■ 6 - 8 x 40 mm wall anchors
■ T10 Torx
®†
adapter
■ T20
®
Torx
®†
adapter
Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
Have a qualified technician install the range hood. It is the
installer's responsibility to comply with installation clearances
specified on the model/serial rating plate. The model/serial
rating plate is located behind the filter on the rear wall of the
vent hood.
Canopy hood location should be away from strong draft areas,
such as windows, doors and strong heating vents.
Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance.
Grounded electrical outlet is required. See “Electrical
Requirements” section.
The canopy hood is factory set for venting through the roof
or wall. For non-vented (recirculating) Installation see “For
Non-vented (recirculating) Installation Only” in “Connect Vent
System” section. Charcoal Filter Kit Part Number W10412939 is
available from your dealer or an authorized parts distributor.
All openings in ceiling and wall where canopy hood will be
installed must be sealed.
For Mobile Home Installations
The installation of this range hood must conform to the
Manufactured Home Construction Safety Standards, Title
24 CFR, Part 328 (formerly the Federal Standard for Mobile
Home Construction and Safety, Title 24, HUD, Part 280)
or when such standard is not applicable, the standard for
Manufactured Home Installation 1982 (Manufactured Home
Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or
latest edition, or with local codes.
†
®
TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC.
■ 2 - Flat washers
■ 4 - 4.2 x 8 mm screws

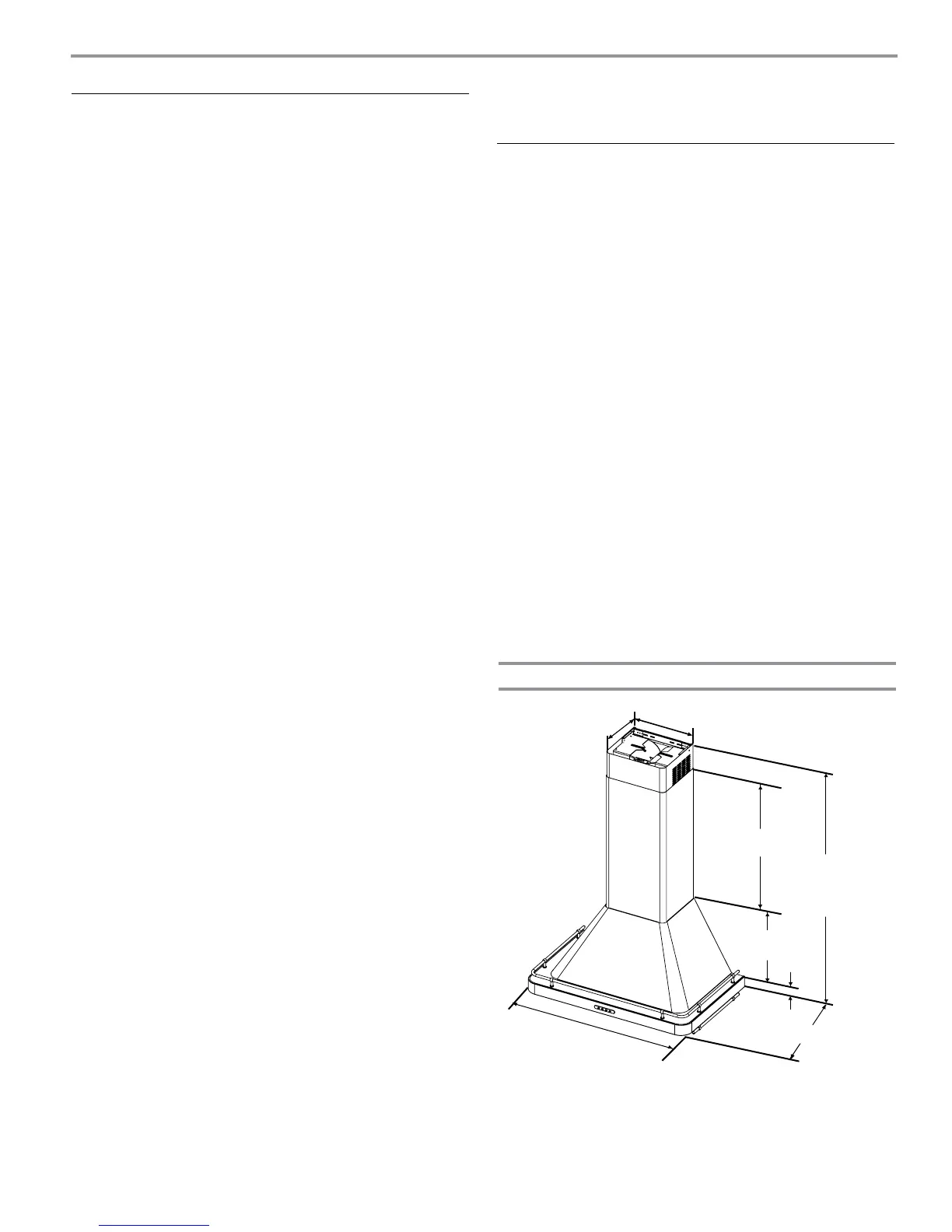

Product Dimensions
*For non-vented (recirculating) installations
**For vented installations
30" (76.2 cm)
9³⁄₈"
(23.8 cm)
10⁷⁄₈"
(27.6 cm)
2" (5.1 cm)
18⁷⁄₈" (48.0 cm)
13³⁄₄"
(34.9 cm)
14"
(35.5 cm)
*32³⁄₈" (82.2 cm) min.
**31³⁄₈" (79.7 cm) min.
*44³⁄₄" (113.7 cm) max.
**41" (104.1 cm) max.
