Installation
ATTENTION: If the appliance must be moved at any time, keep it in
an upright position; if absolutely necessary, it may be tilted onto its
back.
Connectingthewatersupply
Adaptation of the water supply for installation should only be
performed by a qualied technician.
The water inlet and outlet hoses may be positioned towards the right
or the left in order to achieve the best possible installation.
Make sure the dishwasher does not bend or squash the hoses.
Connectingthewaterinlethose
• Run the water until it is perfectly clear.
• Screw the inlet hose tightly into position and turn on the tap.
• If the inlet hose is not long enough, contact a specialist store or an
authorised technician.
The water pressure must be within the values indicated in the
Technical Data table - otherwise the dishwasher may be function
properly.
Make sure the hose is not bent or compressed.
Specicationsfortheconnectionofthewater
Watersupply cold or hot (max. 60°C)
Waterintake 3/4”
Powerofwater
Pressure
0.05 ÷ 1 MPa (0.5 ÷ 10 bar)
7.25 – 145 psi
Supplyhose:
Connectingthewateroutlethose

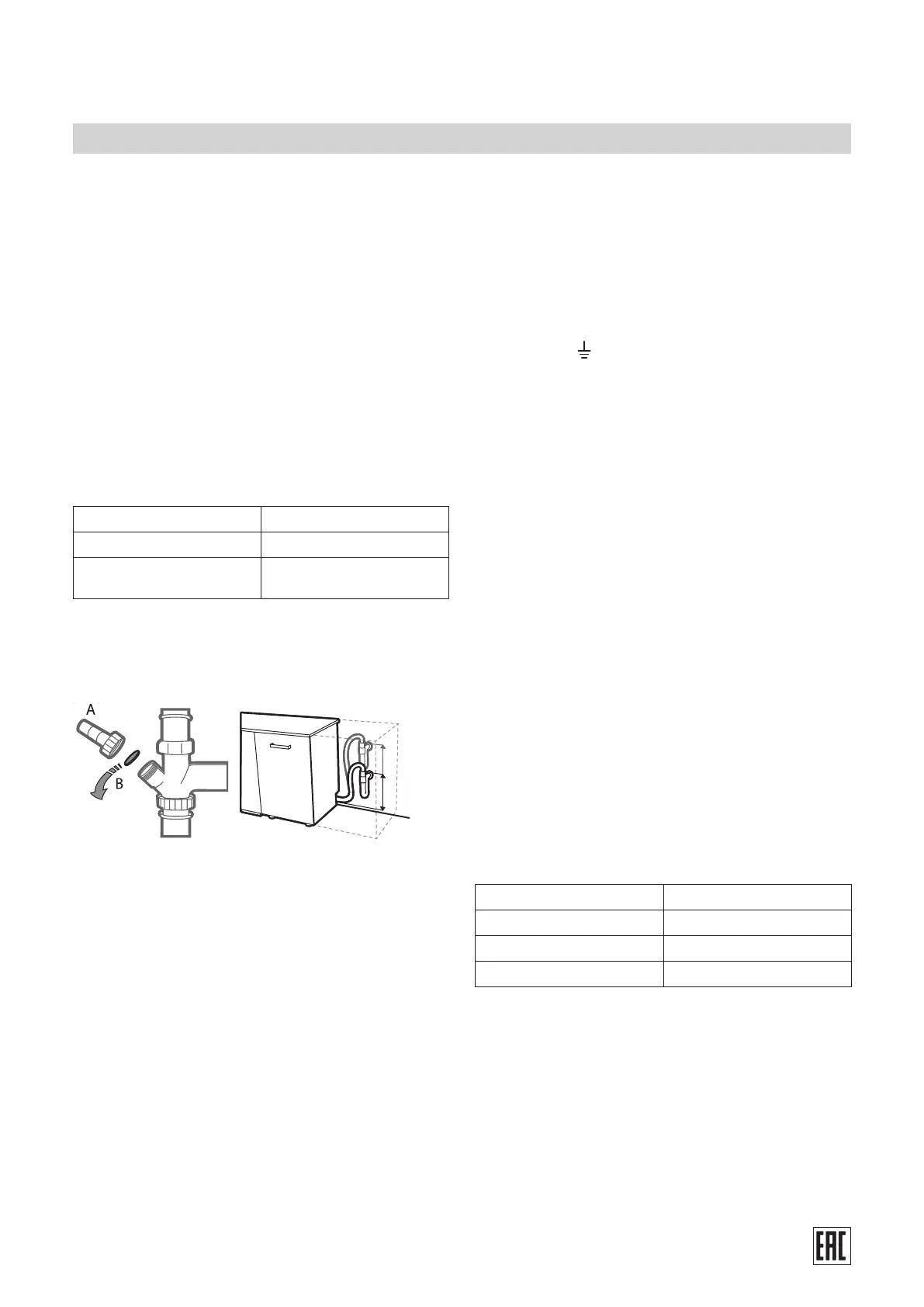

Connect the outlet hose to a drain duct with a minimum diameter of
2 cm A.
INSTALLATION
ENGLISH
ATTENTION: If the appliance must be moved at any time, keep it
in an upright position; if absolutely necessary, it may be tilted onto
its back.
CONNECTING THE WATER SUPPLY
Adaptation of the water supply for installation should only be
performed by a qualified technician
The water inlet and outlet hoses may be positioned towards the
right or the left in order to achieve the best possible installation.
Make sure the dishwasher does not bend or squash the hoses.
CONNECTING THE WATER INLET HOSE
• Run the water until it is perfectly clear.
• Screw the inlet hose tightly into position and turn on the tap.
If the inlet hose is not long enough, contact a specialist store or
an authorised technician.
The water pressure must be within the values indicated in the
Technical Data table - otherwise the dishwasher may be function
properly.
Make sure the hose is not bent or compressed.
SPECIFICATIONS FOR THE CONNECTION OF THE WATER
SUPPLY HOSE:
CONNECTING THE WATER OUTLET HOSE
Connect the outlet hose to a drain duct with a minimum diameter
of 2 cm A.
The outlet hose connection must be at a height ranging from
40 to 80 cm from the floor or surface where the dishwasher rests
Before connecting the water outlet hose to the sink drain, remove
the plastic plug B.
ANTI-FLOODING PROTECTION
Anti-flooding protection. To ensure floods do not occu , the dishwasher
is provided with a special system which blocks the water supply in
the event of anomalies or leaks from inside the appliance.
Some models are also equipped with the supplementary safety
device New Aqua Stop, which guarantees anti-flooding protectio
even in the event of a supply hose rupture.
Under no circumstances should the water inlet hose be cut as it
contains live electrical parts.
ELECTRICAL CONNECTION
WARNING: Under no circumstances should the water inlet
hose be cut as it contains live electrical parts.
Before inserting the plug into the electrical socket, make sure that:
• The socket is earth and complies with current regulations;
• The socket can withstand the maximum load of the applian-
ce as shown on the data plate located on the inside of the door
(see PRODUCT DESCRIPTION).
• The power supply voltage falls within the values indicated on
the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance.
If this is not the case, ask an authorised technician to replace the
plug (see AFTER-SALES SERVICE). Do not use extension ca-
bles or multiple sockets. Once the appliance has been installed,
the power supply cable and the electrical socket should be easily
accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, have it replaced by the
manufacturer or its authorised Technical Assistance Service in
order to prevent all potential hazards.
The Company shall not be held responsible for any incidents, if
these regulations are not observed.
POSITIONING AND LEVELLING
1.
2.
Position the dishwasher on a level sturdy floo . If the floor i
uneven, the front feet of the appliance may be adjusted until
it reaches a horizontal position. If the appliance is levelled
correctly, it will be more stable and much less likely to move or
cause vibrations and noise while it is operating.
Before recessing the dishwasher, stick the adhesive transparent
strip under the wooden shelf in order to protect it from any con-
densation which may form.
3.
4.
Place the dishwasher so that its sides or back panel are in
contact with the adjacent cabinets or the wall. This appliance
can also be recessed under a single worktop.
To adjust the height of the rear foot, turn the red hexagonal
bushing on the lower central part at the front of the dishwasher
using a hexagonal spanner with an opening of 8 mm. Turn the
spanner in a clockwise direction to increase the height and in
an anticlockwise direction to decrease it.
DIMENSIONS AND CAPACITY:
MIN 40 cm
MAX 80 cm
WATER SUPPLY cold or hot (max. 60°C)
WATER INTAKE 3/4”
POWER OF WATER
PRESSURE
0.05 ÷ 1 MPa (0.5 ÷ 10 bar)
7.25 – 145 psi
WIDTH 598 mm
HEIGHT 820 mm
DEPTH 555 mm
CAPACITY 13 standard place-settings
The outlet hose connection must be at a height ranging from 40 to
80 cm from the oor or surface where the dishwasher rests Before
connecting the water outlet hose to the sink drain, remove the plastic
plug B.
Anti-oodingprotection
Anti-ooding protection. To ensure oods do not occu, the
dishwasher is provided with a special system which blocks the water
supply in the event of anomalies or leaks from inside the appliance.
Some models are also equipped with the supplementary safety
device New Aqua Stop, which guarantees anti-ooding protectio
even in the event of a supply hose rupture.
Under no circumstances should the water inlet hose be cut as it
contains live electrical parts.
Electricalconnection
WARNING:Undernocircumstancesshouldthewaterinlet
hosebecutasitcontainsliveelectricalparts.
Before inserting the plug into the electrical socket, make sure that:
• The socket is earth and complies with current regulations;
• The socket can
INSTALLATION
ENGLISH
ATTENTION: If the appliance must be moved at any time, keep it
in an upright position; if absolutely necessary, it may be tilted onto
its back.
CONNECTING THE WATER SUPPLY
Adaptation of the water supply for installation should only be
performed by a qualified technician
The water inlet and outlet hoses may be positioned towards the
right or the left in order to achieve the best possible installation.
Make sure the dishwasher does not bend or squash the hoses.
CONNECTING THE WATER INLET HOSE
• Run the water until it is perfectly clear.
• Screw the inlet hose tightly into position and turn on the tap.
If the inlet hose is not long enough, contact a specialist store or
an authorised technician.
The water pressure must be within the values indicated in the
Technical Data table - otherwise the dishwasher may be function
properly.
Make sure the hose is not bent or compressed.
SPECIFICATIONS FOR THE CONNECTION OF THE WATER
SUPPLY HOSE:
CONNECTING THE WATER OUTLET HOSE
Connect the outlet hose to a drain duct with a minimum diameter
of 2 cm A.
The outlet hose connection must be at a height ranging from
40 to 80 cm from the floor or surface where the dishwasher rests
Before connecting the water outlet hose to the sink drain, remove
the plastic plug B.
ANTI-FLOODING PROTECTION
Anti-flooding protection. To ensure floods do not occu , the dishwasher
is provided with a special system which blocks the water supply in
the event of anomalies or leaks from inside the appliance.
Some models are also equipped with the supplementary safety
device New Aqua Stop, which guarantees anti-flooding protectio
even in the event of a supply hose rupture.
Under no circumstances should the water inlet hose be cut as it
contains live electrical parts.
ELECTRICAL CONNECTION
WARNING: Under no circumstances should the water inlet
hose be cut as it contains live electrical parts.
Before inserting the plug into the electrical socket, make sure that:
• The socket is earth and complies with current regulations;
• The socket can
withstand the maximum load of the applian-
ce as shown on the data plate located on the inside of the door
(see PRODUCT DESCRIPTION).
• The power supply voltage falls within the values indicated on
the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance.
If this is not the case, ask an authorised technician to replace the
plug (see AFTER-SALES SERVICE). Do not use extension ca-
bles or multiple sockets. Once the appliance has been installed,
the power supply cable and the electrical socket should be easily
accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, have it replaced by the
manufacturer or its authorised Technical Assistance Service in
order to prevent all potential hazards.
The Company shall not be held responsible for any incidents, if
these regulations are not observed.
POSITIONING AND LEVELLING
1.
2.
Position the dishwasher on a level sturdy floo . If the floor i
uneven, the front feet of the appliance may be adjusted until
it reaches a horizontal position. If the appliance is levelled
correctly, it will be more stable and much less likely to move or
cause vibrations and noise while it is operating.
Before recessing the dishwasher, stick the adhesive transparent
strip under the wooden shelf in order to protect it from any con-
densation which may form.
3.
4.
Place the dishwasher so that its sides or back panel are in
contact with the adjacent cabinets or the wall. This appliance
can also be recessed under a single worktop.
To adjust the height of the rear foot, turn the red hexagonal
bushing on the lower central part at the front of the dishwasher
using a hexagonal spanner with an opening of 8 mm. Turn the
spanner in a clockwise direction to increase the height and in
an anticlockwise direction to decrease it.
DIMENSIONS AND CAPACITY:
MIN 40 cm
MAX 80 cm
WATER SUPPLY cold or hot (max. 60°C)
WATER INTAKE 3/4”
POWER OF WATER
PRESSURE
0.05 ÷ 1 MPa (0.5 ÷ 10 bar)
7.25 – 145 psi
WIDTH 598 mm
HEIGHT 820 mm
DEPTH 555 mm
CAPACITY 13 standard place-settings
withstand the maximum load of the appliance
as shown on the data plate located on the inside of the door (see
PRODUCT DESCRIPTION).
• The power supply voltage falls within the values indicated on the
data plate on the inside of the door.
• The socket is compatible with the plug of the appliance.
If this is not the case, ask an authorised technician to replace the plug
(see AFTER-SALES SERVICE). Do not use extension cables or multiple
sockets. Once the appliance has been installed, the power supply
cable and the electrical socket should be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, have it replaced by the
manufacturer or its authorised Technical Assistance Service in order
to prevent all potential hazards.
The Company shall not be held responsible for any incidents, if these
regulations are not observed.
Positioningandlevelling
1. Position the dishwasher on a level sturdy oo . If the oor i
uneven, the front feet of the appliance may be adjusted until it
reaches a horizontal position. If the appliance is levelled correctly,
it will be more stable and much less likely to move or cause
vibrations and noise while it is operating.
2. Before recessing the dishwasher, stick the adhesive transparent
strip under the wooden shelf in order to protect it from any
condensation which may form.
3. Place the dishwasher so that its sides or back panel are in contact
with the adjacent cabinets or the wall. This appliance can also be
recessed under a single worktop.
4. To adjust the height of the rear foot, turn the red hexagonal
bushing on the lower central part at the front of the dishwasher
using a hexagonal spanner with an opening of 8 mm. Turn the
spanner in a clockwise direction to increase the height and in an
anticlockwise direction to decrease it.
Dimensionsandcapacity:
Width 448 mm
Height 820 mm
Depth 555 mm
Capacity 10 standard place-settings

IKEA finputsad Specifications

General

Brand	IKEA
Model	finputsad
Category	Dishwasher
Language	English
