IKEA IBD550PRS02 User Manual

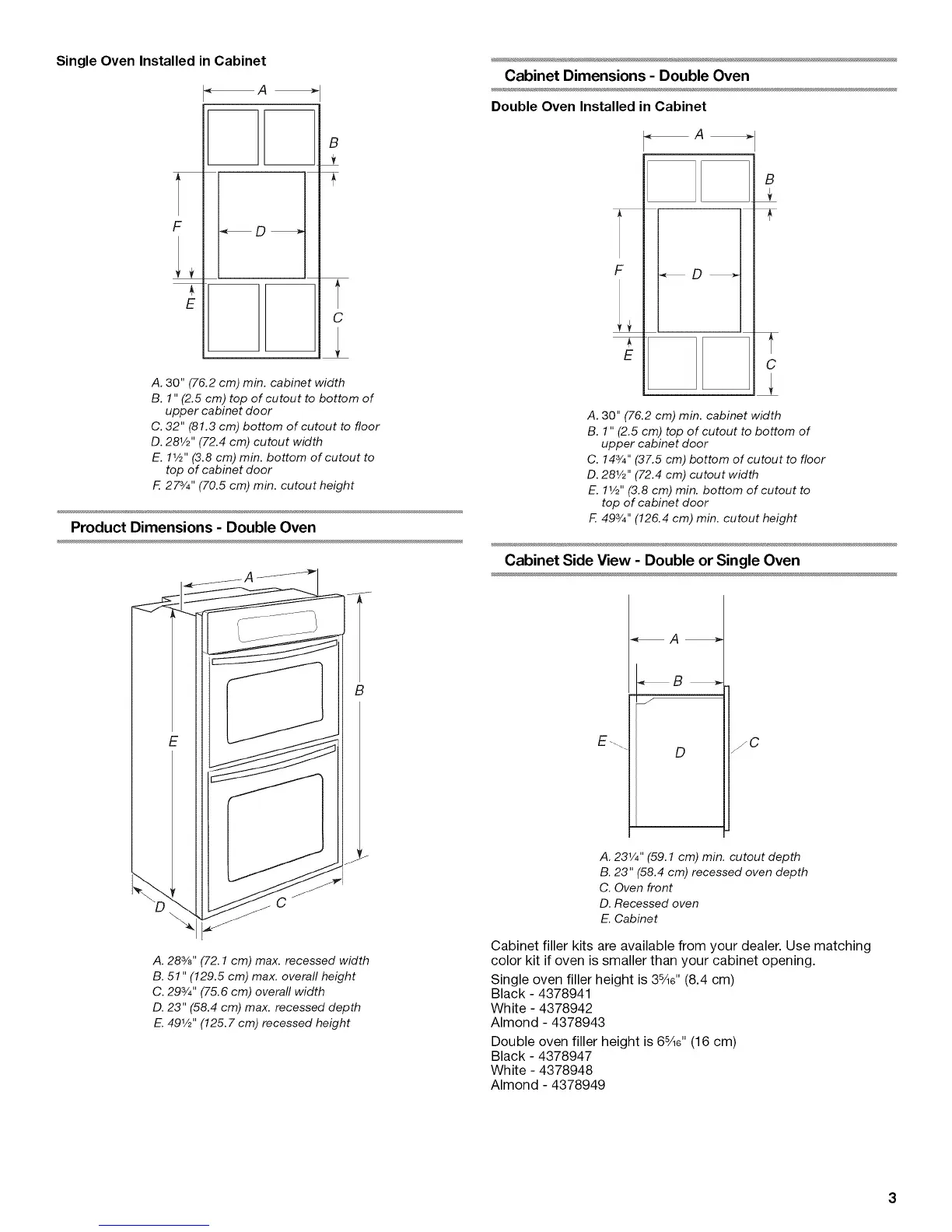

Single Oven Installed in Cabinet
_A
F
E
_D_
B
t
C
A. 30" (76.2 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of
upper cabinet door
C. 32" (81.3 cm) bottom of cutout to floor
D. 281/2"(72.4 cm) cutout width
E. 11/2'' (3.8 cm) min. bottom of cutout to
top of cabinet door
F. 273/4 '' (70.5 cm) min. cutout height
Product Dimensions - Double Oven
B
A. 28%" (72.1 cm) max. recessed width
B. 51" (129.5 cm) max. overall height
C. 293/4'' (75.6 cm) overall width
D. 23" (58.4 cm) max. recessed depth
E. 491/2'' (125.7 cm) recessed height
Cabinet Dimensions - Double Oven
Double Oven Installed in Cabinet
F
E
_A
B
C
A. 30" (76.2 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of
upper cabinet door
C. 143/4'' (37.5 cm) bottom of cutout to floor
D. 281/2"(72.4 cm) cutout width
E. 11/2'' (3.8 cm) min. bottom of cutout to
top of cabinet door
F. 493/4'' (126.4 cm) min. cutout height
Cabinet Side View - Double or Single Oven
E_
D
fC
A. 231/4'' (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
Cabinet filler kits are available from your dealer. Use matching
color kit if oven is smaller than your cabinet opening.
Single oven filler height is 35/16'' (8.4 cm)
Black - 4378941
White - 4378942
Almond - 4378943
Double oven filler height is 6s/16'' (16 cm)
Black - 4378947
White - 4378948
Almond - 4378949
