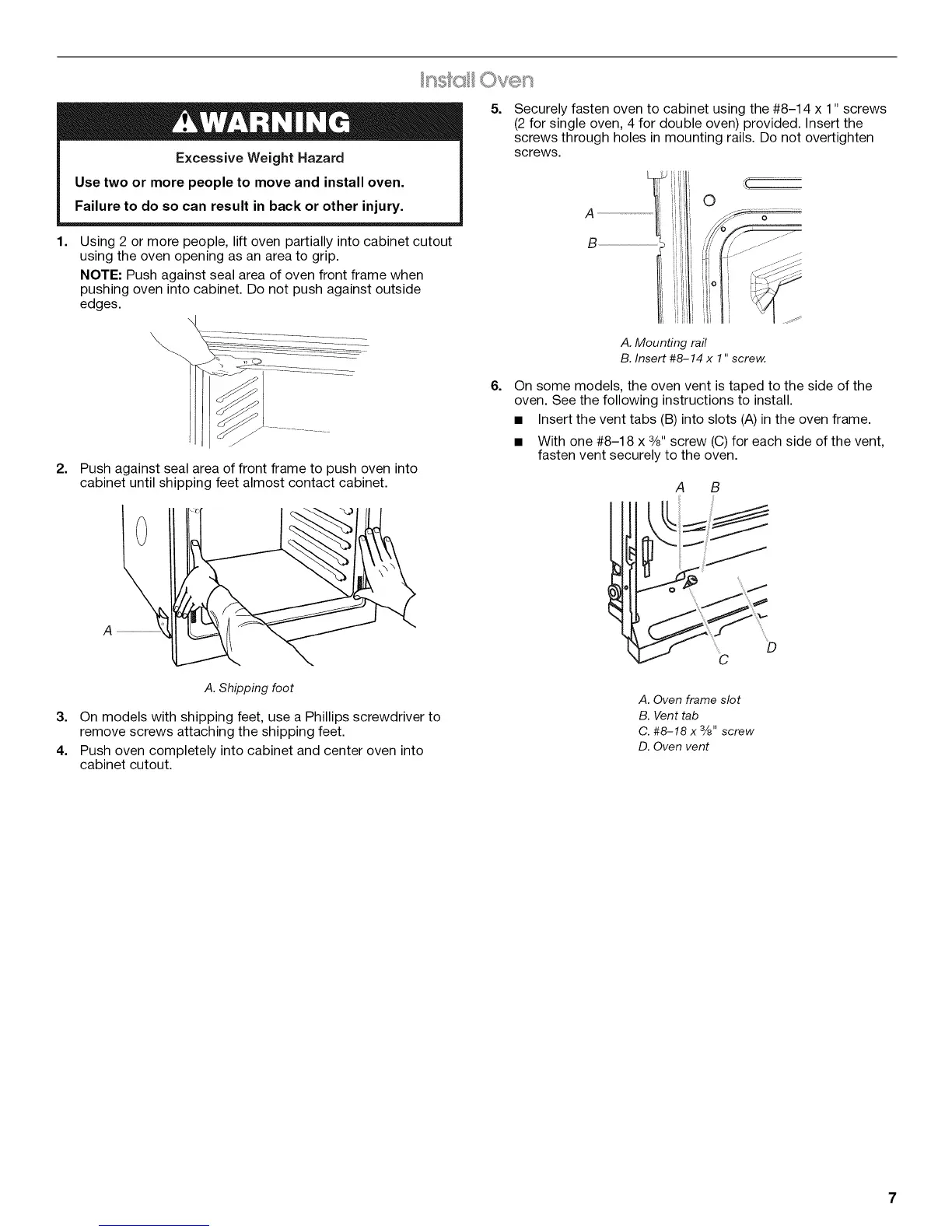

Excessive Weight Hazard
Use two or more people to move and install oven.
Failure to do so can result in back or other injury.
1=
2=
Using 2 or more people, lift oven partially into cabinet cutout
using the oven opening as an area to grip.
NOTE: Push against seal area of oven front frame when
pushing oven into cabinet. Do not push against outside
edges.
\
Push against seal area of front frame to push oven into
cabinet until shipping feet almost contact cabinet.
\
A
5=
Securely fasten oven to cabinet using the #8-14 x 1" screws
(2 for single oven, 4 for double oven) provided. Insert the
screws through holes in mounting rails. Do not overtighten
screws.
B
A. Mounting rail
B. Insert #8-14 x 1" screw.
6=
On some models, the oven vent is taped to the side of the
oven. See the following instructions to install.
• Insert the vent tabs (B) into slots (A) in the oven frame.
• With one #8-18 x 3/8"screw (C) for each side of the vent,
fasten vent securely to the oven.
A B
i!¸ ii ¸
\
\
D
C
A. Shipping foot
3. On models with shipping feet, use a Phillips screwdriver to
remove screws attaching the shipping feet.
4. Push oven completely into cabinet and center oven into
cabinet cutout.
A. Oven frame slot
B. Vent tab
C. #8-18 x 3/8" screw
D. Oven vent
