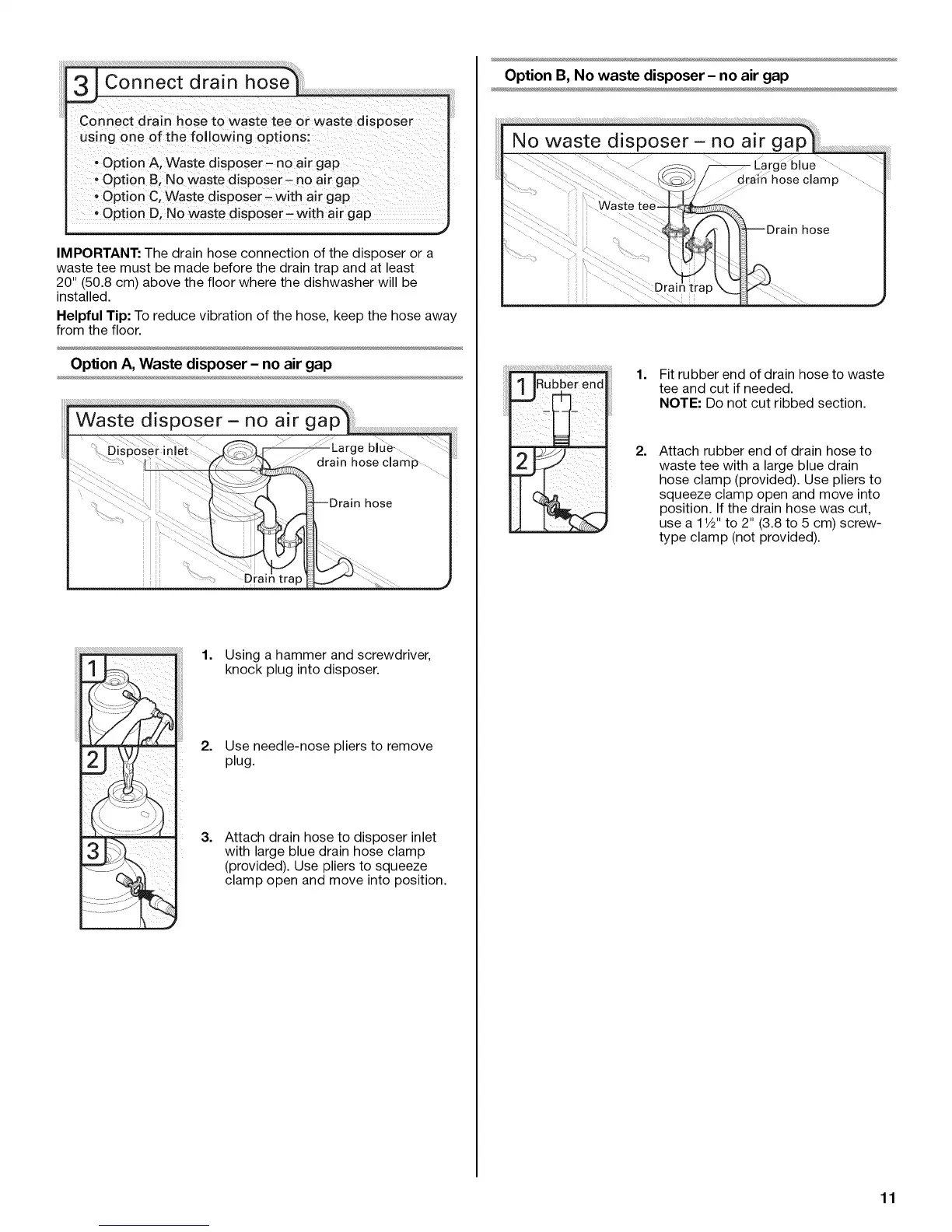

Connect drain hose to waste tee or waste disposer
using one of the following options:
, Option A, Waste disposer- no air gap
, Option B, No waste disposer- no air gap
Option C, Waste disposer- with air gap
Option D, [/o waste disposer-with air gap
IMPORTANT: The drain hose connection of the disposer or a
waste tee must be made before the drain trap and at least
20" (50.8 cm) above the floor where the dishwasher will be
installed.
Helpful Tip: To reduce vibration of the hose, keep the hose away
from the floor.
Option A, Waste disposer - no air gap
Drai
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3.
Attach drain hose to disposer inlet
with large blue drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
Option B, No waste disposer - no air gap
1. Fit rubber end of drain hose to waste
tee and cut if needed.
NOTE: Do not cut ribbed section.
2. Attach rubber end of drain hose to
waste tee with a large blue drain
hose clamp (provided). Use pliers to
squeeze clamp open and move into
position. If the drain hose was cut,
use a 1V2" to 2" (3.8 to 5 cm) screw-
type clamp (not provided).
11
