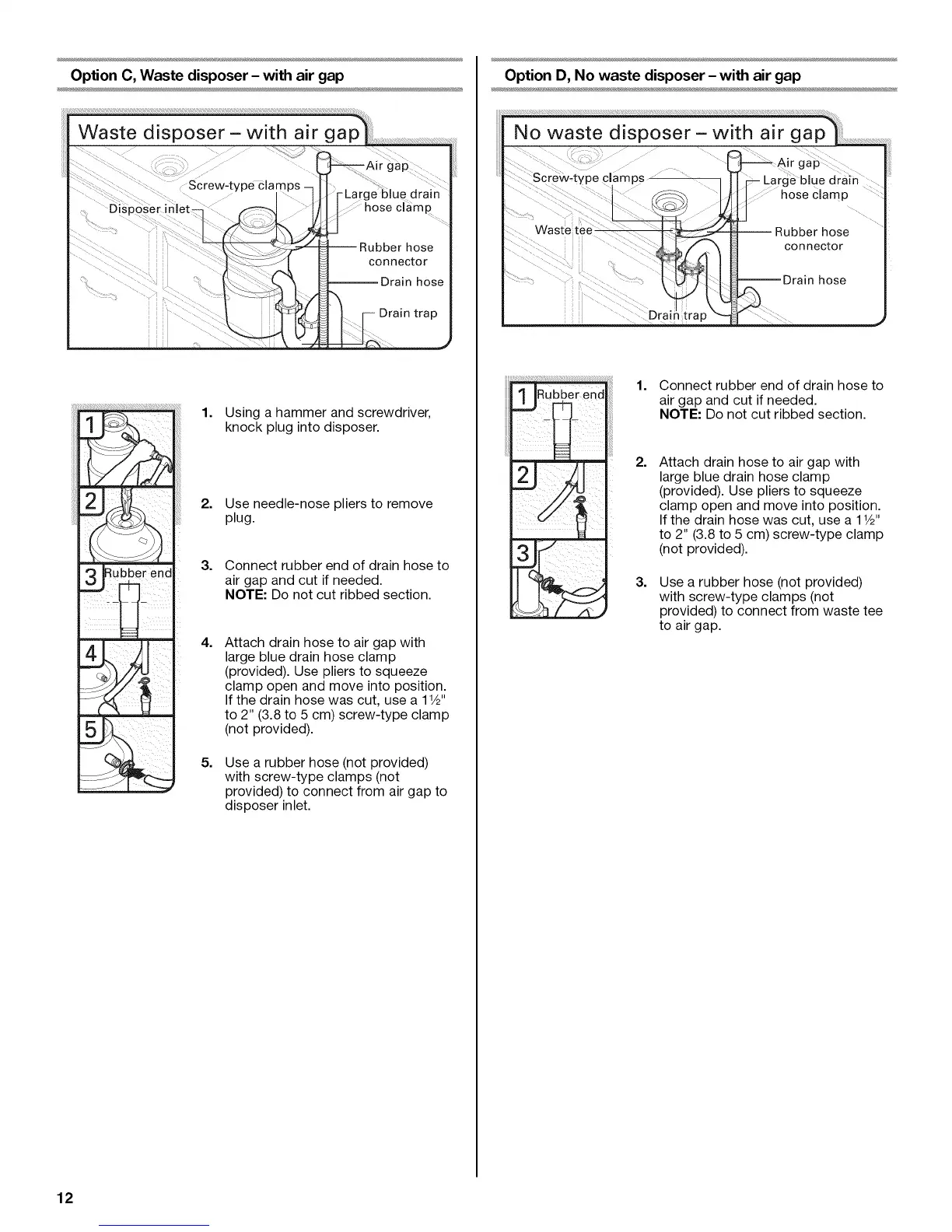

Option C, Waste disposer - with air gap
Drain trap
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
4=
5=
Attach drain hose to air gap with
large blue drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
If the drain hose was cut, use a 1W'
to 2' (3.8 to 5 cm) screw-type clamp
(not provided).
Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from air gap to
disposer inlet.
Option D, No waste disposer - with air gap
1. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
2=
3=
Attach drain hose to air gap with
large blue drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
If the drain hose was cut, use a 1W'
to 2' (3.8 to 5 cm) screw-type clamp
(not provided).
Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from waste tee
to air gap.
12
