9. Turn on the gas supply. Use soapy
water to check for leaks. Each hotplate
valve should be turned on, one at a
time, and the injector hole blanked off
for several seconds.
10. The operation of the regulator can be
confirmed by connecting a manometer
to the pressure test point located on the
side of the regulator body adjacent to
the outlet.
While the appliance operates check the
outlet pressure:
• when all burners of the appliance
operate at maximum,
• when the smallest burner of the
appliance operates at minimum.
The outlet pressure should not
vary from the nominal outlet
pressure of 2.60kPa by more
than +/–0.52kPa.

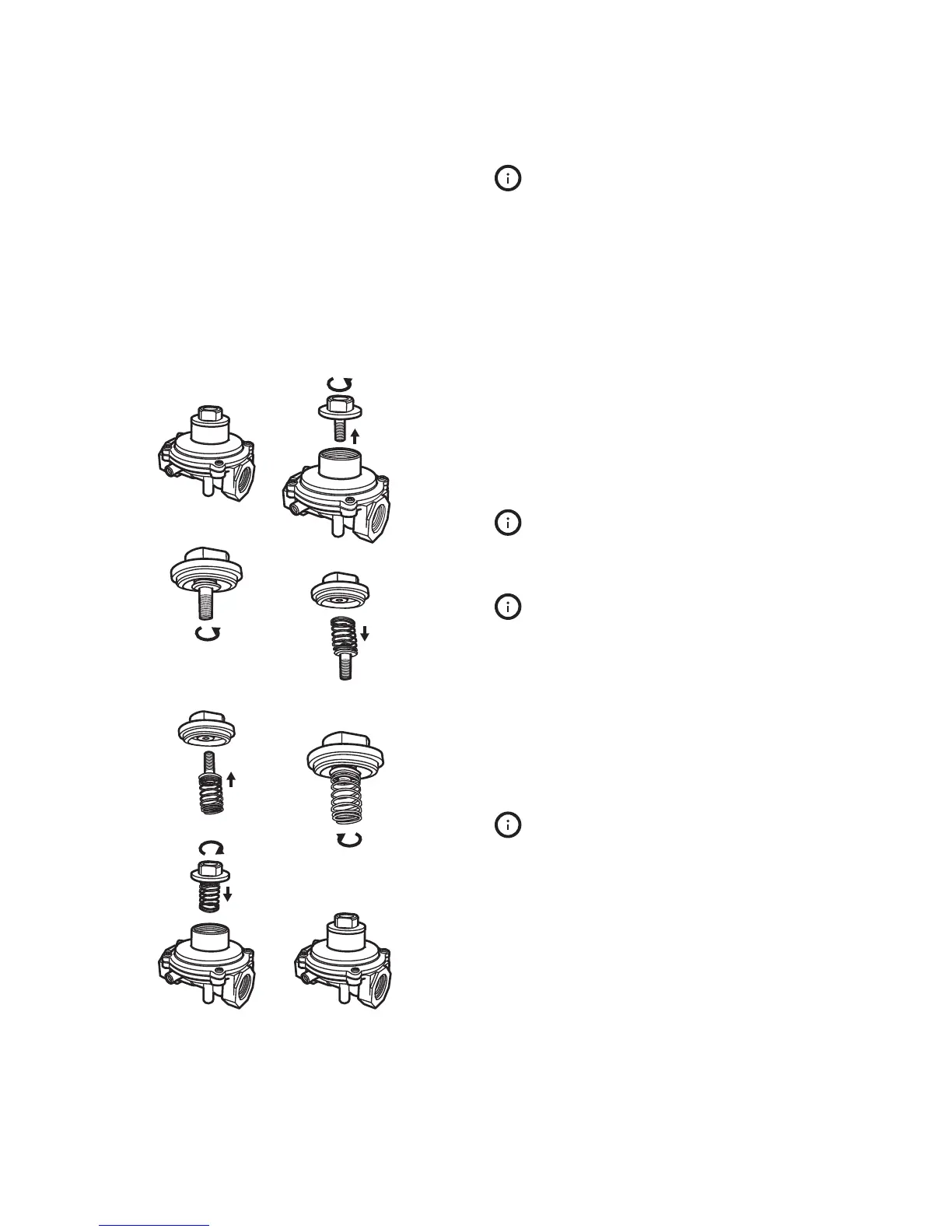

If the regulator works incorrectly:
• Check again the inlet and outlet
pressure, the inlet pressure must be 2.75
- 7kPa.
• Check if the insert is fitted correctly.
• Check if the turret screw is fully screwed
down.
• Check if the inlet and outlet is orientated
correctly the arrow on the base of the
regulator indicates the direction of gas
flow.
If the regulator still does not work
correctly contact the After Sales
Service.
Place the label with relevant
information for new type of gas
close to the supply pipe before
sealing the appliance. If the
appliance is already sealed
please stick it directly on the user
manual booklet, after Technical
data chapter, and close to the
rating plate drawing.
You can find this label in
package supplied with
appliance.
