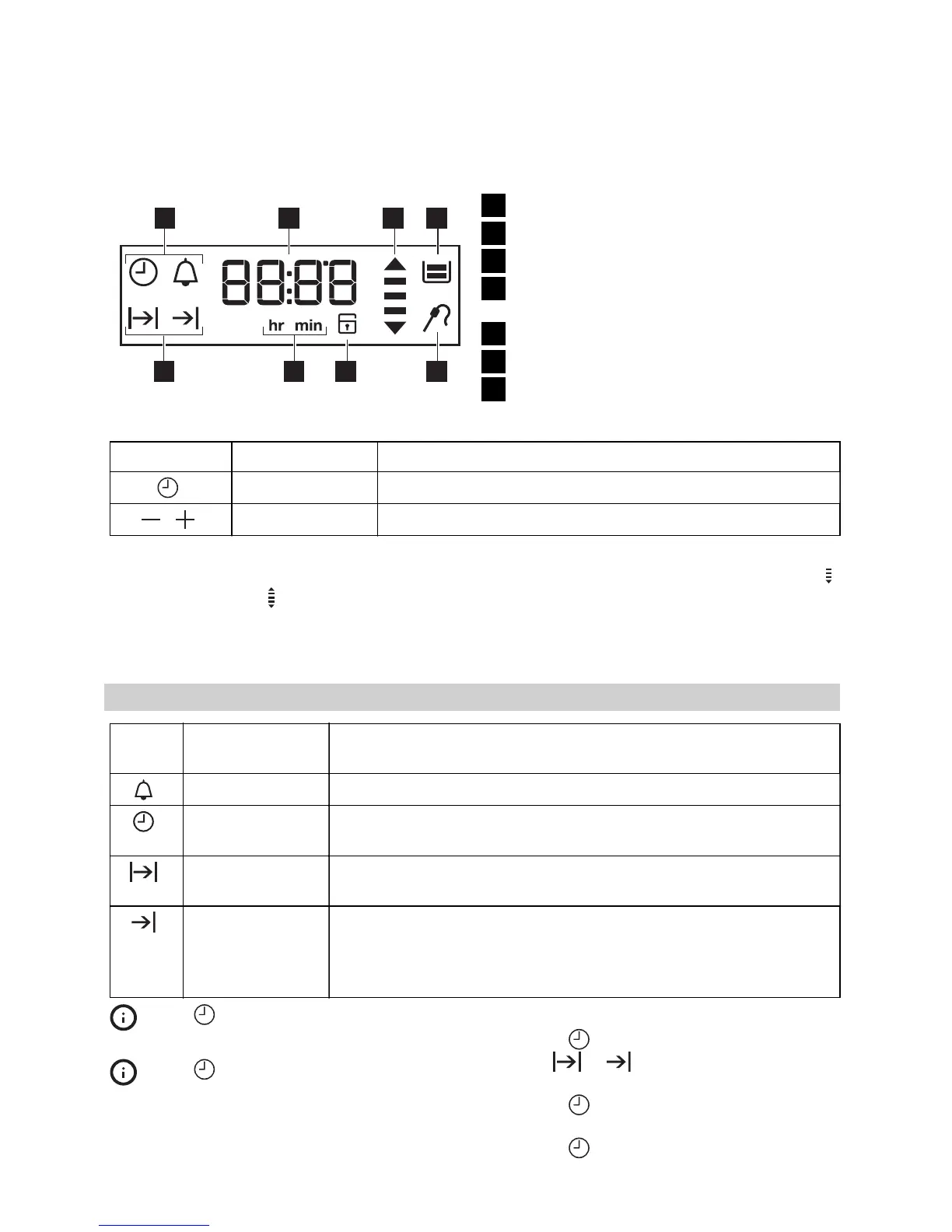

IKEA RAFFINERAD User Guide

Display
17 2 3
4567
1
Time and temperature
2
Heat-up and residual heat indicator
3
Water tank (selected models only)
4
Core temperature sensor (selected
models only)
5
Door lock (selected models only)
6
Hours / minutes
7
Clock functions
Buttons
Button Function Description
Clock To set a clock function.
,
Minus, plus To set the time.
Heat-up and residual heat indicator
When you activate an oven function, the
bars in the display
come on one by one.
The bars show that the oven temperature
increases or decreases.
When you deactivate the appliance, the
display shows the residual heat indicator
if the temperature in the oven is more than
40 °C. Turn the temperature knob left or
right to show the oven temperature on the
display.
Clock functions
Sym-
bol
Function Description
Minute Minder To set a countdown time.
Time of day To set, change or check the time of day. Refer to "Setting the
time of day".
Duration To set how long the appliance must operate. First set an oven
function before you set this function.
End To set when the appliance must be deactivated. First set an
oven function before you set this function. You can use Dura-
tion and End at the same time (Time Delay) to set the time
when the appliance must be activated and then deactivated.
Press again and again to change
the clock function.
Press
to confirm the settings of the
clock functions, or wait 5 seconds for
the setting to be confirmed automatically.
Setting the Duration or End function
1.
Press
again and again until the sym-
bol
or flashes in the display.
2. Press + or - to set the minutes.
3.
Press
to confirm.
4. Press + or - to set the hour.
5.
Press
to confirm.
ENGLISH 10

IKEA RAFFINERAD Specifications

General

Energy class	A
Color	Stainless steel
Voltage	220-240V
Installation type	Built-in
Volume	72 liters
Functions	Grill, Defrosting function
Oven features	Child lock
Cleaning	Catalytic
Frequency	50 Hz
