IKEA RAFFINERAD User Guide

Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the appli-
ance.
Installation
Warning! Refer to the Safety chapters.
Refer to the Assembly Instructions for
the installation.
Electrical installation
Warning! Only a qualified person must
do the electrical installation.
The manufacturer is not responsible if
you do not follow the safety precau-
tions from the chapter "Safety Information".
This appliance is only supplied with a main
cable.
Cable
Cable types applicable for installation or
replacement: H07 RN-F, H05 RN-F, H05
RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-
F.
For the section of the cable refer to the total
power (on the rating plate) and to the ta-
ble:
Total power Section of the cable
maximum 1380
W
3 x 0.75 mm²
maximum 2300
W
3 x 1 mm²
maximum 3680
W
3 x 1.5 mm²
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral ca-
bles (blue and brown cables).

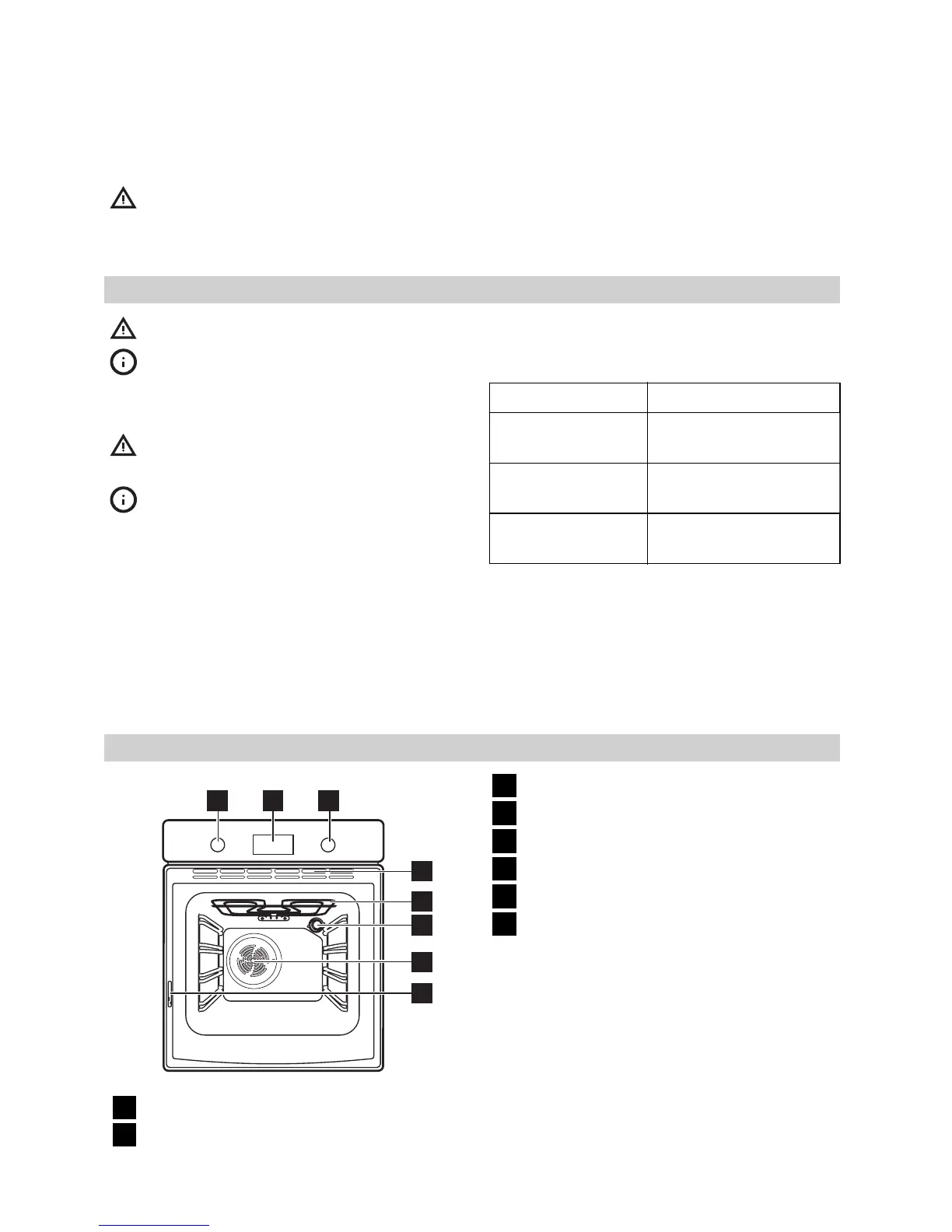

Product description
1
2
3
5
4
6
8
7
1
Knob for the oven functions
2
Electronic programmer
3
Knob for the temperature
4
Ventilation openings
5
Grill
6
Oven lamp
7
Fan
8
Rating plate
Oven accessories
• Wire shelf x 1
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
• Grill- / Roasting pan x 1
To bake and roast or as pan to collect
fat.
• Telescopic runners x 2 sets
For shelves and trays.
ENGLISH 7

IKEA RAFFINERAD Specifications

General

Energy class	A
Color	Stainless steel
Voltage	220-240V
Installation type	Built-in
Volume	72 liters
Functions	Grill, Defrosting function
Oven features	Child lock
Cleaning	Catalytic
Frequency	50 Hz
