Marking key measurements

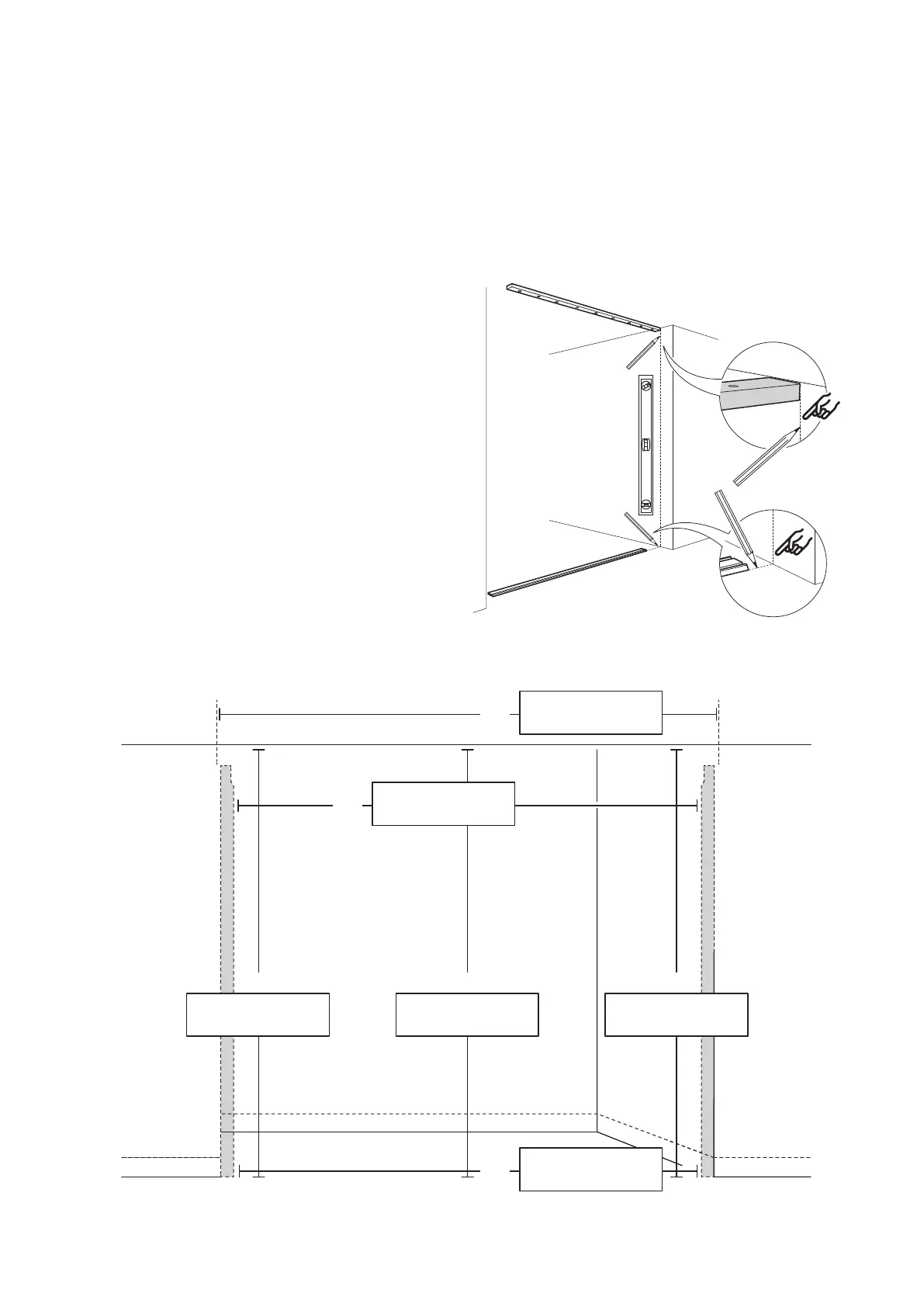

Mark with a line all around the opening where you
are going to place the system. Mark the front of the
system as in the illustration to the right. A crosshair
laser is recommended to use.
Note! From the front of the storage solution to the
front of the track/rails, you need 100mm for a 2-track
solution and 140 mm for a 3-track solution.
Check if the oor or/and walls are uneven and need
to be adjusted. Measure the width (X1, X2, X3) after
adjustment.
X1 and X3 will be the same if stop bar isn’t used.
Measure the height (Y1, Y2, Y3) after adjustment.
_____________ mm
X1
X3
_____________ mm
X1
X3
_____________ mm
_____________ mm
X1Y2X1Y1 X1Y3
_____________ mm_____________ mm _____________ mm
X2
_____________ mm
