WARNING: All electrical connections must be carried out by
an authorised installer.
• Before making the connections, check that the rated voltage
of the appliance indicated on the respective rating plate
corresponds to the power supply voltage. The rating plate is
• Follow the connection diagram (located on the underside of
the hob).
• Only use original components supplied by the spare parts
service.
• The appliance is supplied with a connection cable.
• If damaged, replace the power supply cables with the
respective original spare cables. Please contact your local
IKEA store call centre.
Caution! Do not weld any of the cables!
13
Warning Strips
Warning strips show that specialist should do the connecting water, gas and electricity:
The electricity installation
specialist.
The gas installation specialist.
The water installation
specialist.
Electrical connection
• The wire connection has to be done by specialized
technician.
• This appliance has a Type “Y” attachment with a cable type
• Connection terminals are revealed when the connection box
cover is removed.
• Make sure the characteristics of the household electrical
system (voltage, maximum power and current) are
compatible with those of the appliance.
• Connect the appliance like shown in the diagram (in
accordance with the mains voltage and country standard
reference).

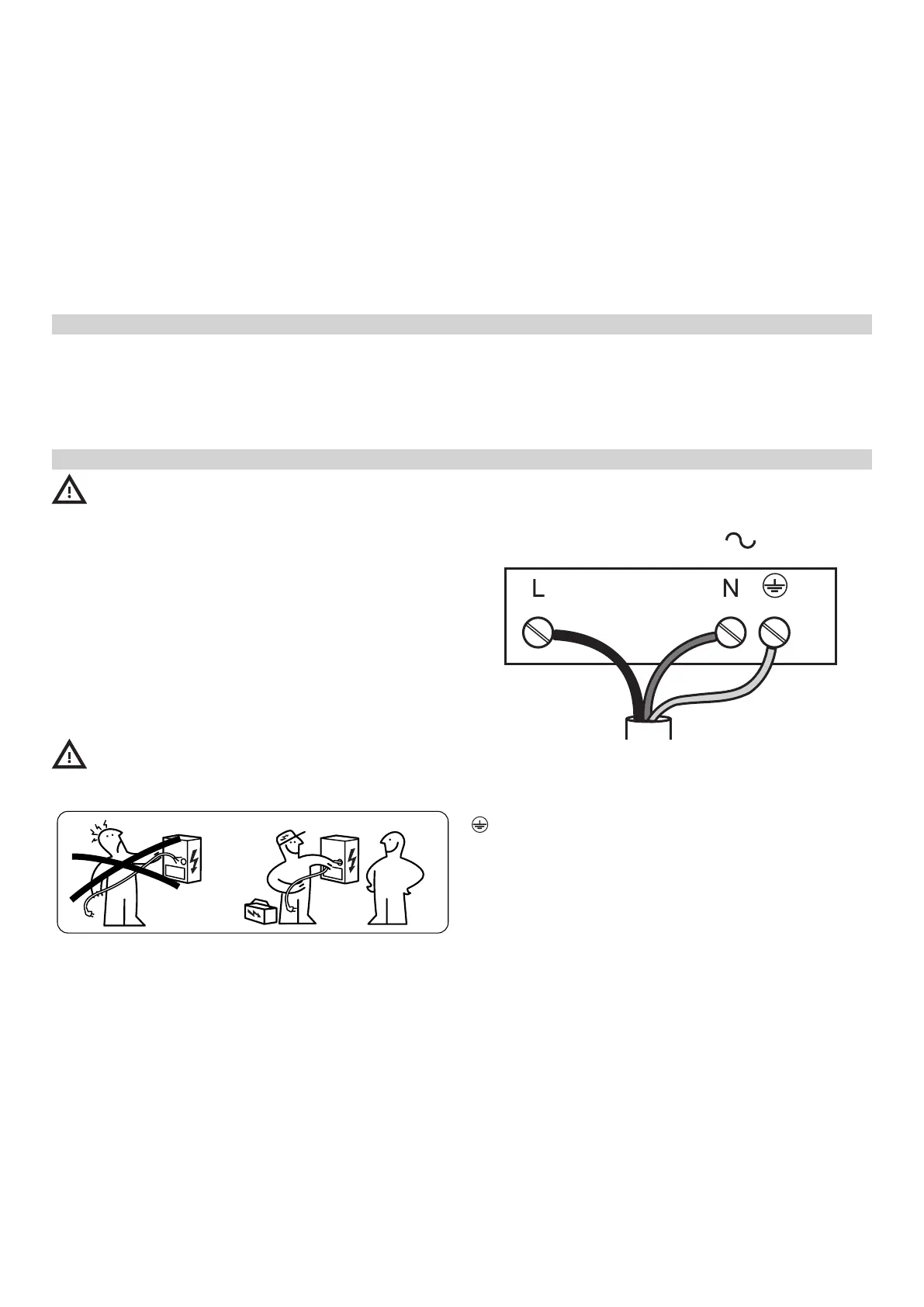

Connection diagram
230V 1N
L Brown
N Blue
Yellow / Green
Electrical connection
residue may damage the vitreous ceramic surface.
• Remove limescale using a small amount of limescale
remover solution, for example vinegar or lemon juice, once
the Hob has cooled down. Then clean again with a damp
cloth.
•
drop hard objects onto it. Do not drag pans or plates over
the surface.
• Do not use steam cleaning equipment.
