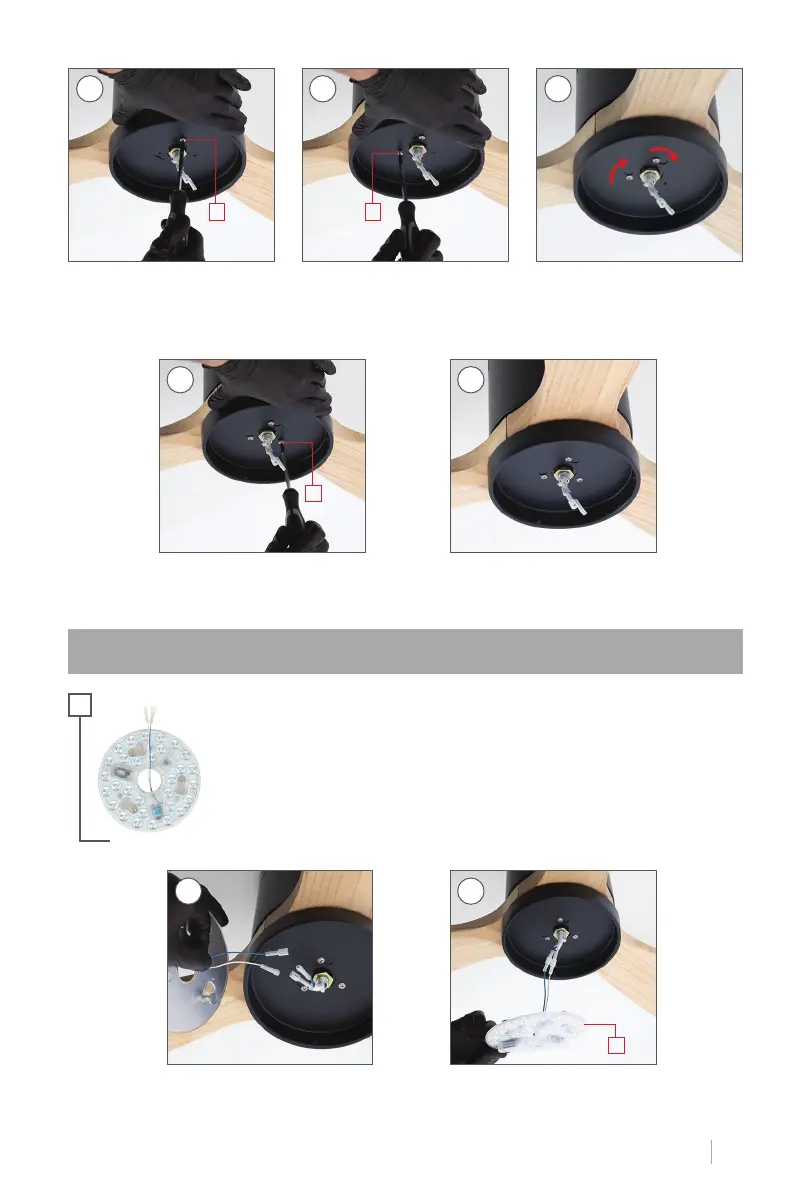

Screw in the screws L in the two large holes of piece H not too tight. Then turn piece
H clockwise so that it is perfectly seated and aligned with the third hole.
Connect piece D cables to those of the fan joining the connections, each with the
same color.
Once piece H is attached, screw the last screw L and tighten the rest so that the piece
is attached to the fan.
LL
L
D
STEP 7. LED PLATE CONNECTION
D
4
1
7
5
2
8
6
