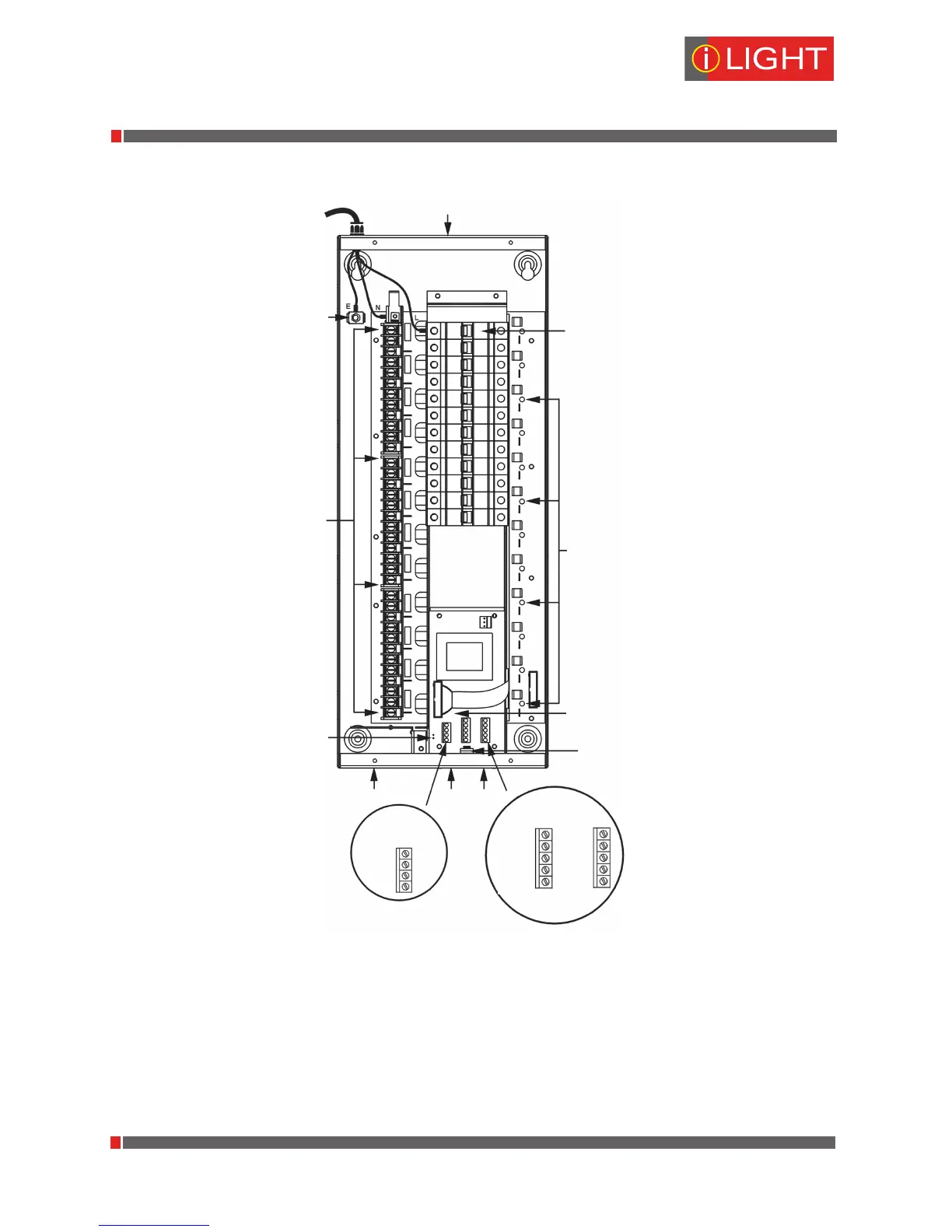

SCS1210S
Switched Relay Controllers
18 of 23
INTELLIGENT CONTROLS
Output Status LEDs
Option Switch
Load Terminals
Supply Earth Terminals
RJ12 iCANnet
Socket
Control Board
Supply & Load Cable entry knockouts
Control Cable entry knockouts
Service switches
and LEDs
Channel Circuit Breakers
MAINS IN
+12V
Orange Pair
CAN-H
Blue/White
CAN-L
Blue
0V
Green Pair
SHIELD
Brown Pair
RS485
RS485
oV
AL
+12V
Orange Pair
CAN-H
Blue/White
CAN-L
Blue
0V
Green Pair
SHIELD
Brown Pair
RS485 & Alarm
Terminals
iCANnet
Terminals
