Connections

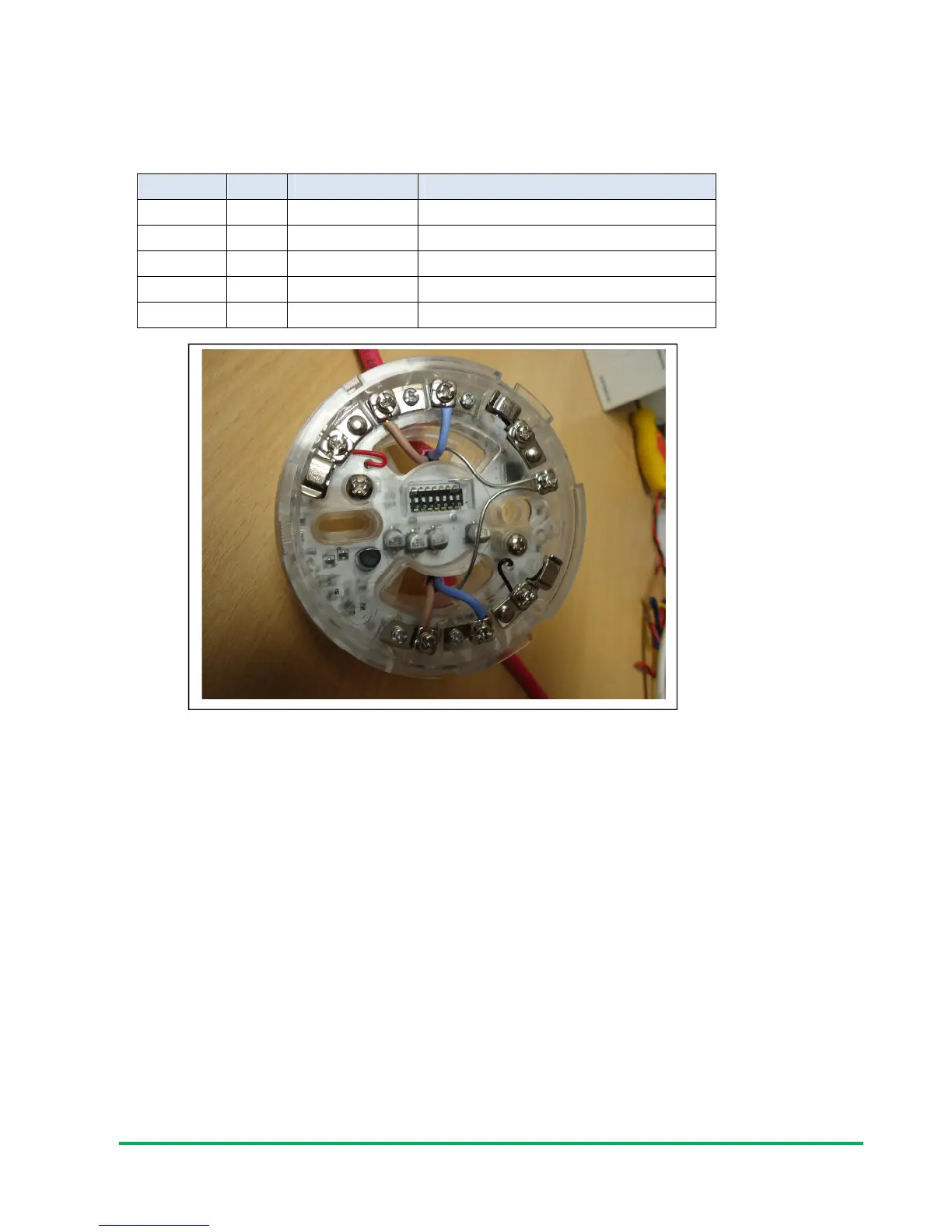

The SMARTWIRE sounder base
Terminal Label Wire Colour Description
1 + Brown Loop In +ve
2
-
Blue
Loop In
-
ve
3 Earth Green/Yellow Loop earth screen (In & Out)
4
-
Blue
Loop Out
–
ve
5 + Brown Loop Out +ve
Call Point
(See instructions supplied with call point)
5
2
3
4
1
